INTERFACE MANUAL

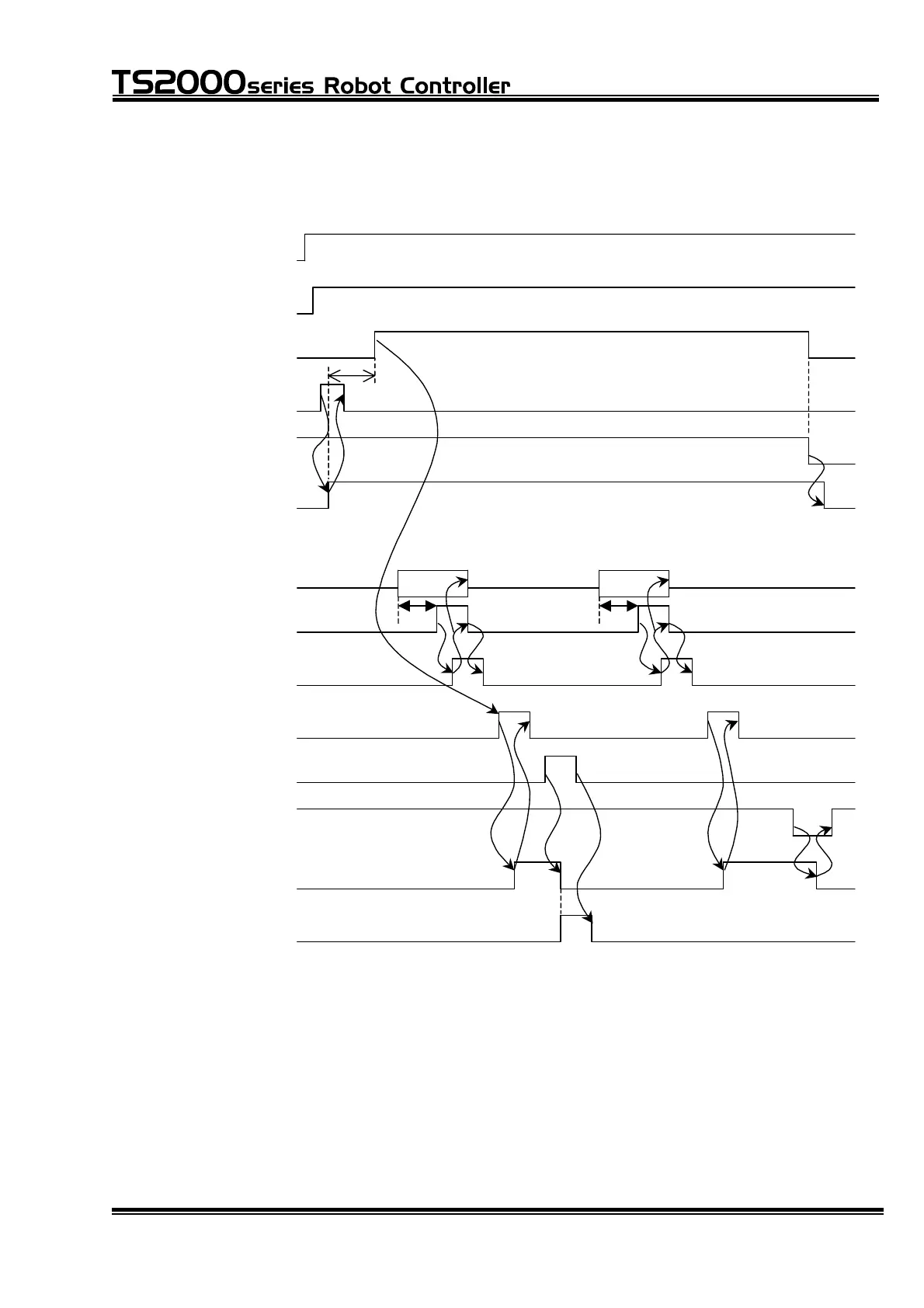

4.11 Example of Controller Operation, Using External Signals
(1) Normal operation sequence
POWER (I)
SYS_RDY (O)
SV_RDY (O)
A
pprox. 1 sec.
EX_SVON (I)
SVOFF (I)
SVST_A (O)
~SVST_B
Program selection (I)
STROBE (I)
A
CK (O)
RUN (I)
CYCLE (I)
STOP (I)
A
UTORUN (O)
CYC_END (O)
[2] [2]
[1]
[1] Set ON the RUN signal only after the SV_RDY signal is ON.
[2] Include a sufficient delay time before the program select signal starts between
the program select signal input and STROBE signal input. (200 msec or so)
STE 71367
– 83 –
