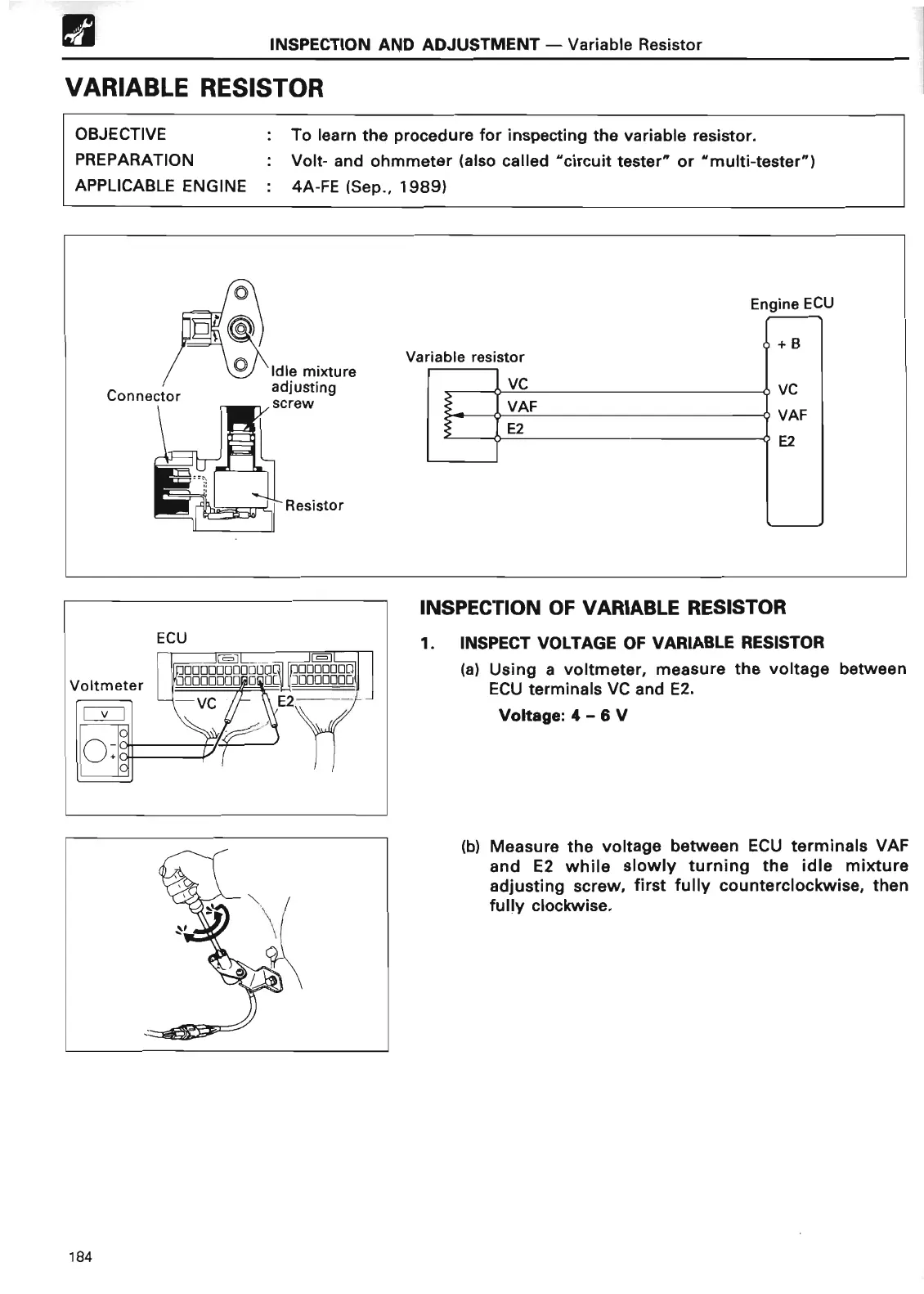

INSPECTION AND ADJUSTMENT

- Variable Resisto

VARIABLE RESISTO

OBJECTIVE

To learn the procedure for inspecting the variable resistor

PREPARATION

Volt- and ohmmeter (also called "circuit tester" or "multi-tester")

APPLICABLE

ENGINE

: 4A-FE (

Sep

., 1989

)

INSPECTION OF VARIABLE RESISTO

. INSPECT

VOLTAGE OF

VARIABLE RESISTO

(a) Using a voltmeter, measure the voltage between

ECU terminals VC and E2

Voltage

: 4 - 6

(b) Measure the voltage between ECU terminals VAF

and E2 while slowly turning the idle mixture

adjusting screw, first fully counterclockwise, then

fully clockwise
