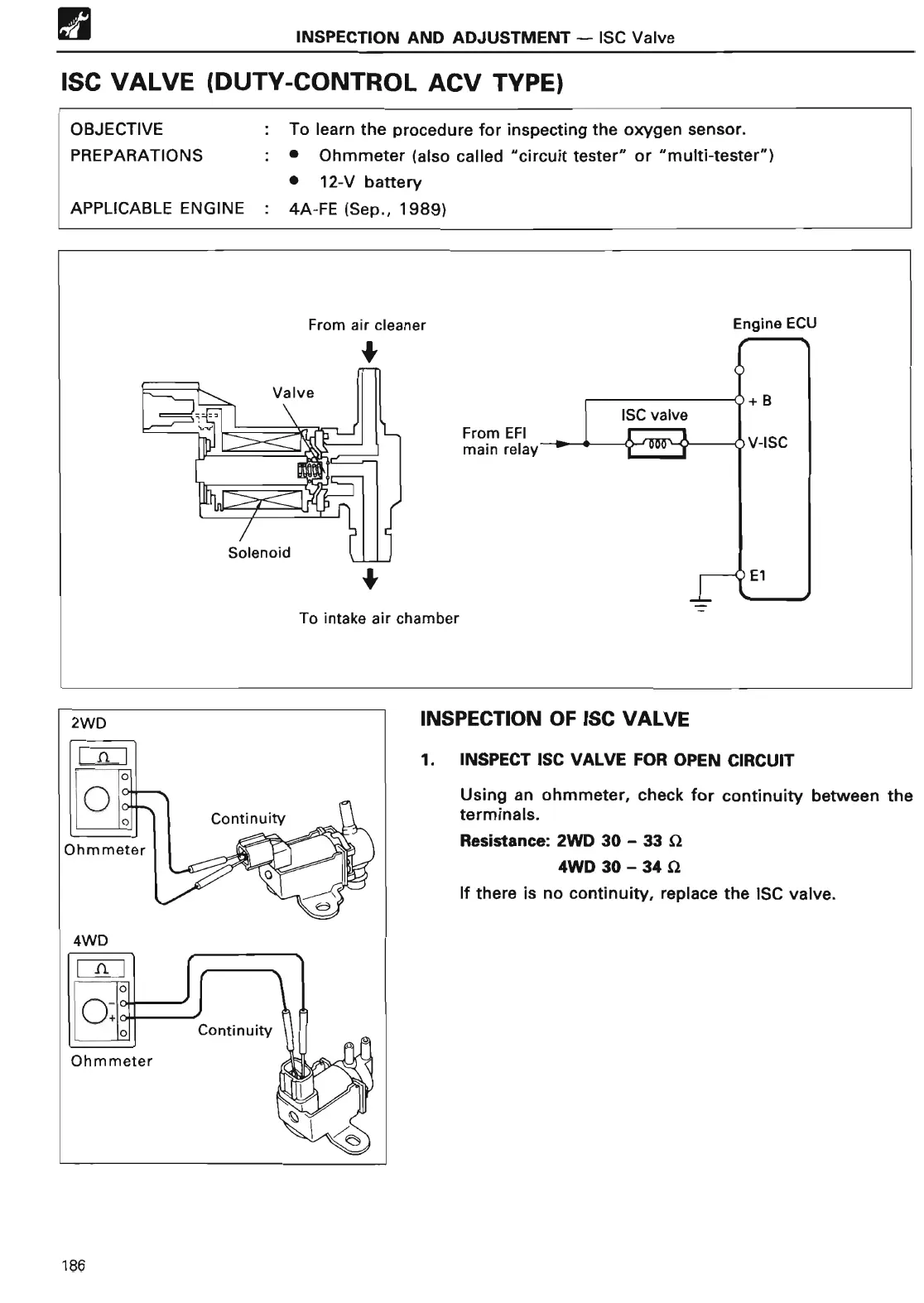

INSPECTION AND ADJUSTMENT

- ISC Valv

ISC VALVE (DUTY-CONTROL ACV TYPE

)

OBJECTIVE

To learn the procedure for inspecting the oxygen sensor

PREPARATIONS

• Ohmmeter

(

also called

circuit tester" or "multi-tester")

• 12-V ba

APPLICABLE ENGINE

: 4A-FE (

Sep

., 1989

)

INSPECTION

OF ISC VALV

. INSPECT ISC

VALVE FOR

OPEN CIRCUIT

Using an ohmmeter, check for continuity between the

terminals

Resistance

: 2WD 30 - 33 S2

4WD 30 - 34

If there is no continuity, replace the ISC valve

186
