Chapter 10 Network variable bindings
120 CNT-SVP01C-EN

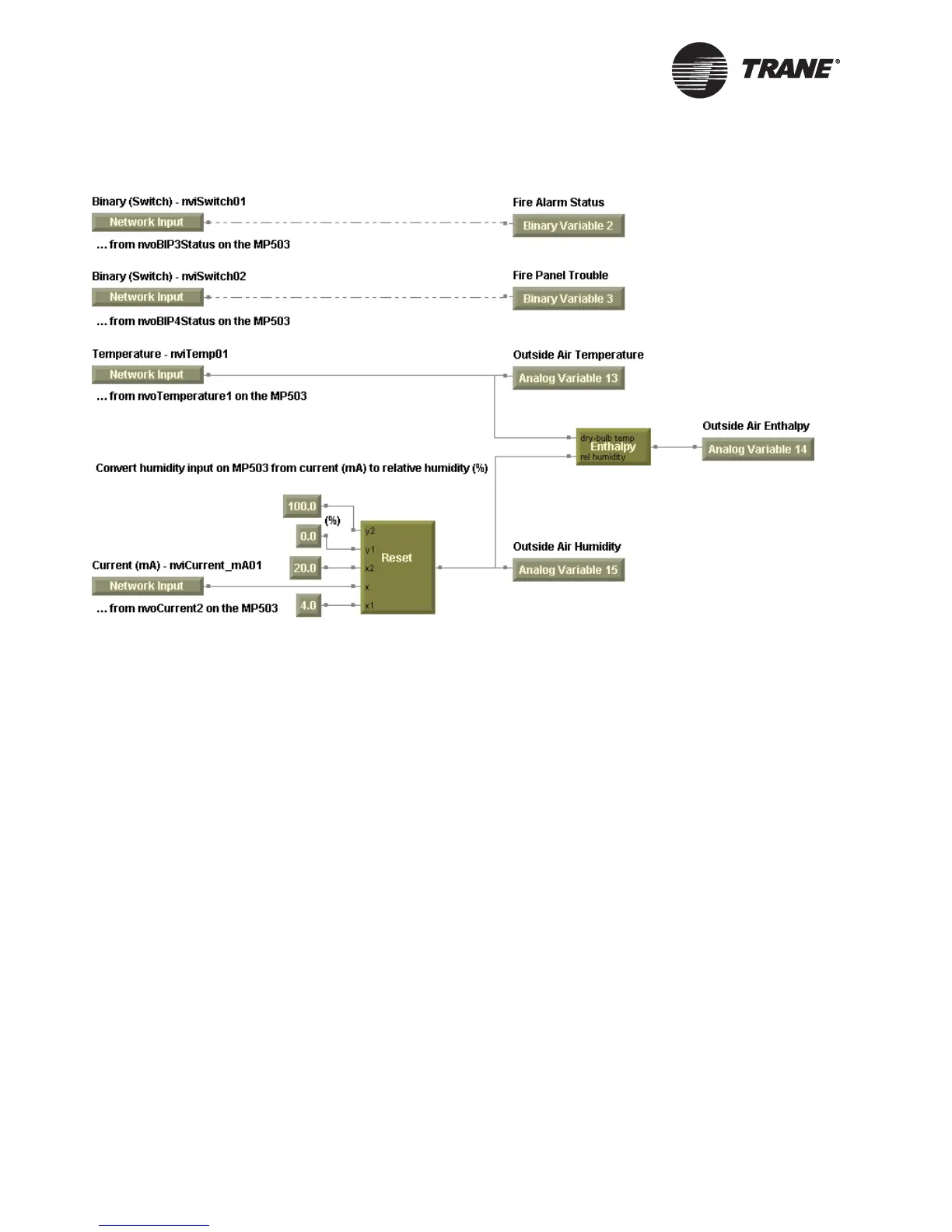

Figure 77. Program for example 1
Example 2: Display sensor readings from a Tracer
MP503 on two different Tracer MP581 operator displays
This example builds on example 1 and shows that bindings can be “one to
many.” In this example, a second Tracer MP581 controller is added to the
system described in example 1. The second Tracer MP581 also controls an
AHU. This AHU also requires the outside air enthalpy in order to control
its economizer. As in example 1, use bindings to allow the economizer con-
trol in the second Tracer MP581 to calculate outside air enthalpy.
Figure 78 on page 121 shows the Comm5 network for this example.
