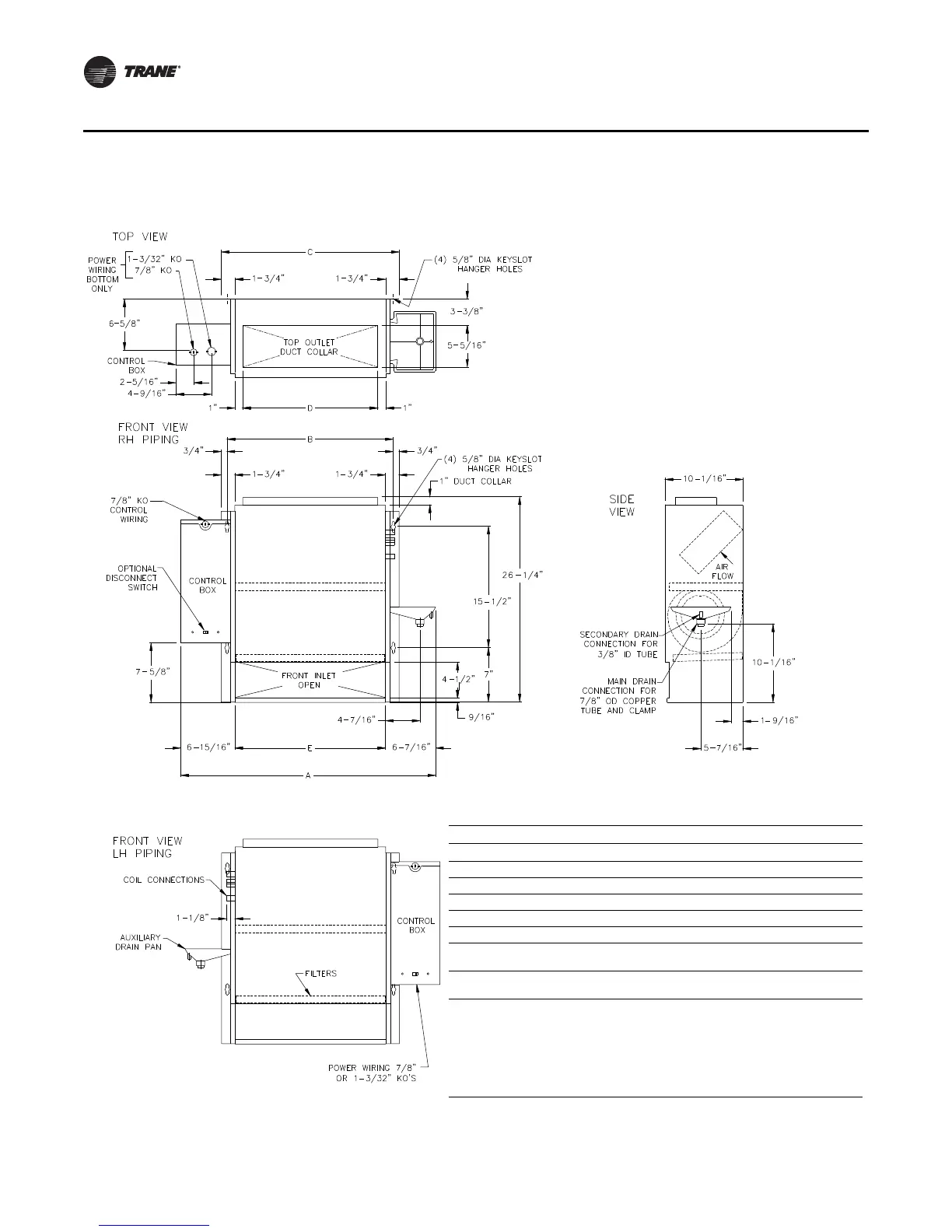

Vertical Concealed Unit Dimensions (in.) and Weights (lb)
Unit Size 02–03 04 06 08 10–12
A 32-11/16” 37-11/16” 47-3/16” 55-11/16” 74-11/16”
B 21-5/16” 26-5/16” 35-13/16” 44-5/16” 63-5/16”
C 22-13/16” 27-13/16” 37-5/16” 45-13/16” 64-13/16”
D 17-5/16” 22-5/16” 31-13/16” 40-5/16” 59-5/16”
E 19-5/16” 24-5/16” 33-13/16” 42-5/16” 61-5/16”
Operating
Weight
81 109 139 147 200
Shipping
Weight
68 96 123 131 182
Notes:
1. Coil connections are always on the drain pan side and opposite the control
box.
2. Coil connections are 5/8” O.D. sweat. See p. 30 and p. 31 for locations.
3. All duct collar dimensions are to the outside of the collar.
4. See p. 34 for dimensions for outside air openings.
5. Serviceability for some components within this unit may require panel or
drain pan removal.
