Trane UniTrane - Fresh Air Opening Locations, Horizontal Units-Models C, D, and E

UNT-SVX07B-EN 33
Dimensions and Weights

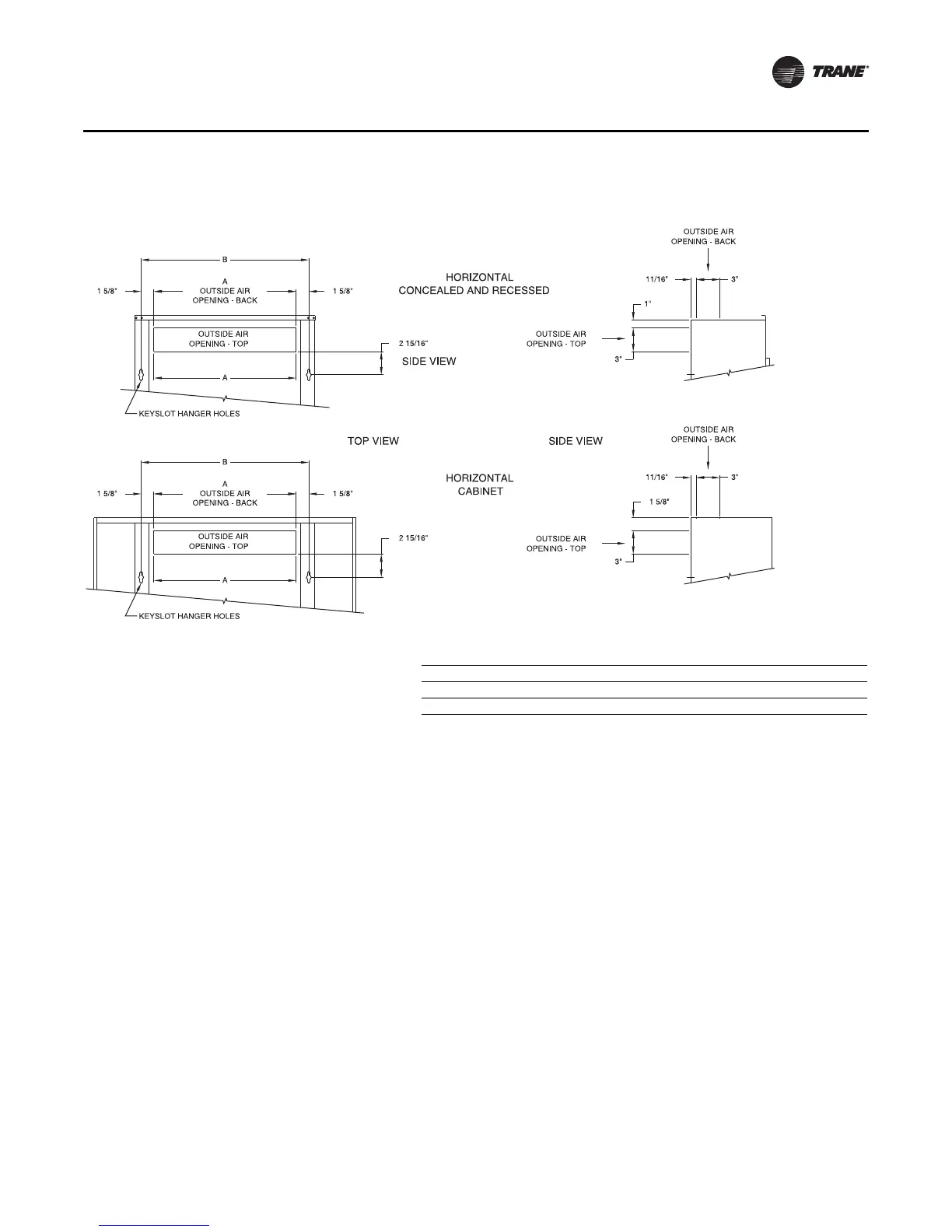

Fresh Air Opening Locations, Horizontal Units—Models C, D, and E
Fresh air opening dimensions, horizontal units
Unit Size 02–03 04 06 08 10–12
A 1’ 6” 1’ 11” 2’ 8-1/2” 3’ 5” 5’ 0”
B 1’ 9-5/16” 2’ 2-5/16” 2’ 11-13/16” 3’ 8-5/16” 5’ 3-5/16”
