Trane UniTrane Installation, Operation And Maintenance Instructions

26 UNT-SVX07B-EN
Dimensions and Weights

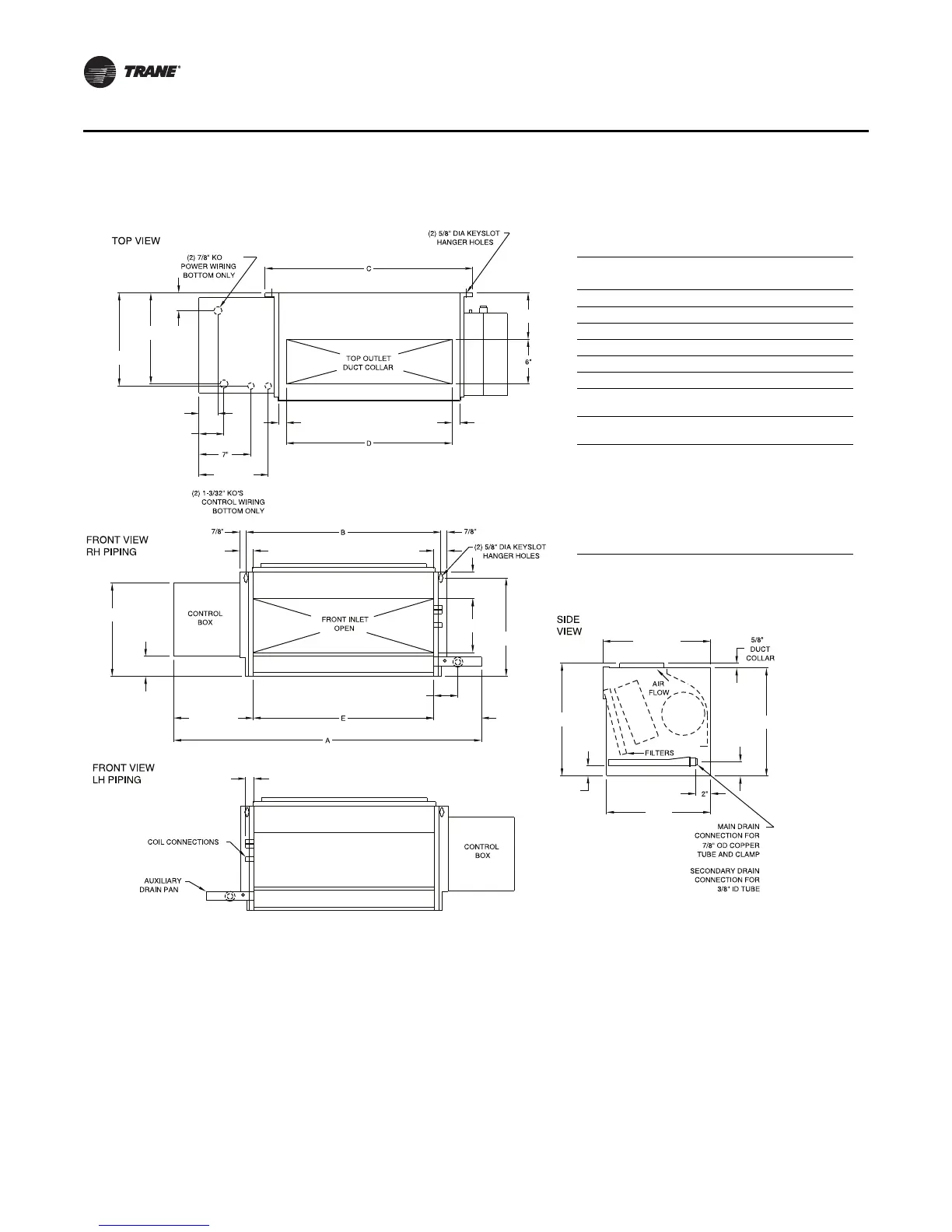

Low Vertical Concealed, Model K
12-9/16"
2-11/16"
10-11/16"
1-13/16"
1-1/8
"
1-13/16"
3-1/4"
6-7/16"
7-1/4"
3-9/16"
13-1/4"
14-1/4"
1-5/16"
14"
14-1/2"
1-15/16"
13-1/2"
9-5/16"
3-3/8"
2-9/16"
1-1/16"
2-3/8"
12-1/4"
12-1/2"
1-1/16"
6-1/4"
Low Vertical Concealed Unit Dimensions
(in.) and Weights (lb)
Unit Size 03 04 06
A 41-7/16” 50-15/16” 59-7/16”
B 26-1/4” 35-3/4” 44-1/4”
C 27-15/16” 36-13/16” 45-15/16”
D 22-5/16” 31-13/16” 40-5/16”
E 24-1/4” 339-3/4” 42-1/4”
Operating
Weight
109 139 147
Shipping
Weight
96 123 131
Notes:
1. Coil connections are always on the drain pan side
and opposite the control box.
2. Coil connections are 5/8” O.D. sweat.
3. All duct collar dimensions are to the outside of the
collar.
4. See p. 34 for dimensions for outside air openings.
5. Serviceability for some components within this
unit may require panel or drain pan removal.
