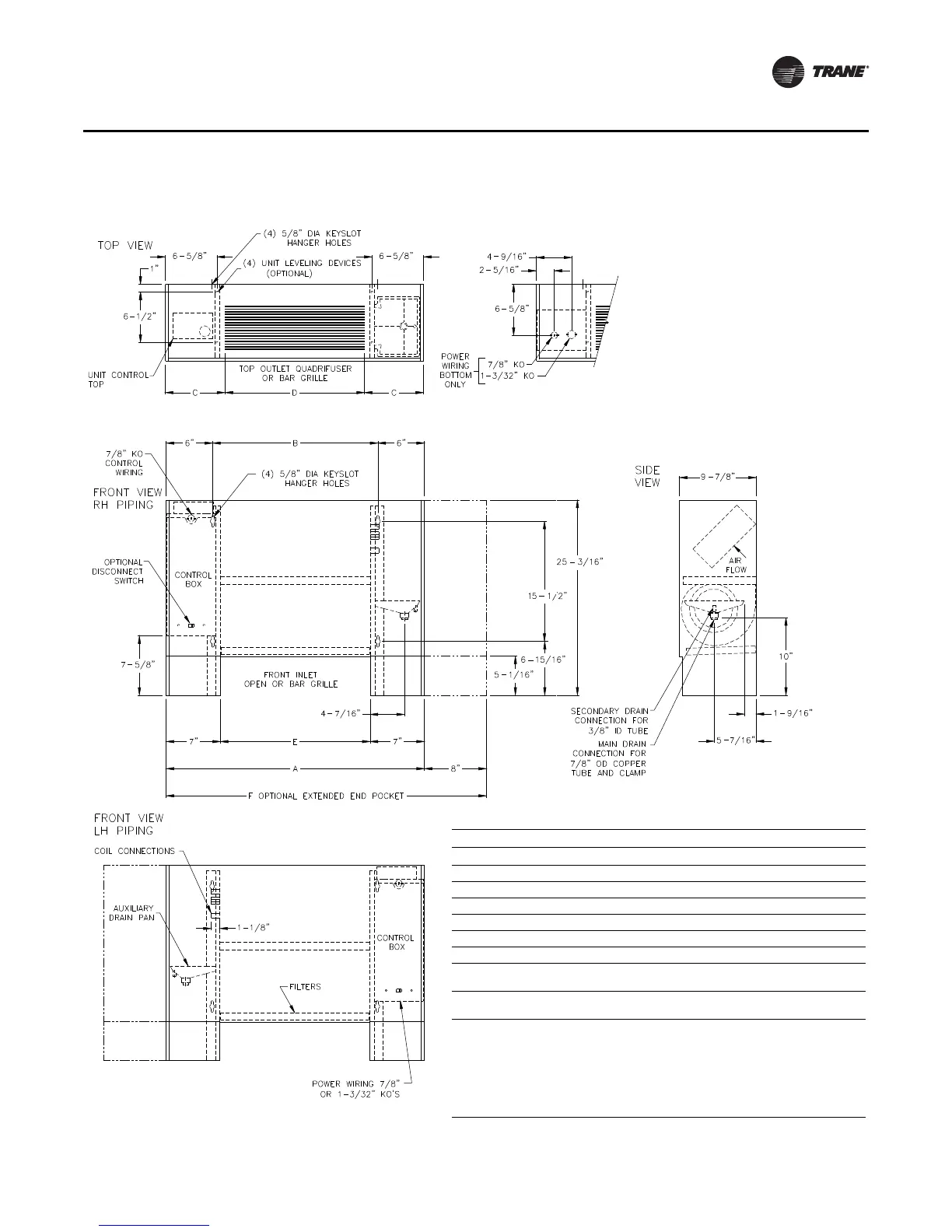

Vertical Cabinet Unit Dimensions (in.) and Weights (lb)
Unit Size 02–03 04 06 08 10–12
A 33-5/16” 38-5/16” 47-13/16” 56-5/16” 75-5/16”
B 21-5/16” 26-5/16” 35-13/16” 44-5/16” 63-5/16”
C 7-5/8” 7-1/8” 8-7/8” 7-1/8” 7-5/8”
D 18” 24” 30” 42” 60”
E 19-5/16” 24-5/16” 33-13/16” 42-5/16” 61-5/16”
F 41-5/16” 46-5/16” 55-3/16” 64-5/16” 83-5/16”
Operating
Weight
97 125 155 164 218
Shipping
Weight
84 112 139 148 200
Notes:
1. Coil connections are always on the drain pan side and opposite the control
box and unit control.
2. Coil connections are 5/8” O.D. sweat. See p. 30 and p. 31 for locations.
3. All duct collar dimensions are to the outside of the collar.
4. See p. 34 for dimensions for outside air openings.
5. Serviceability for some components within this unit may require panel or
drain pan removal.
