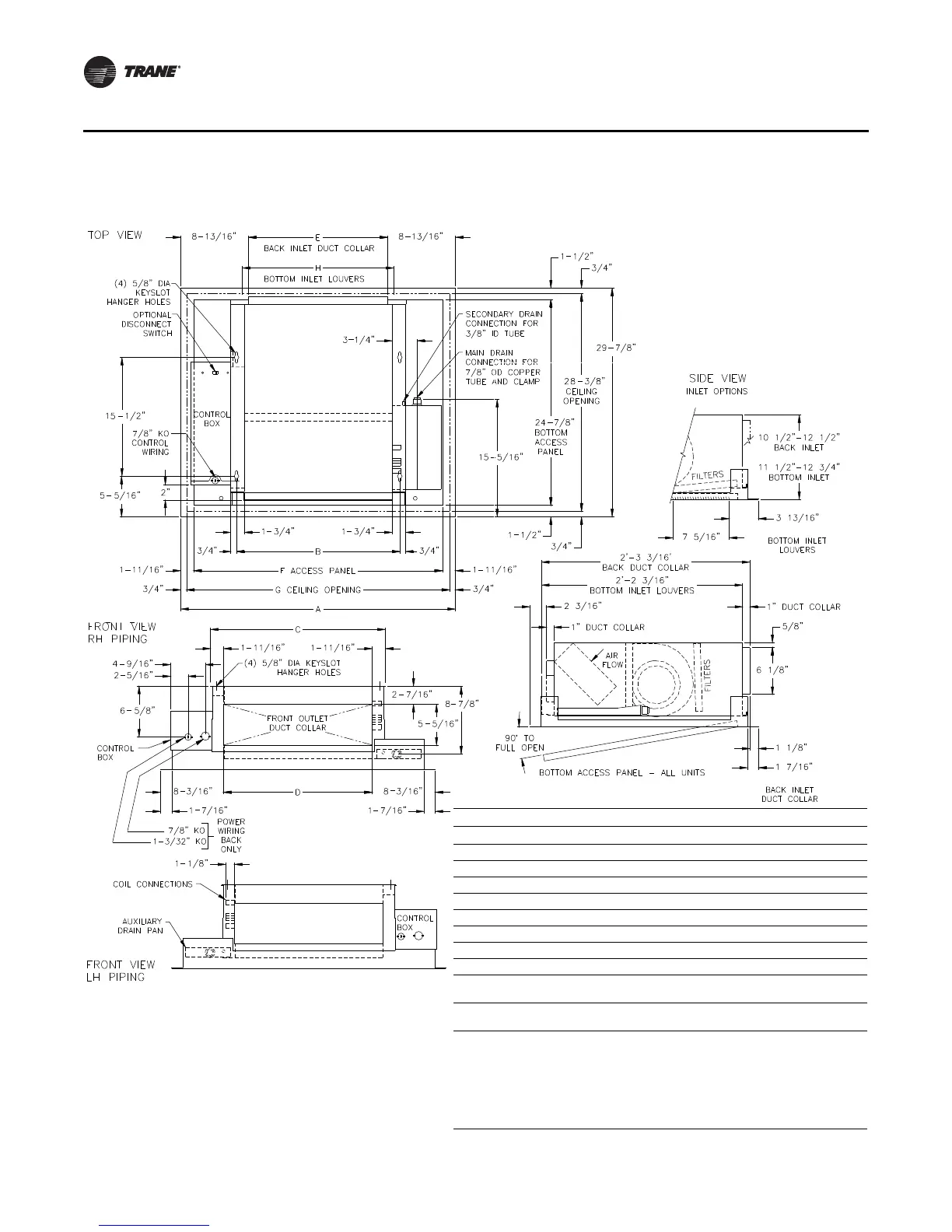

Horizontal Recessed Unit Dimensions
Unit Size 02–03 04 06 08 10–12
A 35-13/16” 40-13/16” 50-5/16” 48-13/16” 77-13/16”
B 21-5/16” 262-5/16” 35-13/16” 44-5/16” 63-5/16”
C 22-13/16” 273-13/16” 37-5/16” 45-13/16” 64-13/16”
D 19-3/8” 24-3/8” 33-7/8” 42-3/8” 61-3/8”
E 18-1/8” 23-1/8” 32-5/8” 41-1/8” 60-1/8”
F 32-7/16” 37-7/16” 46-15/16” 55-7/16” 74-7/16”
G 34-5/16” 39-5/16” 48-13/16” 57-5/16” 76-5/16”
H 19-3/4” 23-3/4” 31-3/4” 39-3/4” 59-3/4”
Operating
Weight
78 88 128 139 253
Shipping
Weight
68 78 118 129 243
Notes:
1. Coil connections are always on the drain pan side.
2. Coil connections are 5/8” O.D. sweat. See p. 30 and p. 31 for locations.
3. All duct collar dimensions are to the outside of the collar.
4. See p. 33 for dimensions for outside air openings.
5. Serviceability for some components within this unit may require panel or
drain pan removal.
6. Side View, Inlet option view gives dimensions for the telescoping panel.
