VAT 653 Series User Manual

INSTALLATION Series
65
24/129 Edition 2019-05-03 963283EA

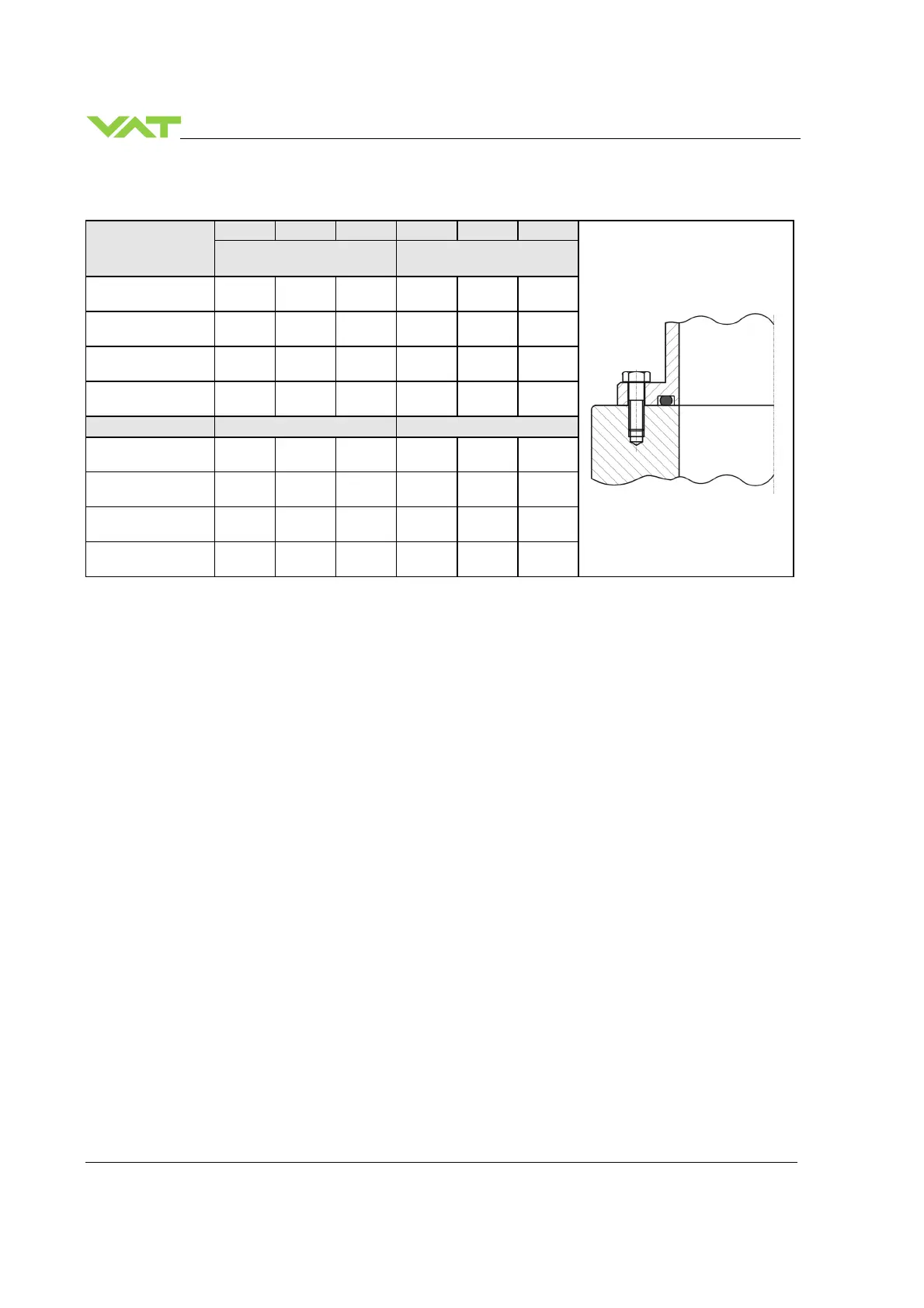

4.2.6 Mounting with O-ring in grooves
Valve size
ISO-F JIS ASA-LP ISO-F JIS ASA-LP
max. tightening torque
(Nm)
max. tightening torque
(lbs . ft)
DN100 / 4“
(65340 - . . . . - . . . . )
20-23 35-40 35-40 15-17 26-30 26-30
DN160 / 6“
(65344 - . . . . - . . . . )
35-40 35-40 35-40 26-30 26-30 26-30
DN200 / 8“
(65346 - . . . . - . . . . )
35-40 35-40 80-90 26-30 26-30 59-67
DN250 / 10“
(65348 - . . . . - . . . . )
35-41 65-70 80-90 26-30 48-52 59-67
hole depth (mm) hole depth (inch)
DN100 / 4“
(65340 - . . . . - . . . . )
12 12 12 0.47 0.47 0.47
DN160 / 6“
(65344 - . . . . - . . . . )
14 14 14 0.55 0.55 0.55
DN200 / 8“
(65346 - . . . . - . . . . )
15 15 14 0.59 0.59 0.59
DN250 / 10“
(653
48
- . . . . - . . . . )
16 16 16 0.63 0.63 0.63
