5.6 Display information

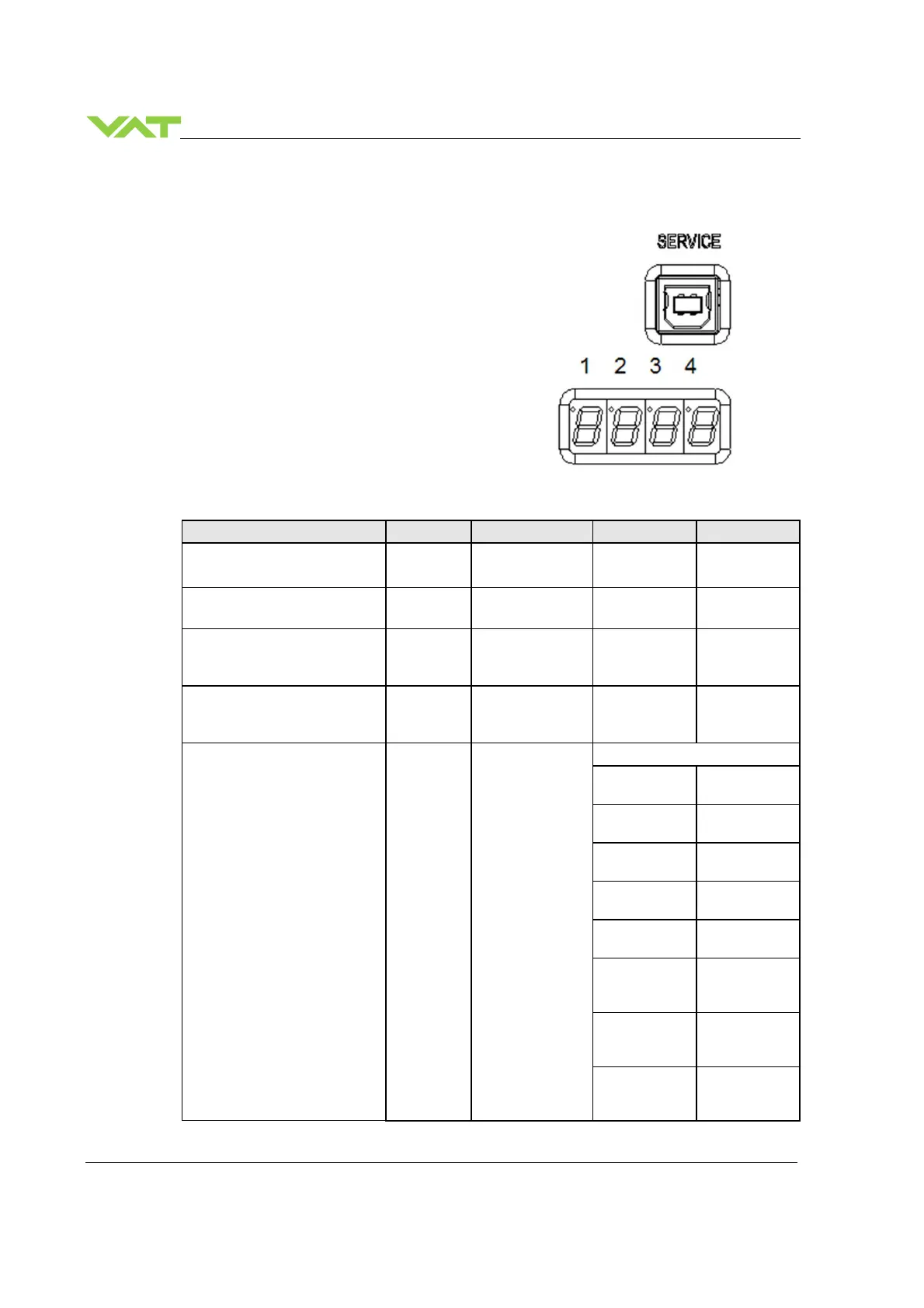

There is a 4 digit display located on the controller.
It displays configuration, status and position
information.
For details refer to following tables.
5.6.1 Power up
Description Digit 1 Digit 2 Digit 3 Digit 4
● 1
st
Power On:
All dots are illuminated
# # # #
● 2
st
information for about 3s
Valve type [e.g. ]
6 7 0
● 3
st
information for about 3s:
Firmware generation and
Firmware Type [e.g. 01.0C]
0 1 0 C
● 4
st
information for about 3s:
Firmware version and firmware
revision [e.g. 07.00]
0 7 0 0
● 5
nd
information for about 3s:
Controller configuration.
[e.g. 11.00]
Refer to «Safety mode» for
details.
Controller
Type
(1=EC2)
Inteface Type
(1=RS232/RS485,
2=EtherCAT,
3=DeviceNet)
5=Logic
Option Type
0 0
(none)
0 1
(SPS)
0 2
(PFO)
0 3
(Cluster)
0 4
(SPS & PFO)
0
5
(SPS &
Cluster)
0
6
(PFO &
Cluster)
0 7
(SPS & PFO &
Cluster
