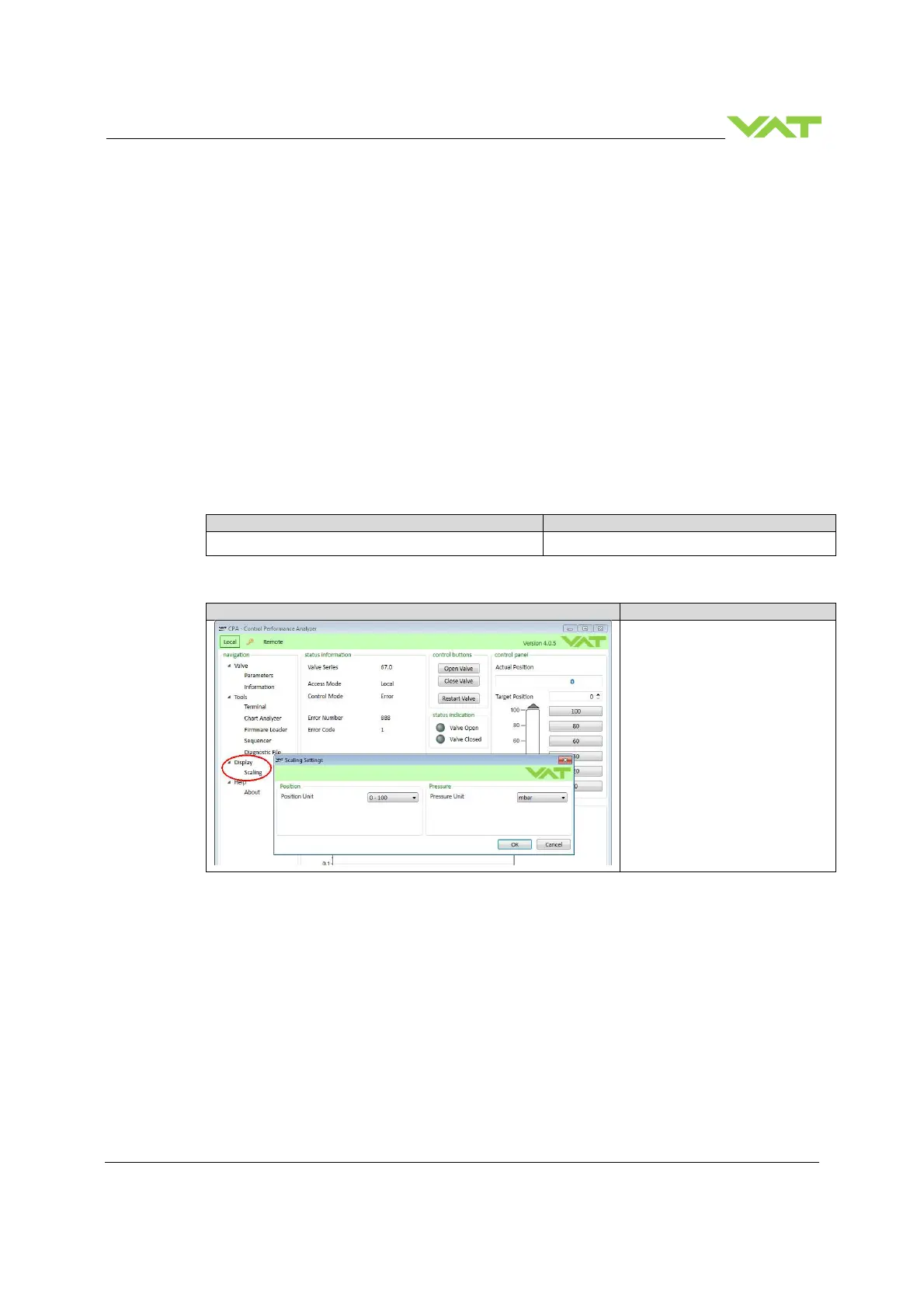

4.5 Scaling of Pressure and Position Values
The scaling for pressure and position values can be configured.
• The position scaler defines the unit/range of all position values: Target Position, Actual Position,
…
• The pressure scaler defines the unit/range of all pressure values: Target Pressure, Actual
Pressure, …
Overall there are six individual scalers:
RS232
Position Scaler
Pressure Scaler
Position Scaler
Pressure Scaler
Service (CPA over USB)
Parameter location RS232 scaler
CPA RS232
Interface RS->Scaling Refer to RS232-setup command for detail
Parameter location Service (CPA over USB) scaler
CPA
EtherCAT
-(no access)
