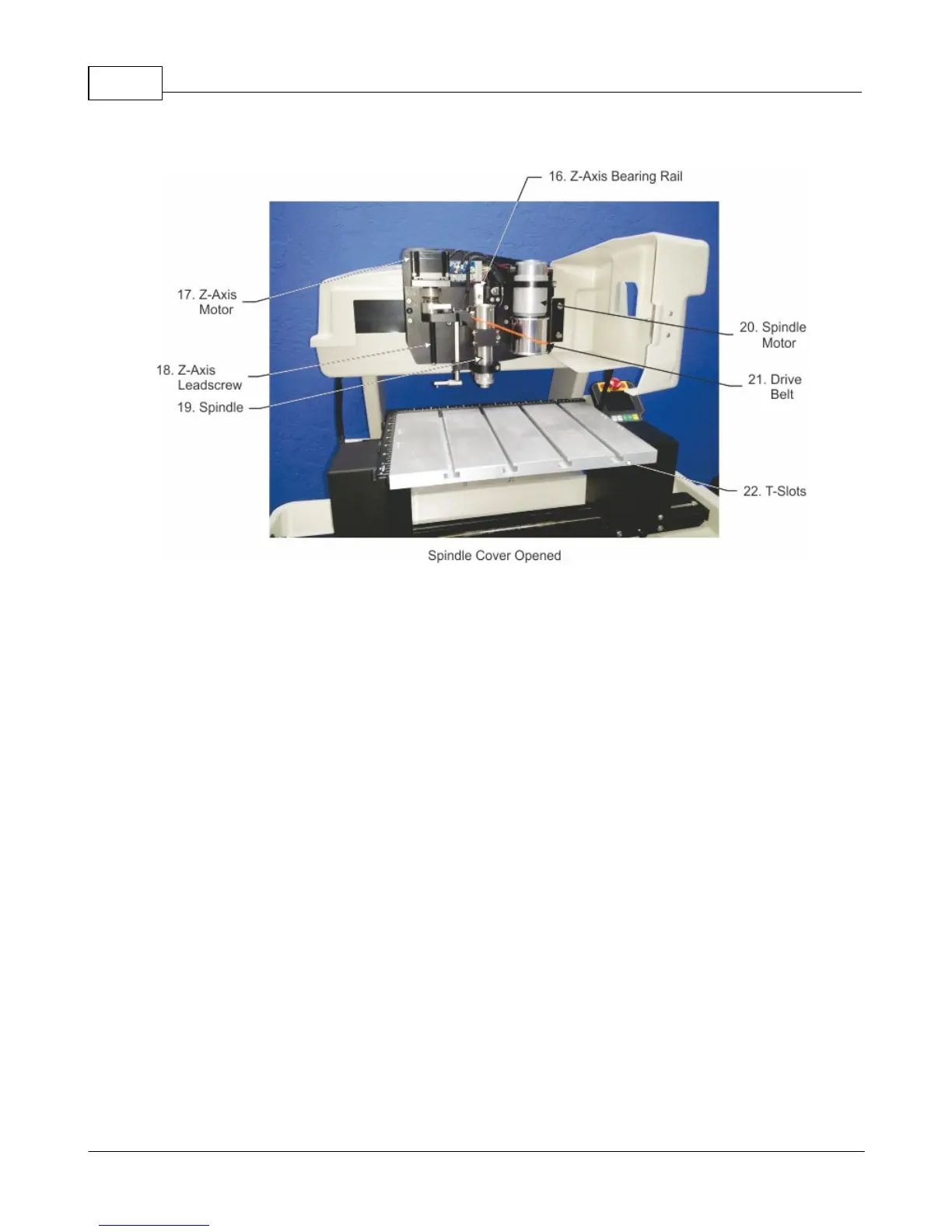

16. Z-Axis Bearing Rail - This rail locates the spindle in the Z-Axis.
17. Z-Axis Motor - This motor raises and lowers the spindle.
18. Z-Axis Leadscrew - The Z-Axis motor turns the Z-Axis Leadscrew in order to raise and lower the
spindle.
19.. Spindle - The spindle holds the cutting tool and can rotate cutting tools when applicable.
20. Spindle Motor - This motor drives the drive belt, which in turn drives the spindle.
21. Drive Belt - This belt connects the spindle motor to the spindle.
22. T-Slots - T-Slots are cut into the T-Slot table to accommodate special hold down clamps and fixtures
used to hold material in place.
