– Remove camshafts ⇒ page 101 .
Calculate the max. permissible reworking dimension as follows:
– Insert valve and press firmly against seat.
Note
If the valve is to be renewed as part of a repair, use a new valve
for the calculation.

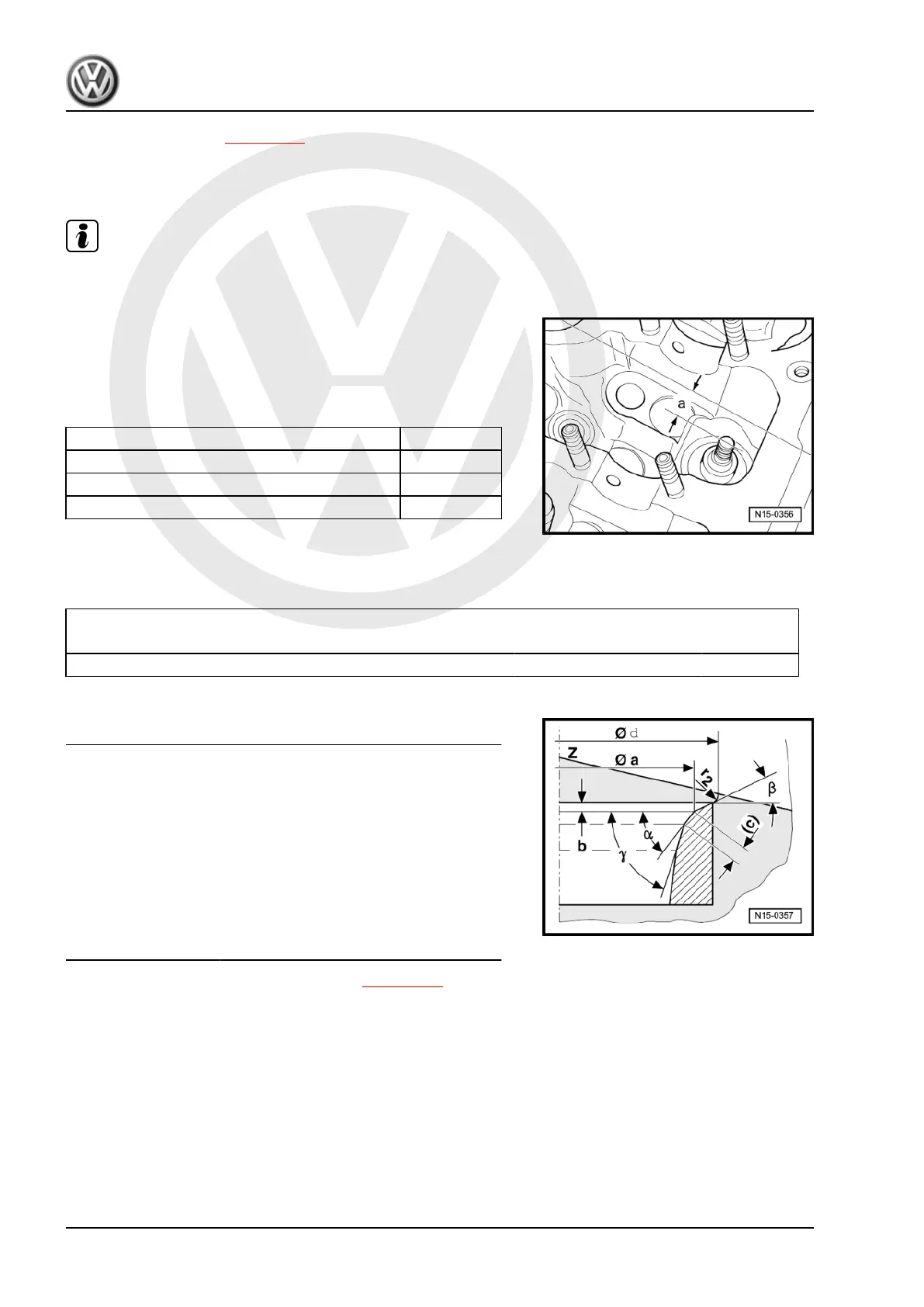

– Measure distance -a- between end of valve stem and upper
edge of cylinder head.
– Calculate maximum permissible reworking dimension from
measured distance -a- and minimum dimension
Minimum dimension:
Short inlet valve mm 31.8
Long inlet valve mm 10.2
Short exhaust valve mm 31.8
Long exhaust valve mm 10.2
Measured distance minus minimum dimension = max. permissi‐
ble reworking dimension.
Example:
Measured distance 10.6 mm
- Minimum dimension 10.2 mm
= Max. permissible reworking dimension 0.4 mm
Reworking inlet valve seat:
a = 32.8 mm diameter
b = max. permissible reworking dimension
1)
c = 0.9 to 1.5 mm
d = max. ∅ 38.0 mm
r
2
= radius 2.0 mm
Z = bottom surface of cylinder head
α = 45° valve seat angle
β = 30° upper correction angle
γ = 60° lower correction angle
1) Calculating max. permissible reworking dimension ⇒ page 119 .
CC 2012 ➤ , Passat 2011 ➤ , Passat Variant 2011 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 06.2019
120 Rep. gr.15 - Cylinder head, valve gear
