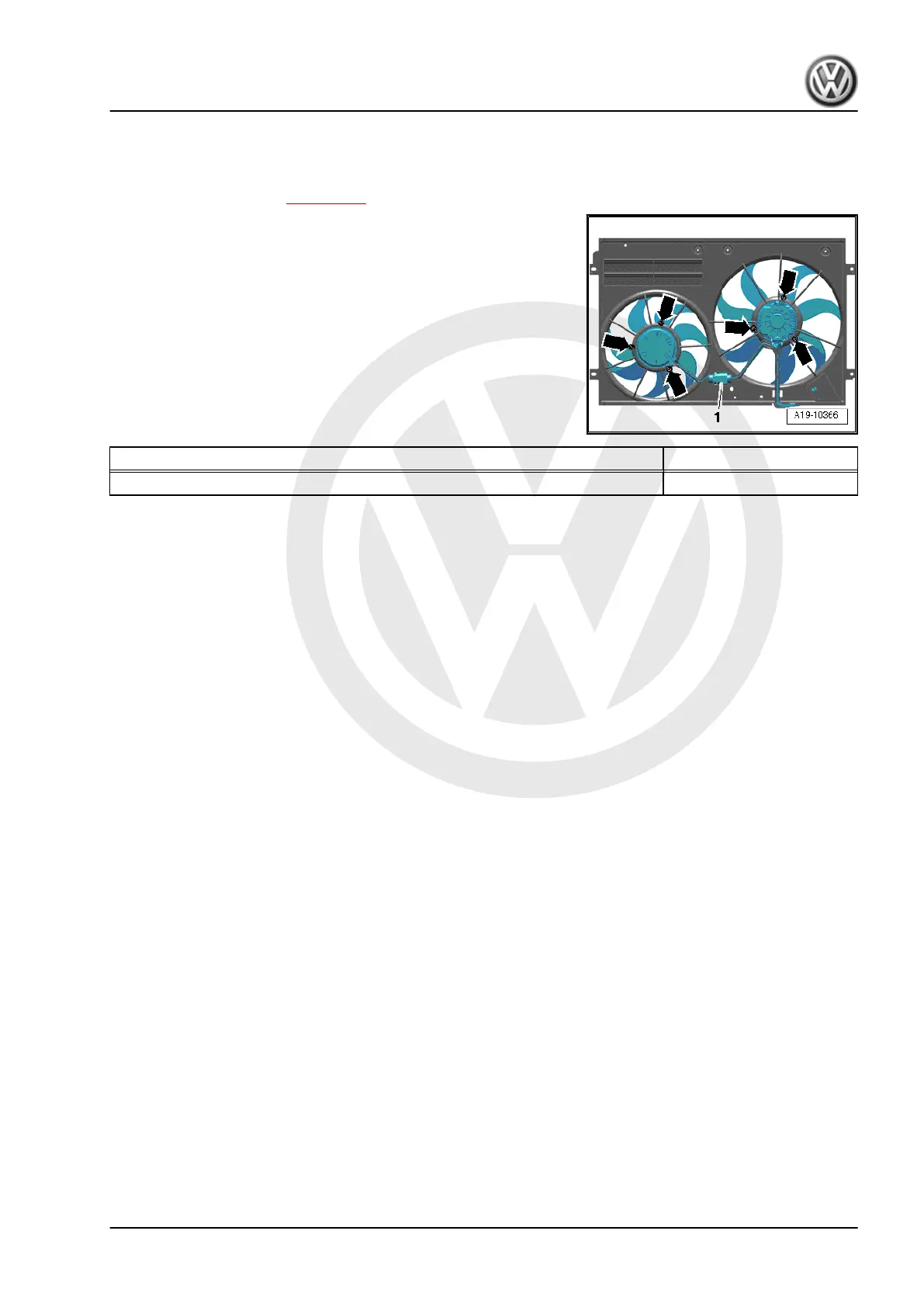

Removing and installing radiator fan
Removing:
–
Remove radiator cowl
⇒ page 157
.
–
Disconnect connector -1-.
–
Move electrical wiring clear.
–
Unscrew nuts -arrows- and remove radiator fans.
Installing:
Install in reverse order.
Bolted connection
Torque setting
Radiator fan to radiator cowl
10 Nm
CC 2012 ➤ , Passat 2011 ➤ , Passat Variant 2011 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 06.2019
3. Radiator, radiator fan
159
164
166
