6 - Conrod bearing cap
❑ Mark allocation to cylinder
❑ Mark conrod number
7 - 40 Nm +
1
/
4
turn (90°) further
❑ Renew
❑ Oil threads and contact surface
❑ To measure radial clearance, tighten to 40 Nm but not further.
8 - Piston pin
❑ If difficult to remove, heat piston to 60°C.
❑ Remove and install using drift - VW 222 A- .
4.2 Removing and installing pistons

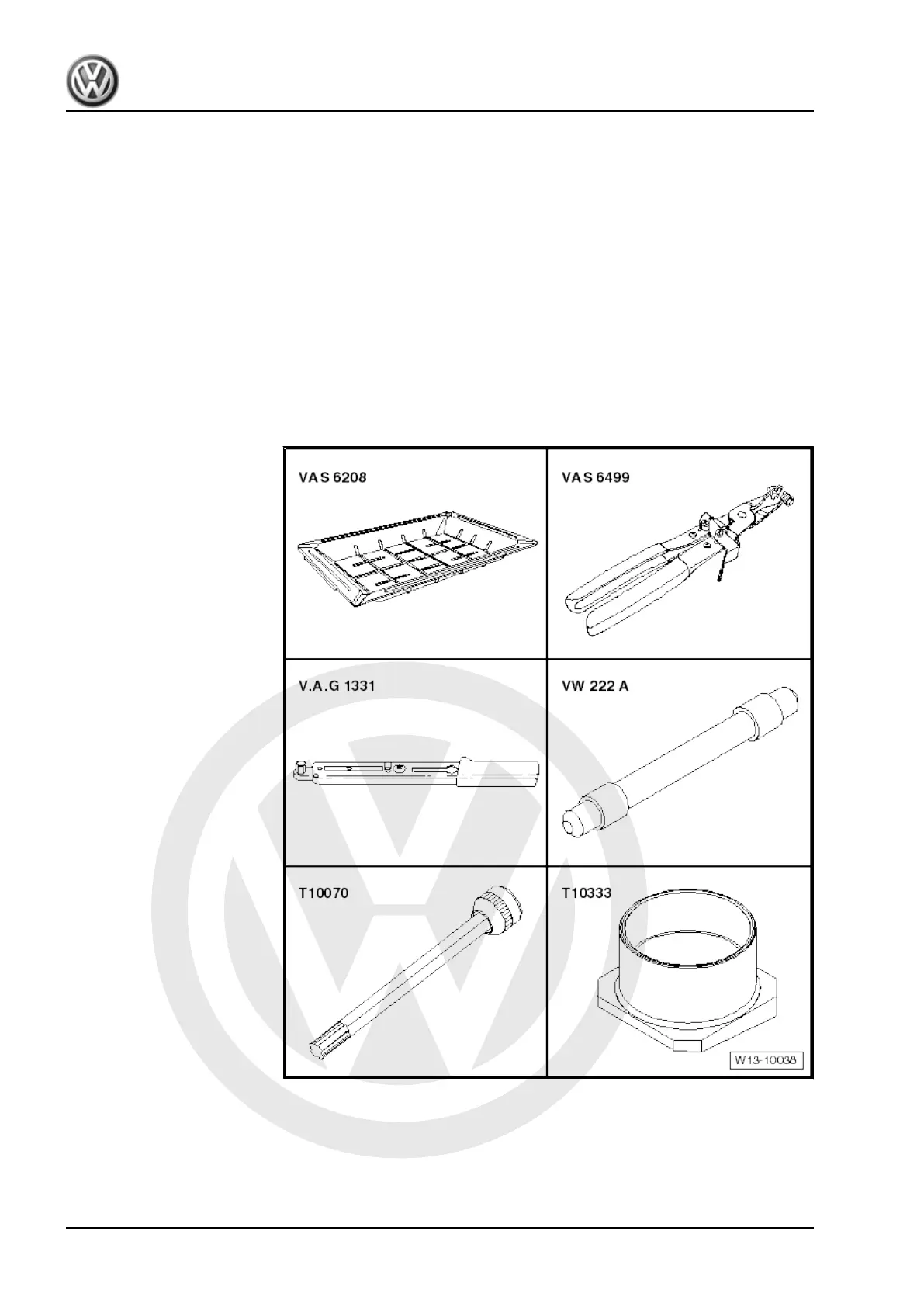

Special tools and workshop
equipment required
♦ Drip tray for workshop hoist - VAS 6208-
♦ Spring-type clip pliers - VAS 6499-
♦ Torque wrench - V.A.G 1331-
♦ Pin - VW 222 A-
CC 2012 ➤ , Passat 2011 ➤ , Passat Variant 2011 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 06.2019
52 Rep. gr.13 - Crankshaft group
