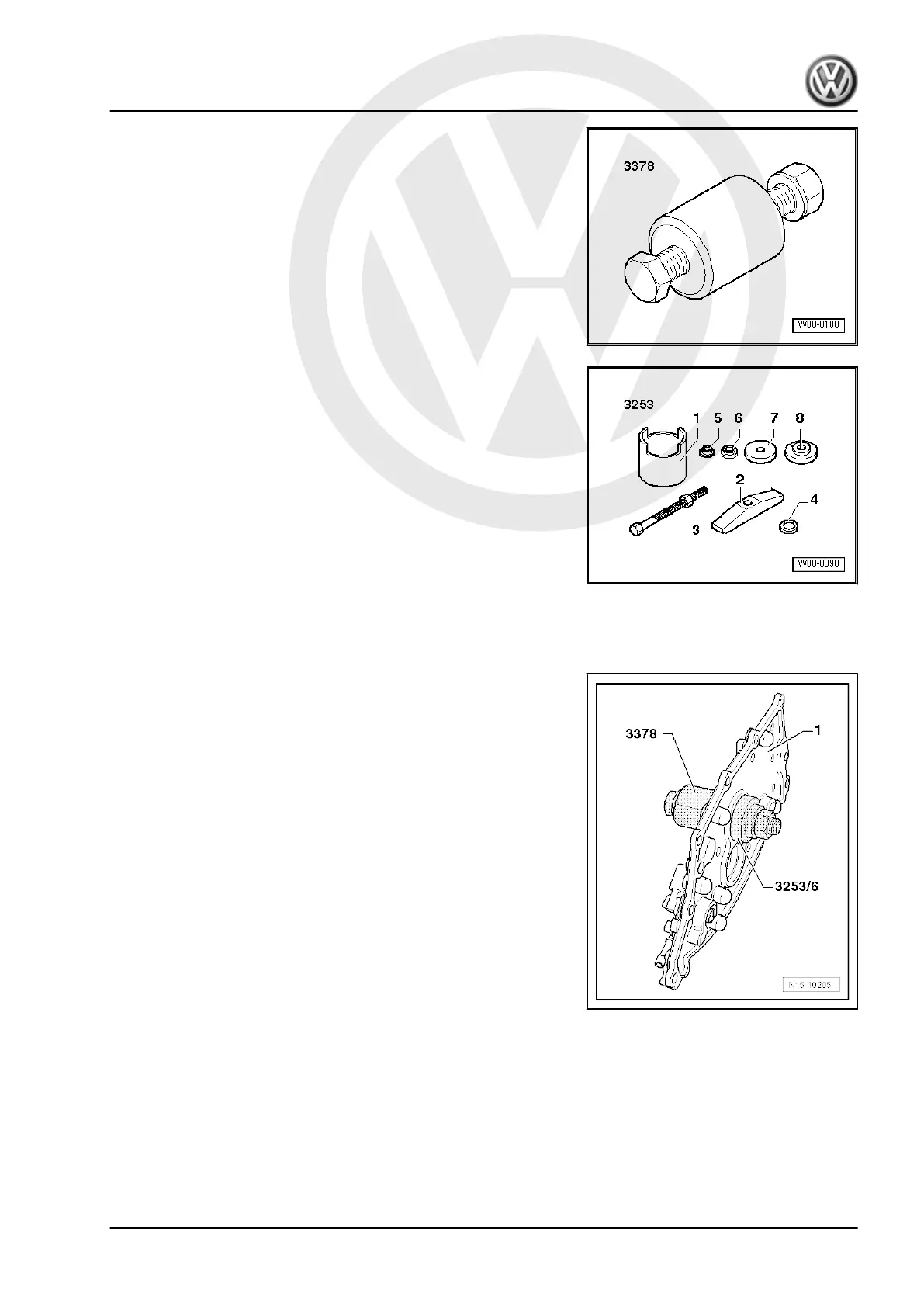

♦ Fitting sleeve - 3378-
♦ Fitting sleeve - 3253/6- from assembly tool - 3253- .
Removing:
– Using a suitable tool, press out the old seal without damaging
the cover.
Installing:
– Do not lubricate seals.
– Install seal with fitting sleeve - 3378- in cover -1- and pull in
flush using fitting sleeve - 3253/6- from assembly tool - 3253- .
2.4 Assembly overview - valve timing housing
CC 2012 ➤ , Passat 2011 ➤ , Passat Variant 2011 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 06.2019
2. Cover for timing chain 79
