3 Air filter
⇒ “3.1 Assembly overview - air filter housing”, page 174
⇒ “3.2 Removing and installing air filter housing”, page 175
⇒ “3.3 Checking intake air preheating”, page 175

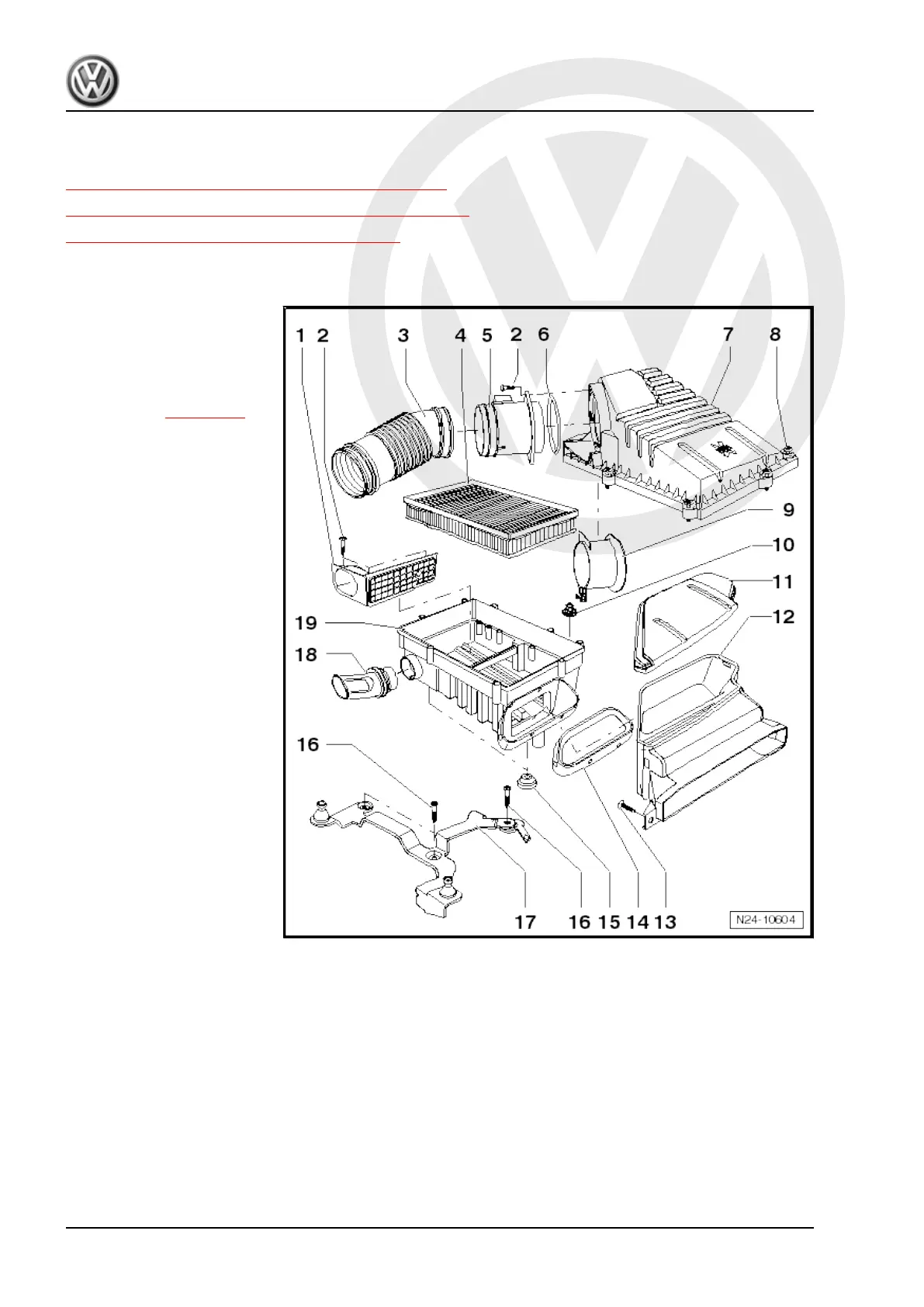

3.1 Assembly overview - air filter housing
1 - Regulating flap
❑ Only
on vehicles for cold
climate zones
❑ With thermal element
❑ Checking intake air pre‐
heating
⇒ page 175
2 - Bolt
❑
2 Nm
3 - Connection hose
❑ To throttle valve module
- J338- .
4 - Filter element
5 - Air mass meter - G70-
6 - Sealing ring
❑ Renew if damaged
7 - Air filter upper part
8 - Bolt
❑ 2 Nm
9 - Connection
❑ Clipped into upper part
of air filter
10 - 8 Nm
11 - Cover
12 - Air duct
❑ Secured to lock carrier.
13 - Bolt
❑ 5 Nm
14 - Seal
❑ Renew if damaged
15 - Rubber mounting
16 - Bolt
❑ 10 Nm
17 - Holder
❑ For air filter
18 - Connection
❑ Not fitted in all vehicles.
❑ For hot air intake.
19 - Air filter lower part
CC 2012 ➤ , Passat 2011 ➤ , Passat Variant 2011 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 06.2019
174 Rep. gr.24 - Mixture preparation - injection
