6 - Lambda probe after catalytic converter - G130- , 50 Nm
❑
Bank 1, probe 2
❑ Black 4-pin connector
❑ Installed in exhaust gas stream of cylinders 1, 2 and 3
❑ Grease only thread with -G 052 112 A3- . -G 052 112 A3- must not get into slots in probe body.
❑ Removing and installing
⇒ page 200
7 - Front silencer
8 - to the centre silencer ⇒ page 202
9 - Catalytic converters
❑
Observe notes
⇒ page 206
❑
Installed in exhaust gas stream of cylinders 1, 2, 3 right and 4, 5 and 6 left
10 - Mounting
❑ For front exhaust pipe, left and right
11 - 20 Nm
12 - Lambda probe - G39- , 50 Nm
❑ Bank 1, probe 1
❑ Black 6-pin connector
❑ Installed in exhaust gas stream of cylinders 1, 2 and 3
❑ Grease only thread with -G 052 112 A3- . -G 052 112 A3- must not get into slots in probe body.
❑ Removing and installing
⇒ page 199

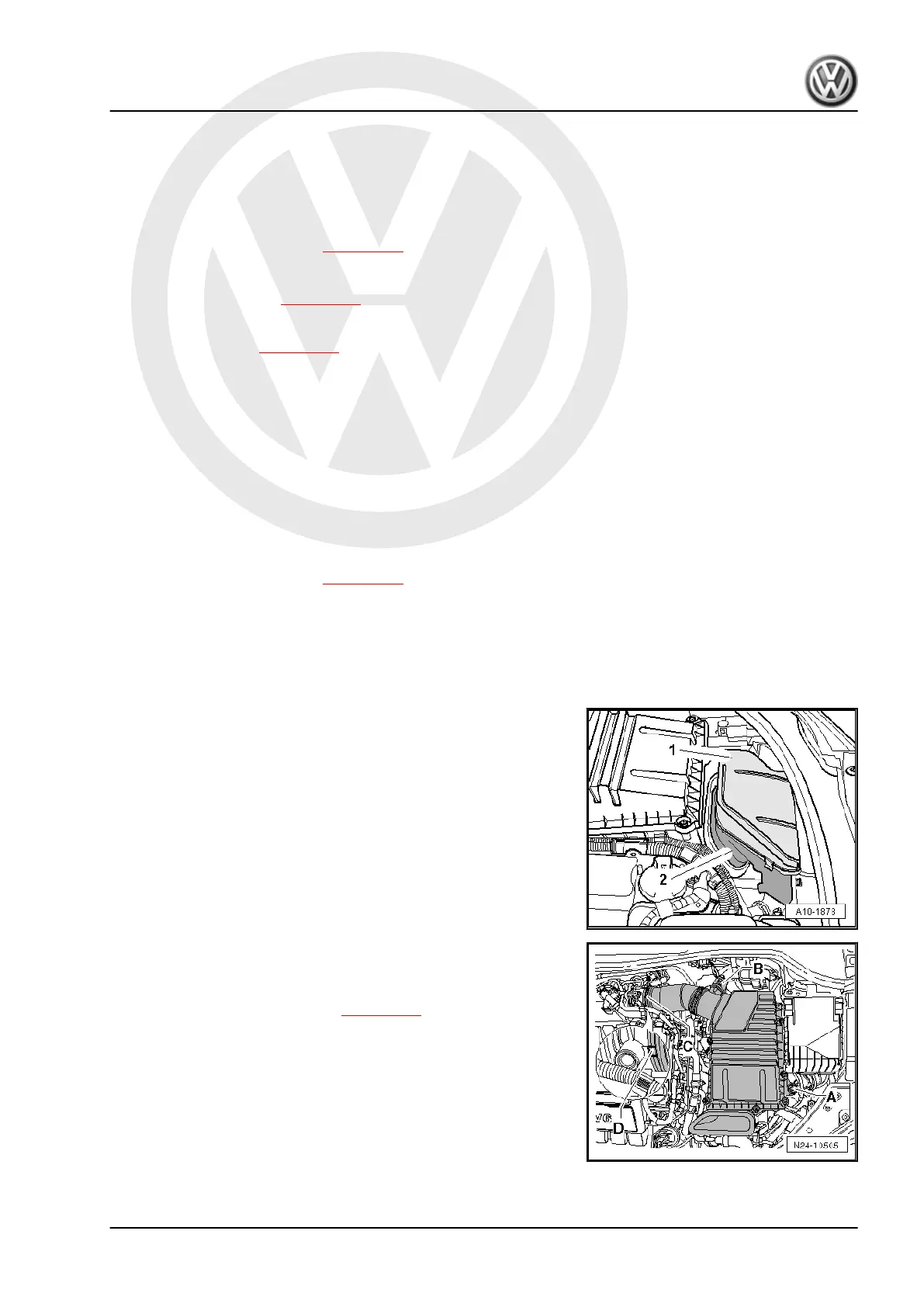

2.2 Removing and installing catalytic con‐
verter
Removing:
– Pull cover -1- off air duct, releasing clips on sides to do so.
– Remove air duct -2-.
– Remove air filter housing with connection hose. To do this,
unscrew
bolt -A-, pull off connector -B- and loosen spring-type
clip -C-. Take note of marking -D- when refitting.
– Remove throttle valve module
⇒ page 184 .
CC 2012 ➤ , Passat 2011 ➤ , Passat Variant 2011 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 06.2019
2. Emission control 207
