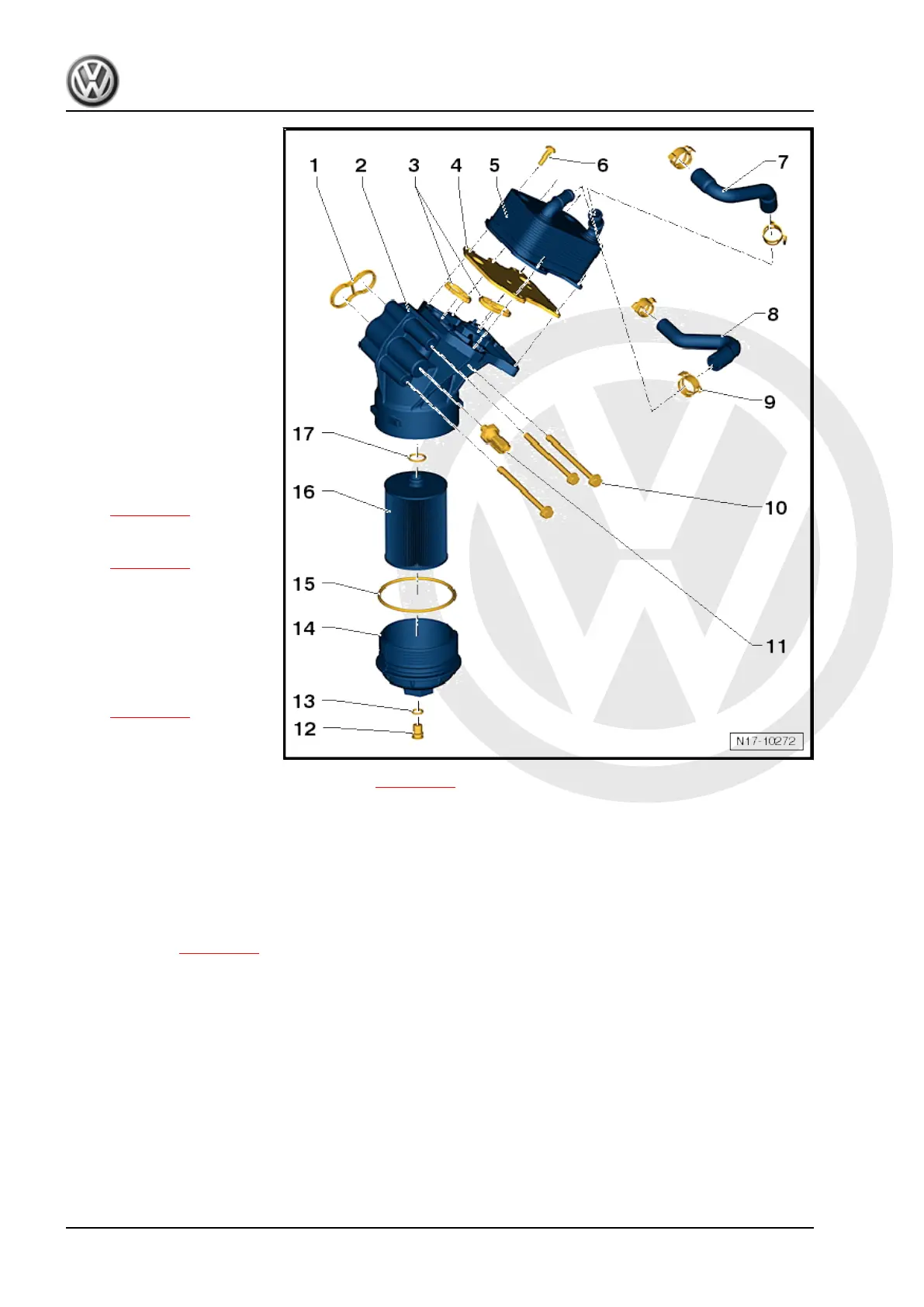

1 - Sealing ring
❑
Renew
❑ Lubricate before as‐
sembling.
2 - Oil filter housing
3 - Oil seals
❑ Renew
❑ Lubricate before as‐
sembling.
4 - Connection plate
❑ Component of the en‐
gine oil cooler
5 - Engine oil cooler
❑ Remove with oil filter
housing
❑ Ensure clearance to ad‐
jacent components
❑ Observe notes
⇒ page 133
❑
Connection diagram for
coolant hoses
⇒ page 138
6 - Bolt
❑
8 Nm
7 - Coolant hose
❑ Ensure firm seating
❑ Connection diagram for
coolant hoses
⇒ page 138
8 - Coolant hose
❑
Ensure firm seating
❑ Connection diagram for coolant hoses
⇒ page 138
9 - Hose clamp
10 - Bolt
❑
23 Nm
11 - Oil pressure switch - F1- , 20 Nm
❑ 0.9 bar switch
❑ If seal is leaking, nip open and renew.
❑ Checking
⇒ page 135
12 - Oil drain plug
❑
10 Nm
13 - O-ring
❑ Renew
❑ Lubricate before assembling.
14 - Threaded cover
❑ 25 Nm
15 - O-ring
❑ Renew
❑ Lubricate before assembling.
CC 2012 ➤ , Passat 2011 ➤ , Passat Variant 2011 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 06.2019
134 Rep. gr.17 - Lubrication
