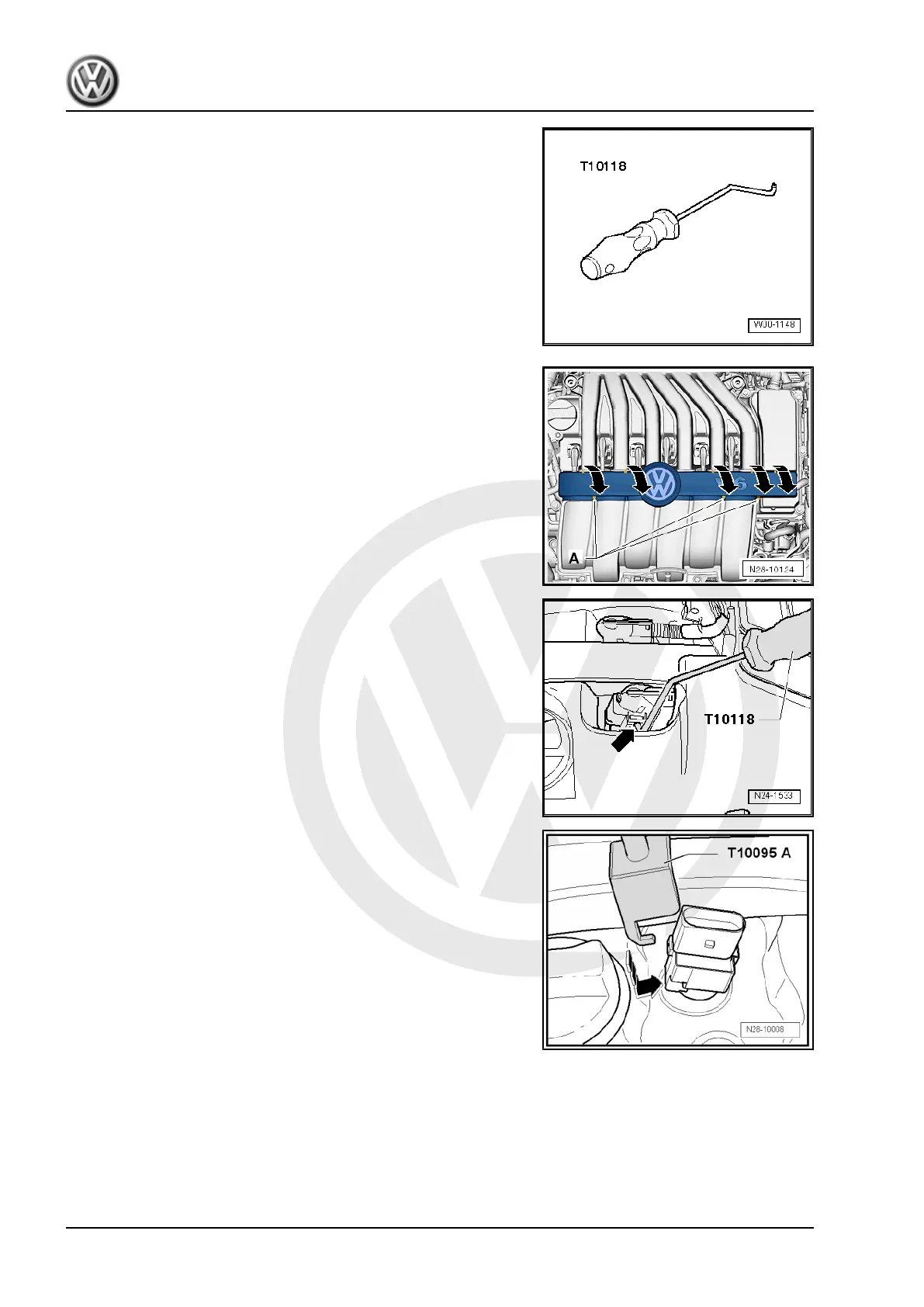

♦ Assembly tool - T10118-
Removing:
– Unclip cover rail for ignition cable harness -arrows- and re‐
move forwards from retaining lugs -A-.
– Apply assembly tool - T10118- to the locking button -arrow-
and carefully pull the plug connector downwards.
– Push puller - T10095 A- on from flat side of connector in
-direction of arrow- and pull out ignition coil with output stage .
CC 2012 ➤ , Passat 2011 ➤ , Passat Variant 2011 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 06.2019
214 Rep. gr.28 - Ignition system
