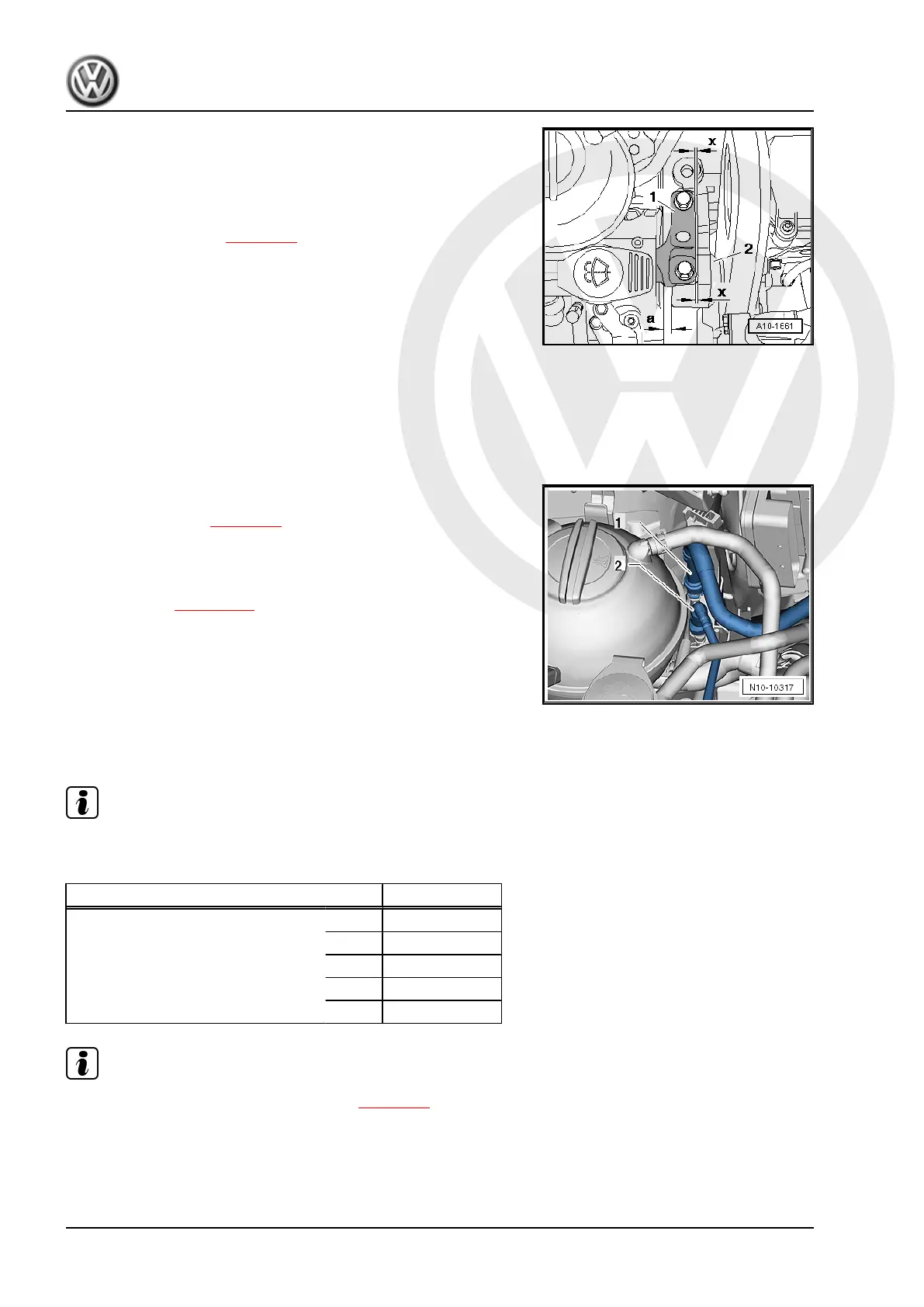

♦ There must be a distance -a-
of at least 10 mm between engine
support and longitudinal member (right side).
♦ The side surface of the engine support -2- should be located
parallel to the support arm -1-.
– Tighten bolts for engine assembly mounting and engine brack‐
et. Specified torque
⇒ page 21 .
– Install pendulum support.
– Bolt front exhaust pipe with catalytic converters to exhaust
manifold.
– Install drive shafts ⇒ Running gear, axles, steering; Rep. gr.
40 ; Drive shaft; Removing and installing drive shaft .
– Install the heat shield for the drive shaft.
– Install
air conditioner compressor ⇒ Heating, air conditioning;
Rep. gr. 87 ; Air conditioner compressor; Removing and in‐
stalling air conditioner compressor from and to bracket .
– Install fan support with fans.
– Reconnect fuel supply line -1- and breather line -2-.
– Install poly V-belt ⇒ page 31 .
– Install
noise insulation ⇒ General body repairs, exterior; Rep.
gr. 66 ; Noise insulation; Assembly overview – noise insula‐
tion .
– Add coolant
⇒ page 142 .
– Connect vehicle diagnostic tester.
– Read all the event memories and delete any entries that may
have been made during assembly.
– Conduct
test drive and generate readiness code ⇒ Vehicle di‐
agnostic tester “Guided Function”.
– Then carry out vehicle system test again, rectify any event en‐
tries which may have occurred.
Note
If the event memory was cleared, the readiness code must be
generated ⇒ Vehicle diagnostic tester “Guided Functions”.
Bolted connection
Torque setting
Nuts and bolts M6 10 Nm
M7 15 Nm
M8 25 Nm
M10 40 Nm
M12 60 Nm
Note
Specified torques for assembly mountings ⇒ page 21 .
