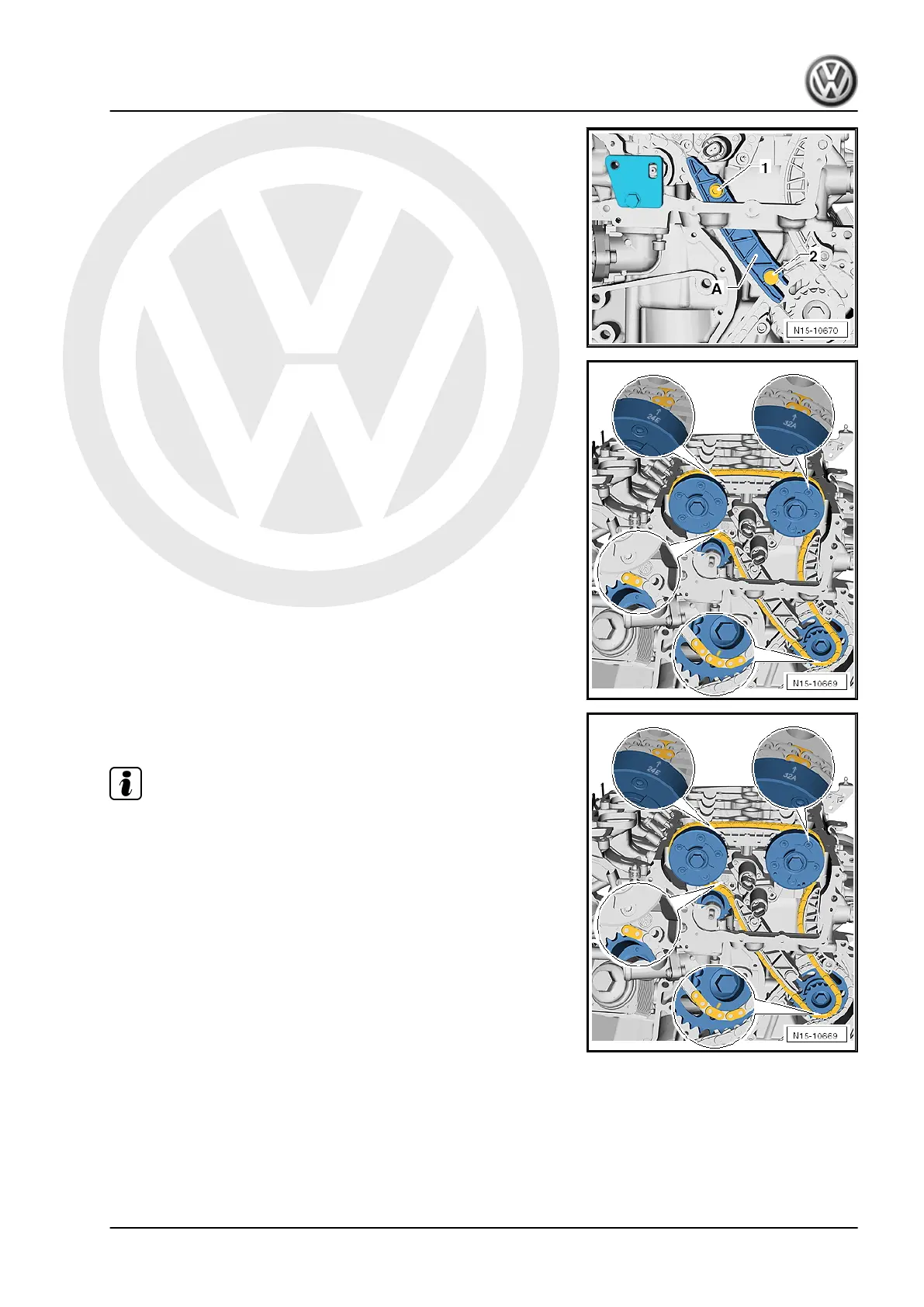

Tighten bolt -1- for guide rail.
Insert inlet camshaft adjuster »24E« into timing chain in such
a way that the copper-coloured chain link is aligned with the
marking on the camshaft adjuster. Bolt camshaft adjuster onto
camshaft and tighten bolt hand-tight.
Insert exhaust camshaft adjuster »32A« into timing chain in
such a way that copper-coloured chain link is aligned with
marking on camshaft adjuster. Bolt camshaft adjuster onto
camshaft and tighten bolt hand-tight.
Check position of copper coloured chain links to adjustment
markings.
Note
The copper coloured chain links no longer align with the adjust‐
ment markings once the crankshaft has been turned.
CC 2012 ➤ , Passat 2011 ➤ , Passat Variant 2011 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 06.2019
3. Chain drive 85
