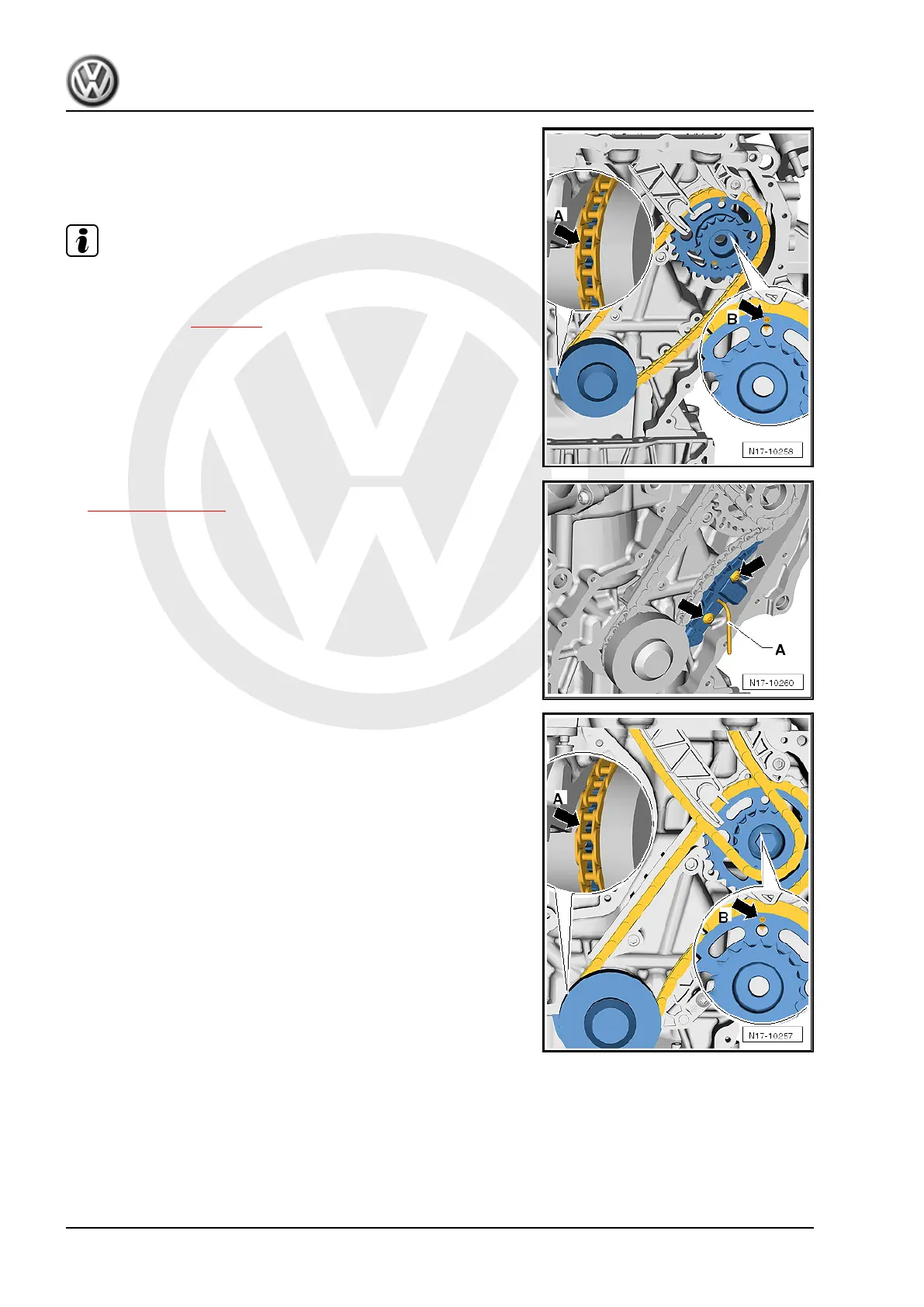

– Insert large sprocket into timing chain in such a way that the
hole with marking -arrow B- is aligned with marking on oil
pump.
– Fit sprocket onto oil pump shaft and tighten hand-tight.
Note
♦
If sprocket cannot be fitted, turn oil pump shaft slightly.
♦
If timing chain has already been used, note marking for direc‐
tion of rotation ⇒ page 83 .
– Install tensioner for timing chain -arrows-. Specified torque
⇒ Item 15 (page 82) .
– Remove Allan key -A-.
– Check setting markings.
• Ground tooth of drive sprocket -arrow A- must align with bear‐
ing joint.
• The marked hole -arrow- must be in line with the mark on the
oil pump.
CC 2012 ➤ , Passat 2011 ➤ , Passat Variant 2011 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 06.2019
90 Rep. gr.15 - Cylinder head, valve gear
