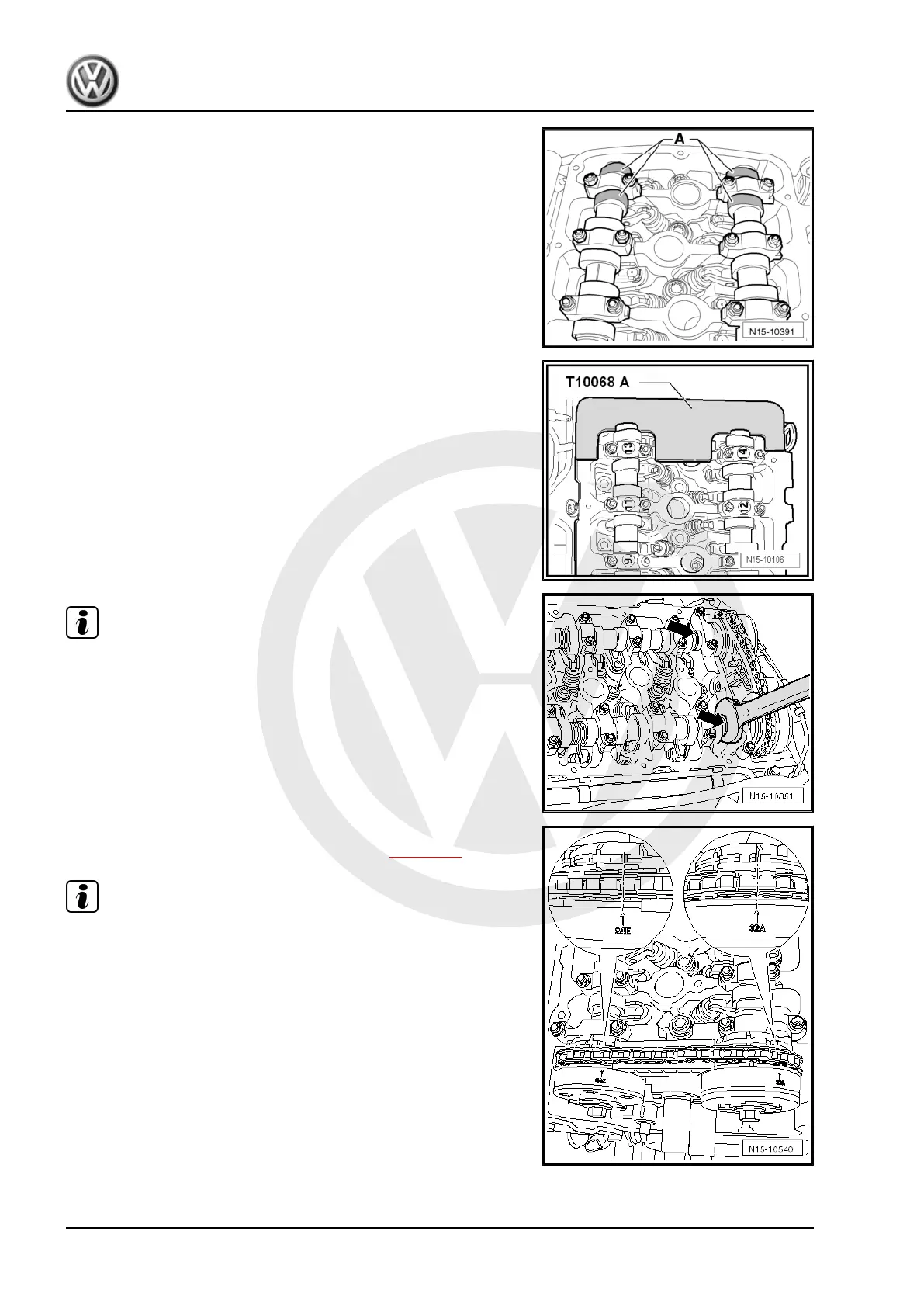

Cams -A- of cylinder 1 must face each other.
– Insert camshaft bar - T10068 A- in both shaft grooves.
Note
The grooves of the camshafts might not be exactly vertical due to
the function of camshaft adjusters. Therefore, move the cam‐
shafts back and forth slightly if necessary when inserting the
camshaft bar - T10068 A- using an open-end spanner -arrows-.
Check adjustment markings of camshaft adjusters against mark‐
ings on valve timing housing:
• Arrows on camshaft adjusters must align with right notches on
timing housing. Markings on timing housing ⇒ page 93 .
Note
♦
A slight offset between marking »32A« and notch is permissi‐
ble.
♦
Position of copper-coloured chain links can be disregarded.
CC 2012 ➤ , Passat 2011 ➤ , Passat Variant 2011 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 06.2019
92 Rep. gr.15 - Cylinder head, valve gear
