Storage

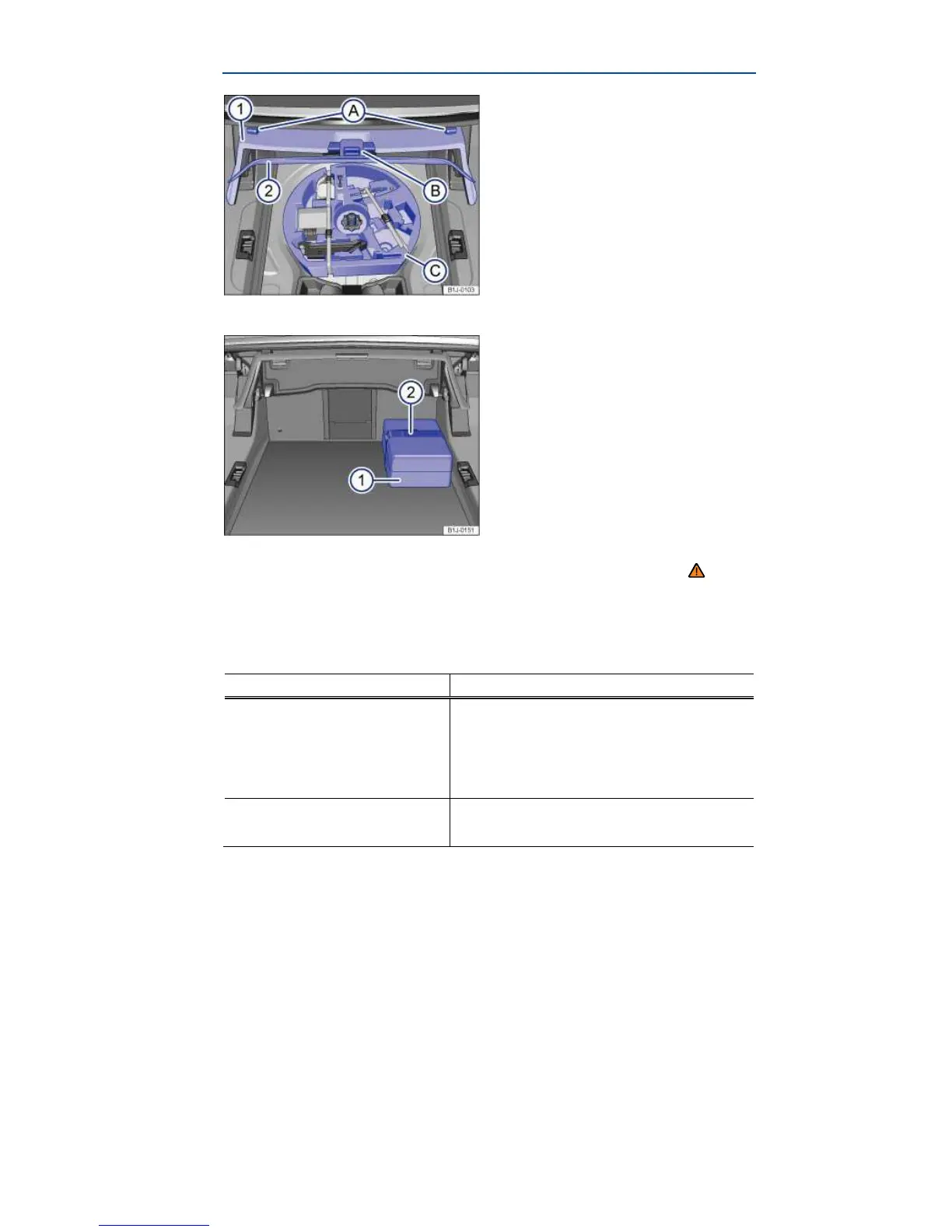

Fig. 177 Luggage compartment with luggage compartment cover 1 and floor covering 2 folded up.
Fig. 178 Tool box 1 and restraining strap 2 on the floor of the luggage compartment 1.
¤ Please first read and note the introductory information and heed the WARNINGS
The vehicle tool kit and compact spare wheel are in the luggage compartment in one of several
places, such as under the luggage compartment floor covering.
x If necessary, unhook the luggage compartment cover, Luggage compartment cover.
x Lift and, if necessary, remove the floor covering ⇒ fig. 177 (2).
Storage in the luggage compartment
ction
In a foam insert (C) under the floor
covering:
– Close the CSC roof if it is open
– Lift up the luggage compartment cover
(1) and latch it
by slipping its hooks over the tabs
(A).
– Lift up floor covering
(2) and use hook (B) to hang it on
the handle of the raised luggage compartment cover
(1)
so that you have both hands free to remove the spare
tire.
Tool box on the floor of the luggage
compartment ⇒
fig. 178 (1):
– Close the CSC roof if it is open
– To open the tool box, open the clasp and remove the
restraining strap
(2).
