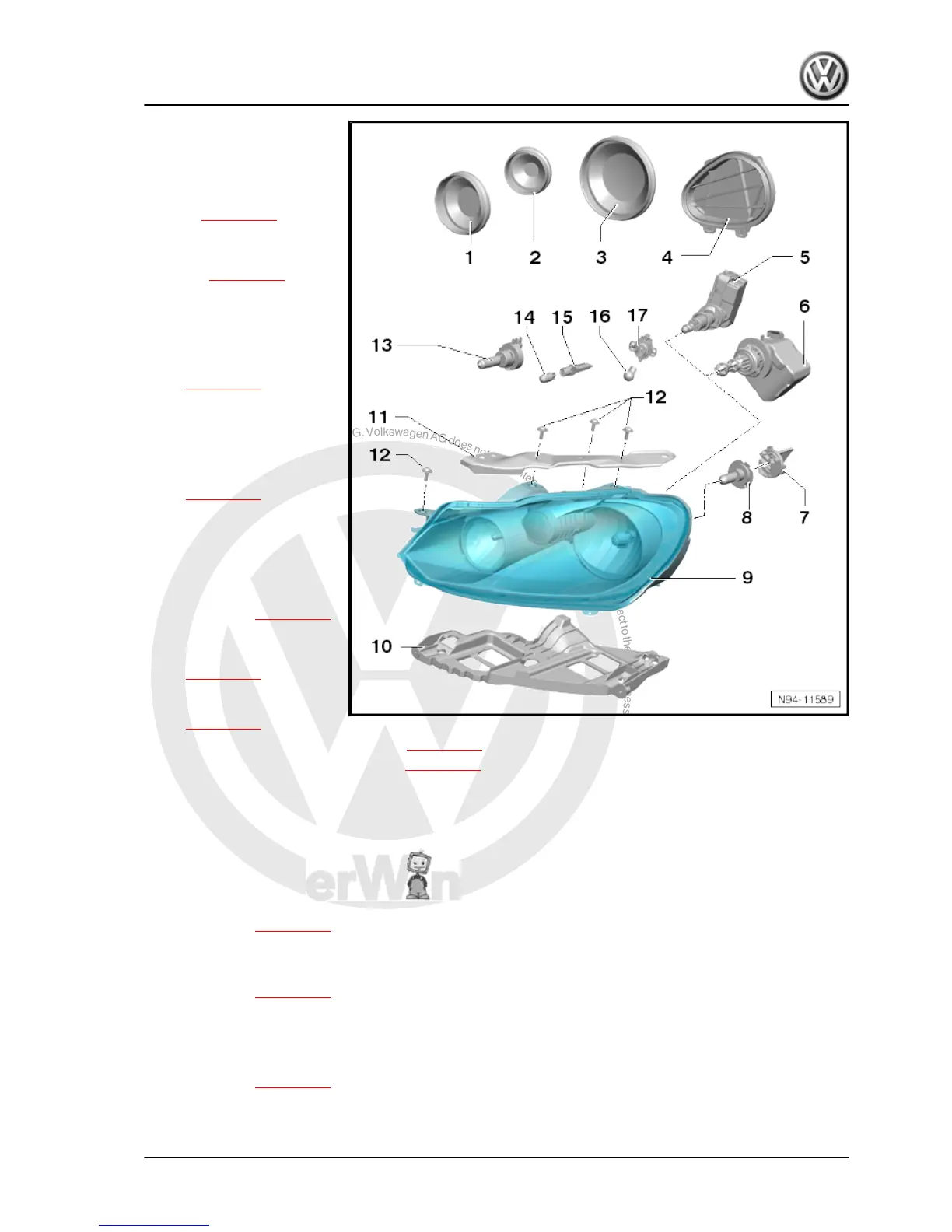

1 - Cover cap
2 - Cover cap
3 - Cover cap
❑ Only manufacturer Hel‐
la ⇒ page 241
4 - Cover cap
❑ Only manufacturer Va‐
leo ⇒ page 241
5 - Left headlight range control
motor -V48- / right headlight
range control motor -V49-
❑ Manufacturer Hella
❑ Removing and installing
⇒ page 247
6 - Left headlight range control
motor -V48- / right headlight
range control motor -V49-
❑ Manufacturer: Valeo
❑ Removing and installing
⇒ page 249
7 - Bulb holder with grip
8 - Left headlight dipped beam
bulb -M29- / right headlight dip‐
ped beam bulb -M31-
❑ Bulb: H7 12 V/55 W
❑ Renewing ⇒ page 218
9 - Headlight
❑ Removing and installing
⇒ page 238
❑ Adjusting headlight in‐
stallation position
⇒ page 240
❑ Repairing headlight securing tabs ⇒ page 251
❑ Converting for driving on left/right ⇒ page 254
10 - Guide
11 - Front end support part
12 - Bolt
❑ 5 Nm
13 - Left headlight main beam bulb -M30- / right headlight main beam bulb -M32-
❑ Bulb: 12 V 15/55 W
❑ Renewing ⇒ page 220
14 - Left side light bulb -M1- / right side light bulb -M3-
❑ Bulb: 12 V/5 W
❑ Renewing ⇒ page 222
15 - Bulb holder with grip
16 - Front left turn signal bulb -M5- / front right turn signal bulb -M7-
❑ Bulb: 12 V/24 W
❑ Renewing ⇒ page 223
17 - Bulb holder with grip
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
2. Headlights with halogen bulbs (from MY2009) 237
