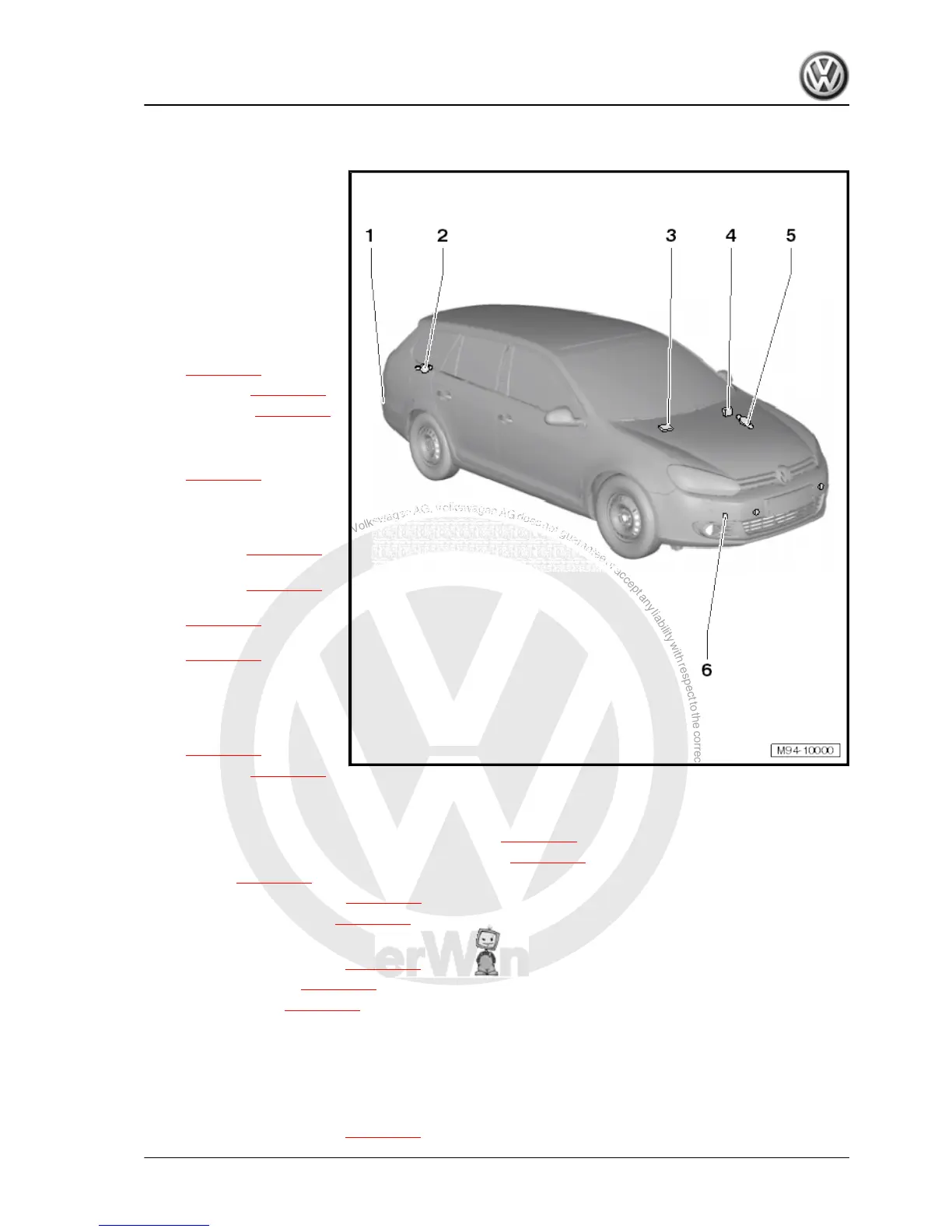

14.3 Assembly overview - 8-channel parking aid
1 - Parking aid senders in rear
bumper cover
❑ Rear left parking aid
sender -G203-
❑ Rear centre left parking
aid sender -G204-
❑ Rear centre right park‐
ing aid sender -G205-
❑ Rear right parking aid
sender -G206-
❑ Removing and installing
⇒ page 342
❑ Checking ⇒ page 350
❑ Renewing ⇒ page 349
❑ Renew sender and
sender holder in the
event of repair
⇒ page 347 .
2 - Rear parking aid warning
buzzer -H15-
❑ Saloon: removing and
installing ⇒ page 351
❑ Variant: removing and
installing ⇒ page 351
❑ Adjusting volume
⇒ page 352
❑ Adjusting pitch
⇒ page 352
3 - Parking aid button -E266-
❑ In centre console next to
gear lever
❑ Removing and installing
⇒ page 418
❑ Checking ⇒ page 355
4 - Parking aid control unit -J446-
❑ Above relay carrier in driver's footwell
❑ Removing and installing (left-hand drive vehicle) ⇒ page 339
❑ Removing and installing (right-hand drive vehicle) ⇒ page 340
❑ Coding ⇒ page 341
❑ Adjusting optical display ⇒ page 341
❑ Final control diagnosis ⇒ page 354 .
5 - Front parking aid warning buzzer -H22-
❑ Removing and installing ⇒ page 353
❑ Adjusting volume ⇒ page 353
❑ Adjusting pitch ⇒ page 354
6 - Sender for parking aid in front bumper cover
❑ Front left parking aid sender -G255-
❑ Front centre left parking aid sender -G254-
❑ Front centre right parking aid sender -G253-
❑ Front right parking aid sender -G252-
❑ Removing and installing ⇒ page 345
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
14. Parking aid 337
