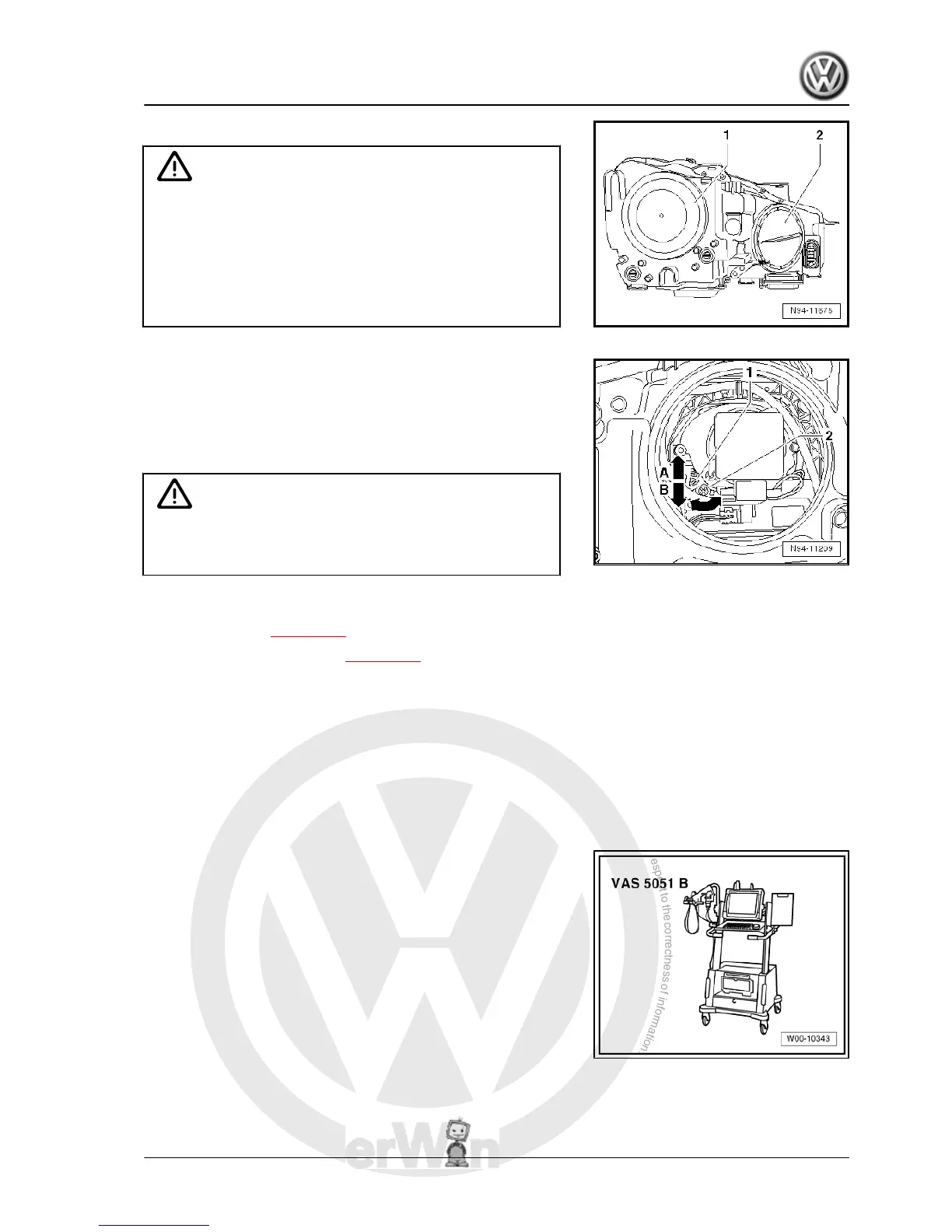

– Remove cover cap -1-.
WARNING
♦ Within the glass envelope of a gas discharge bulb, pres‐
sure can range from between 7 bar (cold) and 100 bar
(hot). Temperatures can reach up to 700 degrees Celsius
on the glass bulb. The reflector is therefore hot as well.
♦ There is a risk of injury from burning.
♦ Always allow the headlight to cool for a sufficient period of
time.
– Turn the regulator -2- in desired direction with an appropriate
cross-head screwdriver.
Lever -1- moves then into position - A- or -B-.
Lever -1- up = driving on left -A-
Lever -1- down = driving on right -B-
Caution
When installing cover cap, ensure cap is seated correctly. The
ingress of water will lead to permanent damage to the head‐
light.
– Lock headlight housing with cover cap again.
– Install headlight ⇒ page 280 .
– Deactivating cornering light ⇒ page 295 .
– Check headlight functions.
– Check headlight settings and adjust headlights if necessary
⇒ Maintenance ; Booklet 20.1 ; Descriptions of work .
– Convert second headlight in the same way.
4.14.2 Deactivating cornering light function
when converting headlights
Special tools and workshop equipment required
♦ Vehicle diagnosis, testing and information system -VAS
5051B-
If the headlights with gas discharge bulbs and cornering lights are
converted to the direction of traffic (driving on the left or right)
relevant to the country in which the vehicle is being driven using
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
4. Headlights with gas discharge bulbs and cornering lights (from MY2010) 295
