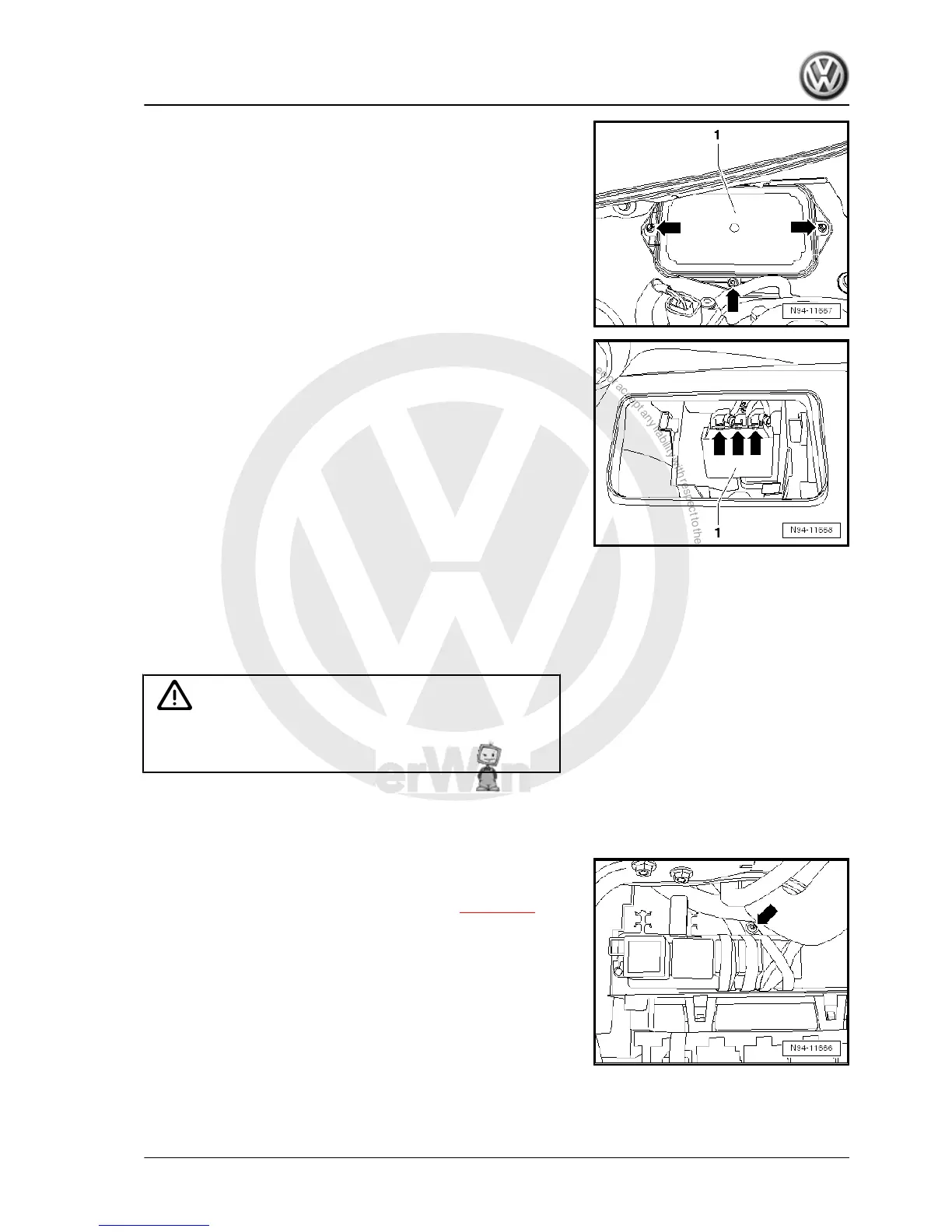

– Remove the three nuts -arrows- and remove cover -1-.
– Detach the three connectors -arrows- and remove the park
assist steering control unit -J791- -1- upwards out of bracket.
Installing
Install in the reverse order of removal. When doing this, note the
following:
– Tighten bolt of park assist steering control unit -J791- to
1.5 Nm.
15.3.2 Removing and installing park assist
steering control unit -J791- (right-hand
drive vehicle)
The park assist steering control unit -J791- is located in the driv‐
er's footwell, above the relay carrier.
Caution
♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
Removing
– Remove trim in driver's footwell ⇒ General body repairs, in‐
terior; Rep. gr. 68 .
– Remove securing screw -arrow- for park assist steering con‐
trol unit -J791- above relay carrier.
– Remove data bus diagnostic interface -J533- ⇒ page 452 .
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
15. Park assist steering 361
