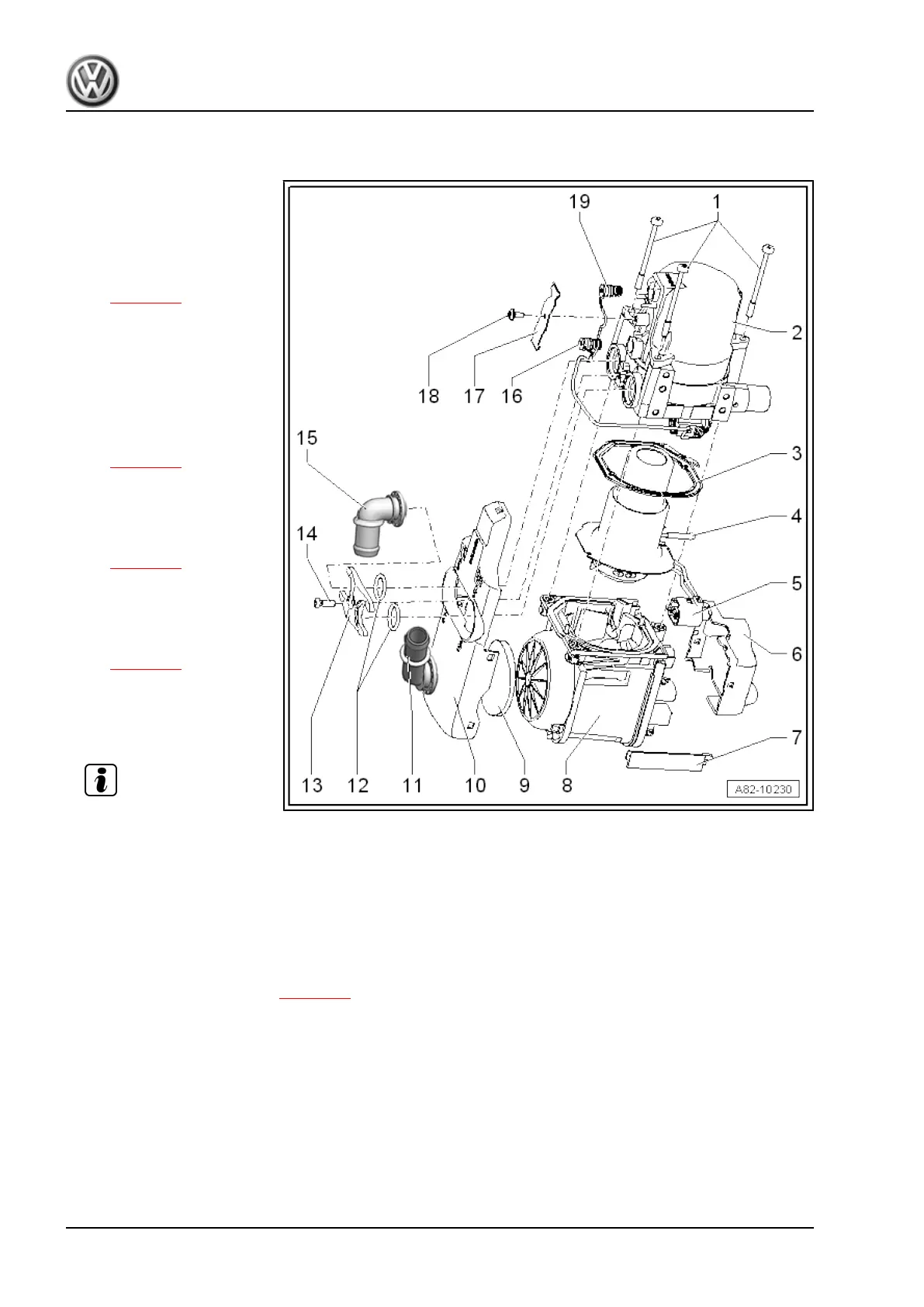

2.2 Assembly overview - auxiliary/supplementary heater, internal
1 - Bolts
❑ Qty. 3
❑ 7 Nm
2 - Heat exchanger
❑ Removing and installing
⇒ page 20
3 - Seal
❑ Must be renewed each
time after opening
❑ Observe installation po‐
sition
4 - Combustion chamber insert
❑ Removing and installing
⇒ page 20
5 - Glow plug with flame moni‐
tor - Q8-
❑ Must be properly seated
❑ Removing and installing
⇒ page 21
6 - Cover
❑ For auxiliary heater con‐
trol unit - J364-
❑ Removing and installing
⇒ page 19
7 - Cover
8 - Auxiliary heater control unit
- J364- with combustion air
blower - V6-
Note
The auxiliary heater control unit -
J364- and the combustion air blower
- V6- with housing form one compo‐
nent and cannot be dismantled. The
reason is the seal between the aux‐
iliary heater control unit - J364- and
the housing.
9 - Noise insulation
10 - Cover
❑ Removing and installing ⇒ page 19
11 - Union
❑ Mark installation position before removing
12 - Oil seals
❑ Renew after removal
13 - Support plate
14 - Bolt
❑ 4 Nm
