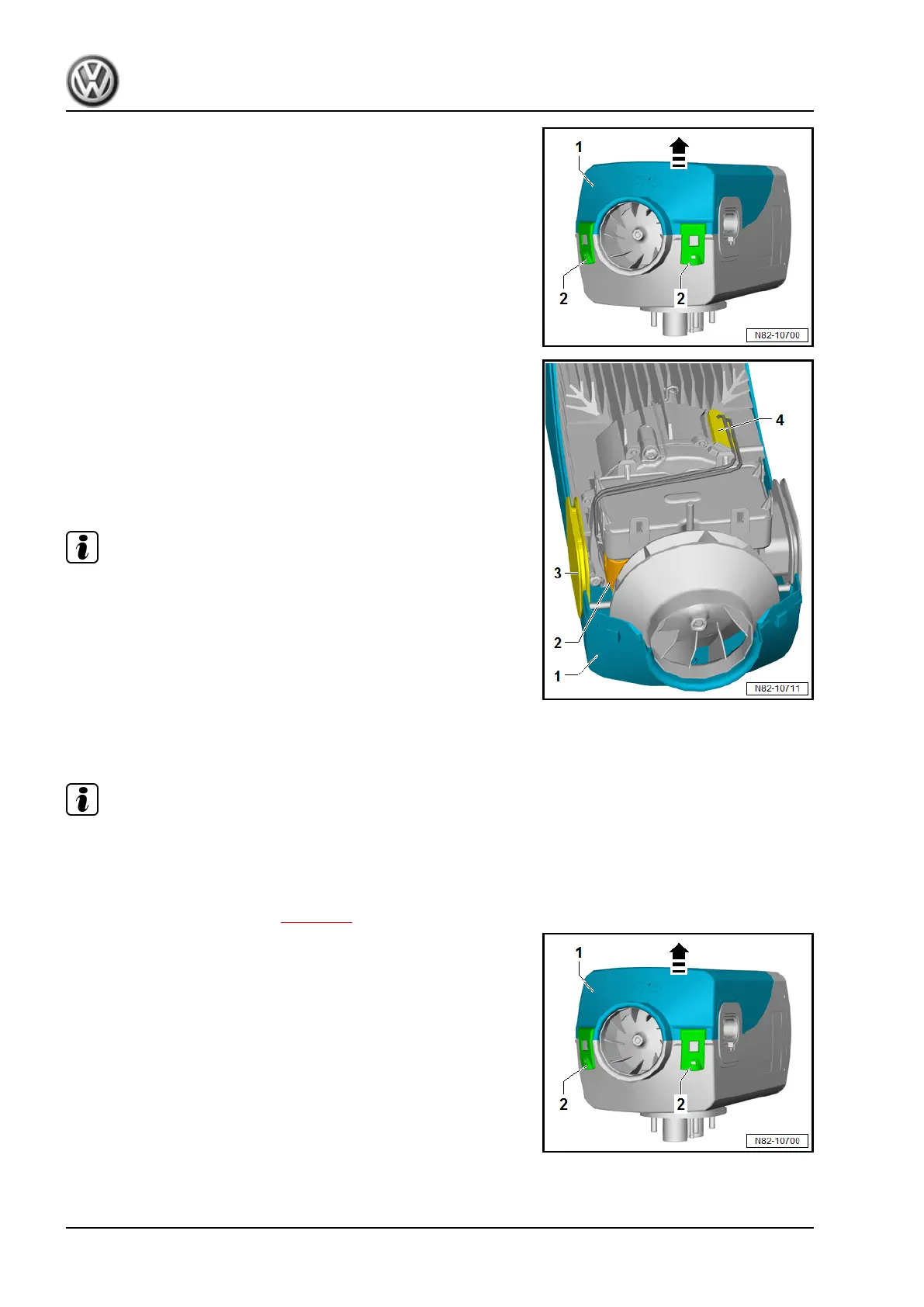

– Release locking tabs -1-.
– Swing cover -2- in direction of -arrow-, and detach it.
– Pull grommet -3- out of lower casing -1-.
– Disconnect electrical connector -2-.
– Lever out grommet -4- with a screwdriver.
– Remove glow plug for heater - Q9- .
Installing
Install in reverse order of removal, observing the following:
Note
Make sure that the locking element of the electrical connector for
the glow plug for heater - Q9- points towards the combustion air
blower 2 - V385- .
7.11 Removing and installing flame monitor -
G64- and combination sensor
Note
The combination sensor comprises the flame monitor - G64- and
overheating sensor - G189- in one component.
Removing
– Remove auxiliary air heater ⇒ page 36 .
– Release locking tabs -2-.
– Swing cover -1- in direction of -arrow-, and detach it.
