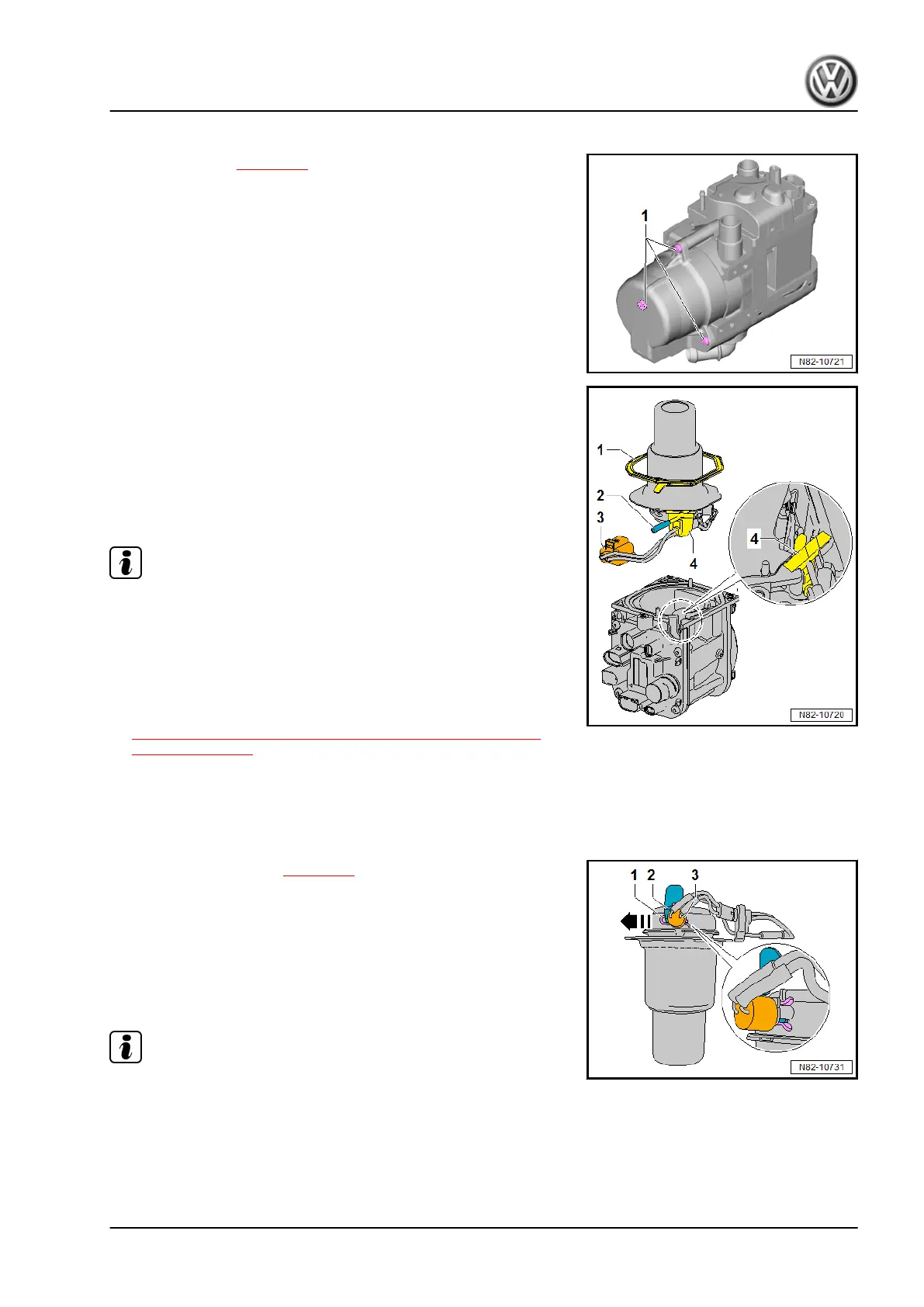

Dismantling
– Remove cover ⇒ page 19 .
– Unscrew bolts -1-.
– Separate electrical connectors from temperature sensor -
G18- and overheating sensor - G189- .
– Pull heat exchanger off blower housing.
– Remove seal -1-.
– Disconnect electrical connector -3-.
– Remove battery unit.
Installing
Assemble in the reverse order of dismantling, observing the fol‐
lowing:
Note
Make sure that the gasket -1-, the grommet -4- and the fuel con‐
nection -2- are positioned correctly.
– Clean sealing surfaces.
– Renew seal -1-.
Torque settings
♦ ⇒ “2.2 Assembly overview - auxiliary/supplementary heater,
internal”, page 12
2.10 Removing and installing glow plug with
flame monitor - Q8-
Removing
– Dismantle heater unit ⇒ page 20 .
– Pull out retaining spring -1- in direction of -arrow-.
– Remove retaining plate -2- in direction of -arrow-.
– Pull out glow plug with flame monitor - Q8- -3-.
Installing
Install in reverse order of removal, observing the following:
Note
♦
Observe installation position of retaining spring -1- and retain‐
ing plate -2-.
♦
Curvature of retaining spring -1- faces up.
Transporter 2020 ➤
Auxiliary heater - Edition 04.2020
2. Auxiliary/supplementary heater 21
