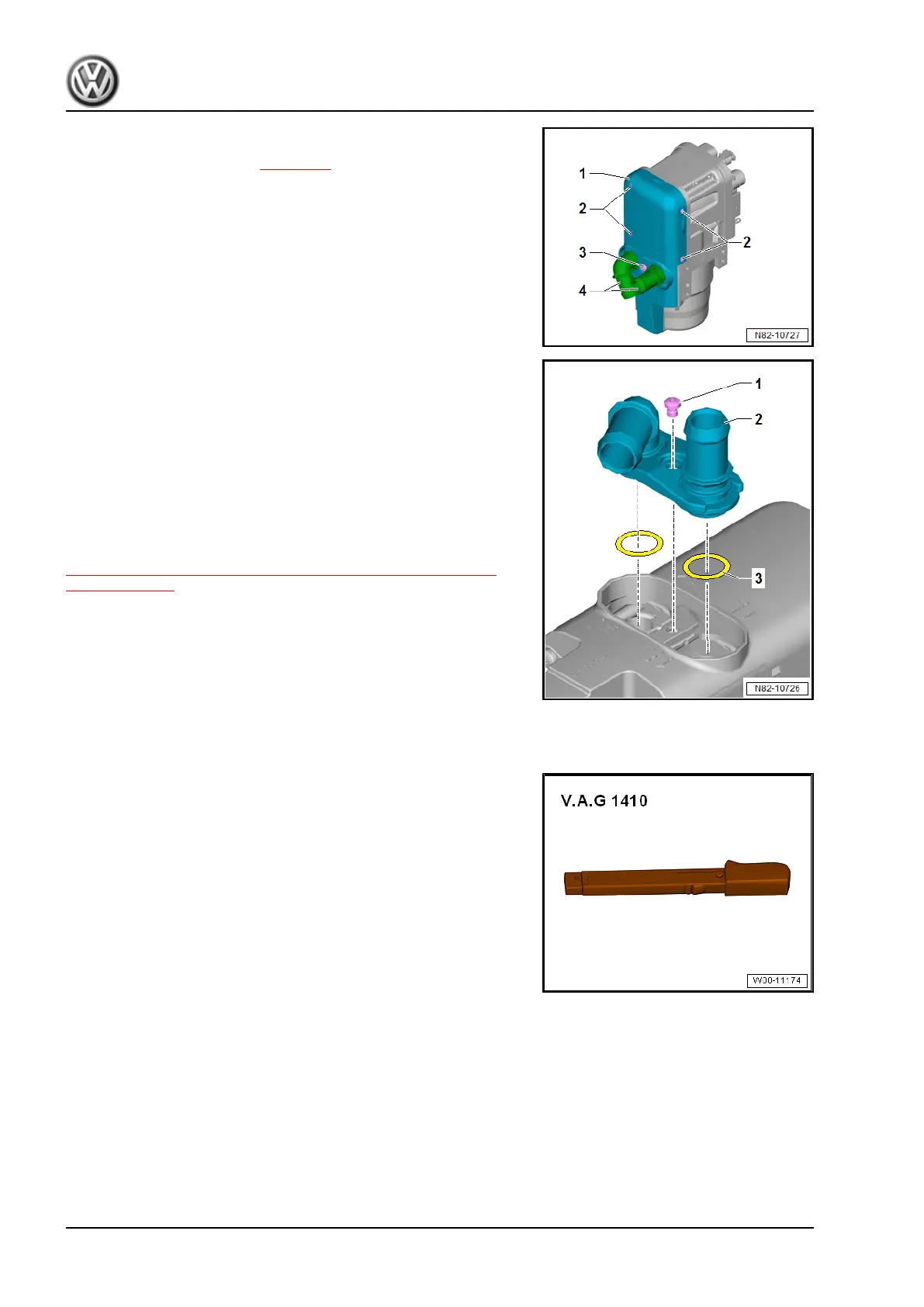

Removing
– Remove auxiliary heater ⇒ page 14 .
– Unscrew bolt -3-.
– Detach coolant connections together with bracket -4-.
– Unclip cover -1- in area -2-.
– Detach cover -1-.
Installing
Install in reverse order of removal, observing the following:
– Check sealing surfaces for soiling and damage.
– Moisten oil seals with coolant before installing coolant con‐
nections.
– Renew oil seals -3-.
– Insert coolant connections together with bracket -2-.
– Tighten bolt -1-.
Torque settings
⇒ “2.2 Assembly overview - auxiliary/supplementary heater, in‐
ternal”, page 12
2.9 Dismantling and assembling heater unit
Special tools and workshop equipment required
♦ Torque wrench - V.A.G 1410-
Transporter 2020 ➤
Auxiliary heater - Edition 04.2020
20 Rep. gr.82 - Supplementary heating
