15 - Union
❑ Mark installation position before removing
16 - Temperature sensor - G18-
❑ Removing and installing ⇒ page 22
17 - Retaining spring
18 - Bolt
❑ 4 Nm
19 - Overheating sensor - G189-
❑ Removing and installing ⇒ page 22

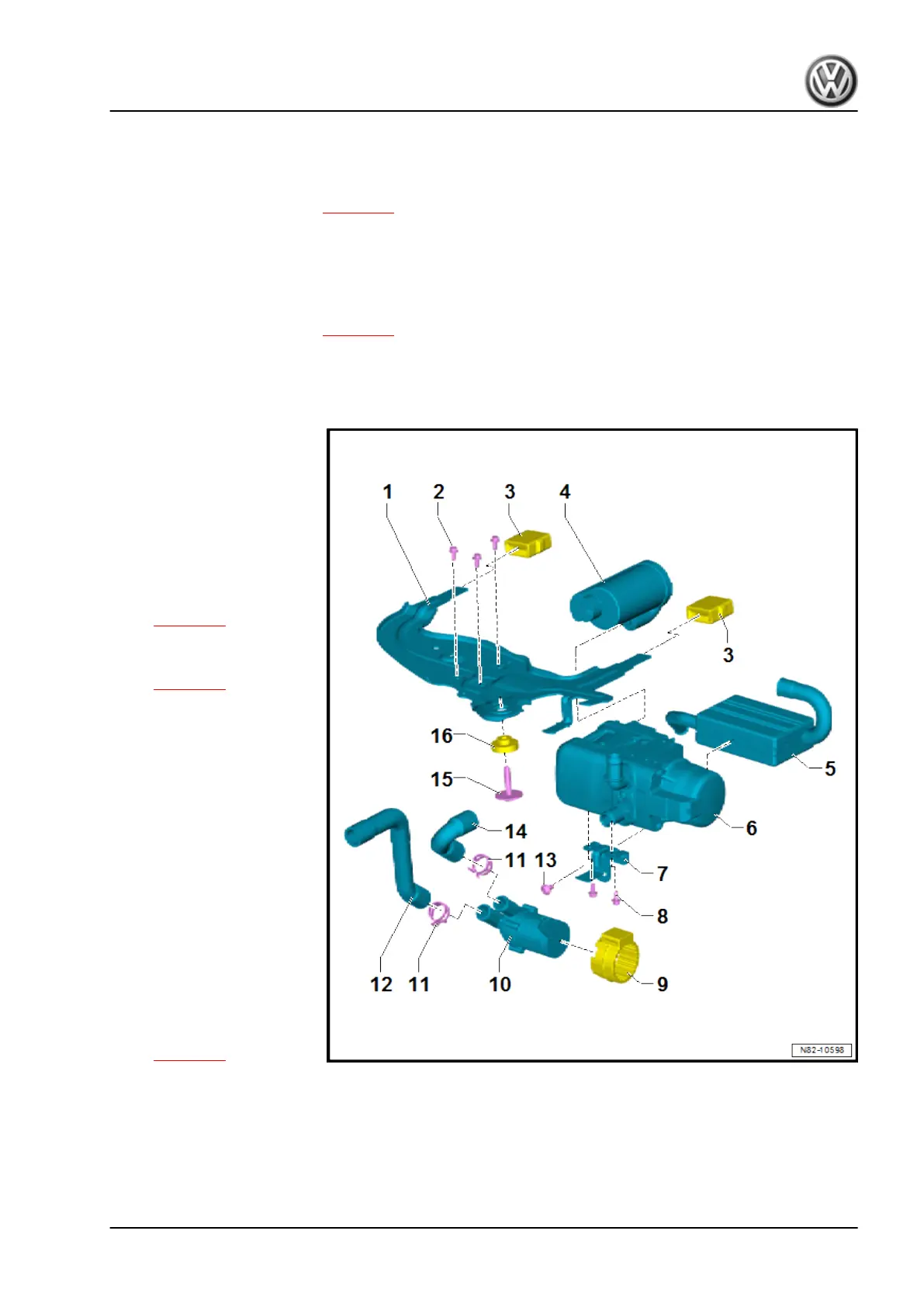

2.3 Assembly overview - auxiliary/supplementary heater attachments
1 - Bracket
❑ For auxiliary heater
2 - Bolts
❑ Qty. 3
❑ 6 Nm
3 - Rubber mounting
4 - Air intake silencer
❑ Removing and installing
⇒ page 16
5 - Exhaust system
❑ Removing and installing
⇒ page 18
6 - Auxiliary/supplementary
heater
7 - Bracket
❑ For circulation pump -
V55- and air intake si‐
lencer
8 - Bolts
❑ Qty. 2
❑ For bracket of circula‐
tion pump - V55- and air
intake silencer
❑ 6 Nm
9 - Bracket
❑ For circulation pump -
V55-
10 - Circulation pump - V55-
❑ Removing and installing
⇒ page 16
11 - Clamp
12 - Coolant hose
13 - Bolt
❑ 8 Nm
Transporter 2020 ➤
Auxiliary heater - Edition 04.2020
2. Auxiliary/supplementary heater 13
