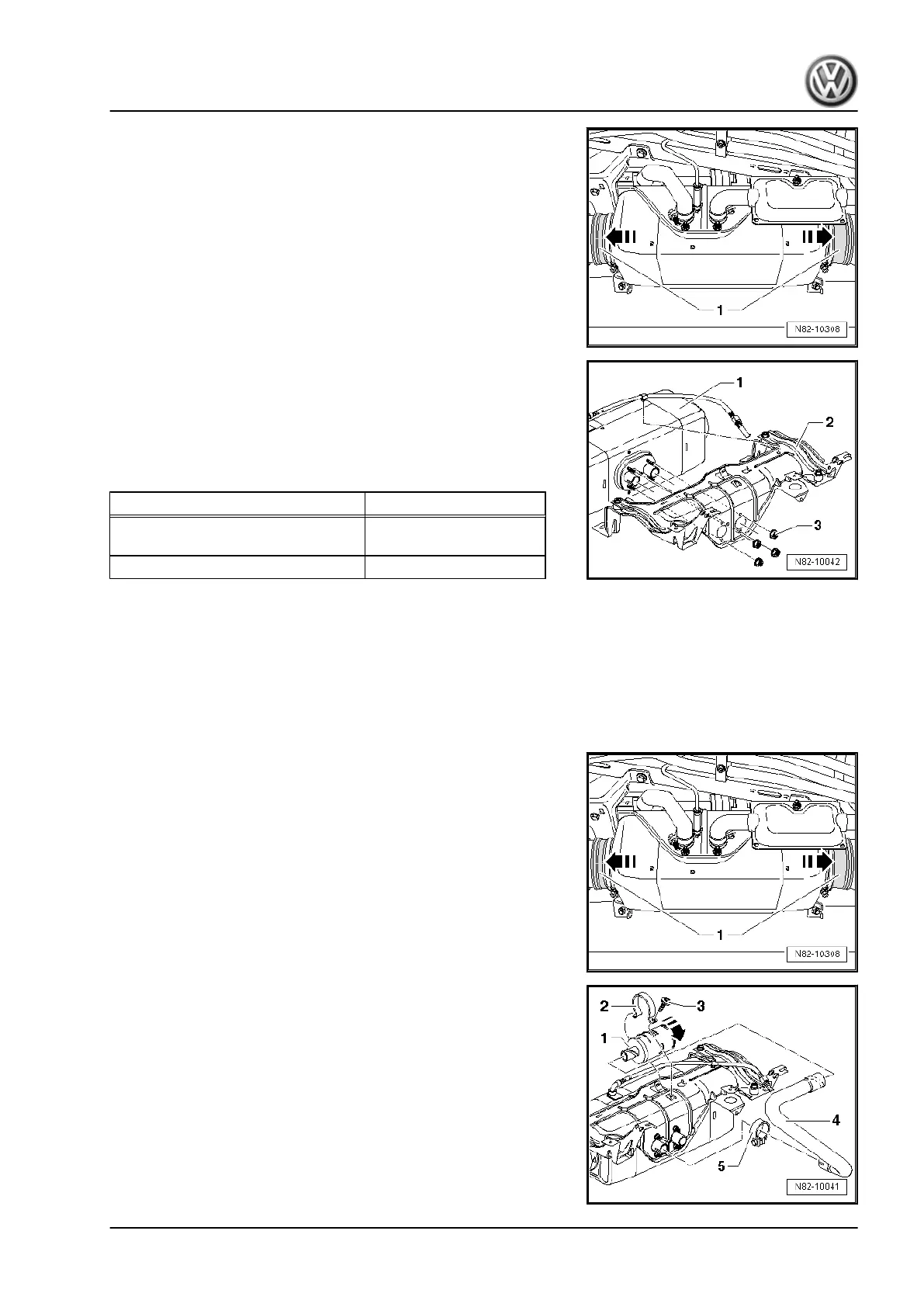

– Push connecting elements in direction of -arrow-.
– Unscrew nuts -3-.
– Remove auxiliary air heater -1- from bracket -2-.
Installing
Install in reverse order of removal, observing the following:
Torque settings
Component Specified torque
Bolts for securing auxiliary heater to
underbody
8 Nm
Collar nuts on auxiliary heater 8 Nm
7.3 Removing and installing air intake si‐
lencer
Removing
– If fitted, unbolt stone deflector strip.
– Detach clamps or cable ties at connecting elements of air
ducts -1-.
– Push air ducts in direction of -arrow- off auxiliary air heater.
– Unscrew bolts from bracket of auxiliary air heater.
– Lower auxiliary air heater.
– Secure auxiliary air heater to body, e.g. with a welding wire.
– Unscrew bolt -3-.
– Remove clamp -2-.
– Unscrew air intake silencer -1- in direction of arrow.
– Loosen clamp -5-.
– Remove air intake silencer -4- from auxiliary air heater.
Installing
Install in reverse order of removal.
Transporter 2020 ➤
Auxiliary heater - Edition 04.2020
7. Auxiliary air heater 39
