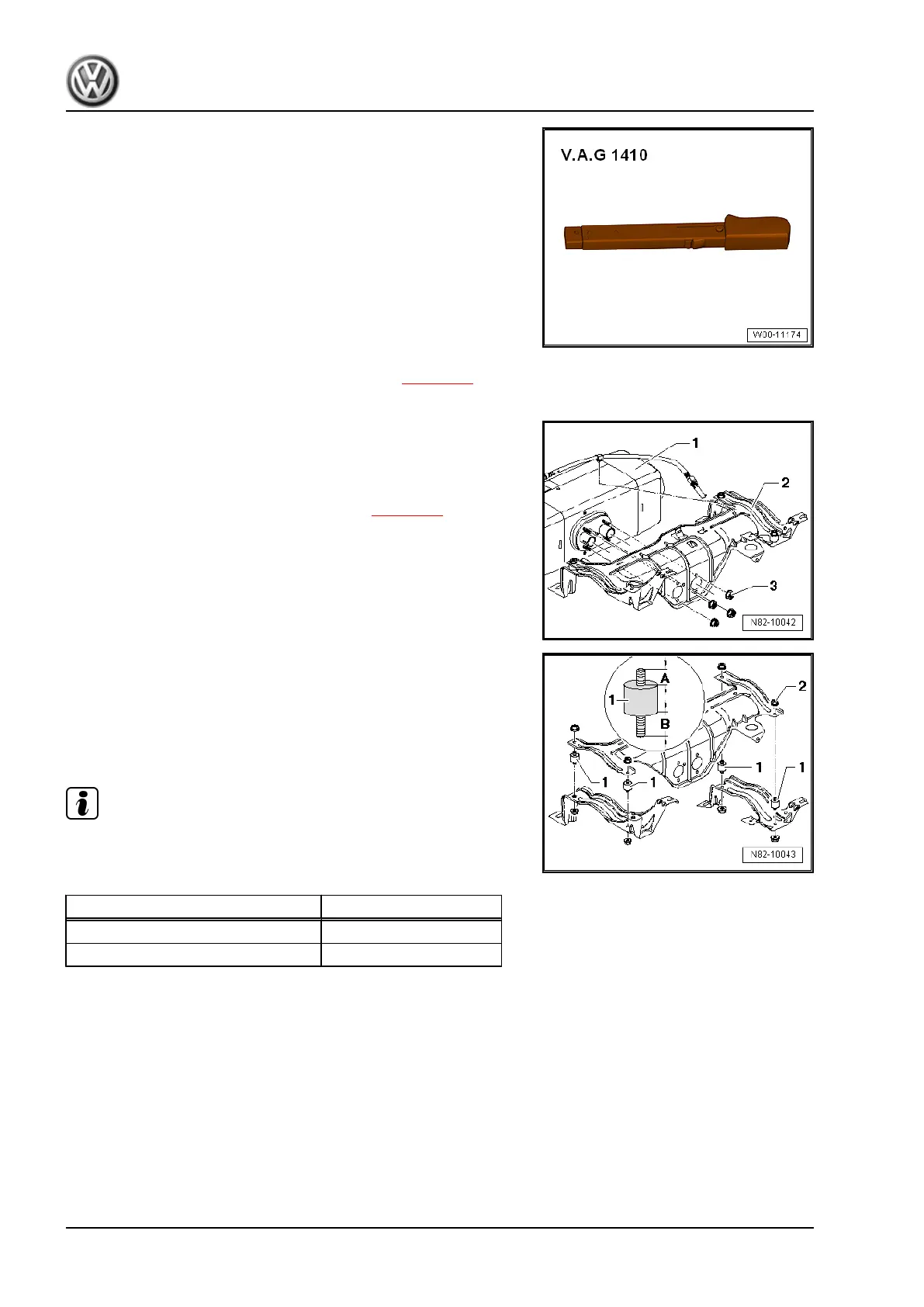

♦ Torque wrench - V.A.G 1410-
– Removing auxiliary air heater without bracket ⇒ page 42 .
– If fitted, unbolt stone deflector strip.
– Unscrew nuts -3-.
– Remove bracket -2- from auxiliary air heater -1-.
Dismantling bracket
– Remove bracket from auxiliary air heater ⇒ page 41 .
The complete bracket consists of 3 parts, each connected to a
rubber buffer.
Rubber buffers -1- are secured by means of hexagon nuts -2-.
♦ Dimension -A- = 10 mm
♦ Dimension -B- = 16 mm
Note
During installation, dimension -A- must face upwards.
Torque settings
Component Specified torque
Nuts securing rubber buffers 8 Nm
Nuts securing auxiliary heater 8 Nm
7.7 Removing and installing auxiliary air
heater control unit - J604-
Special tools and workshop equipment required
Transporter 2020 ➤
Auxiliary heater - Edition 04.2020
42 Rep. gr.82 - Supplementary heating
