7.8 Removing and installing heater in hous‐
ing
Removing

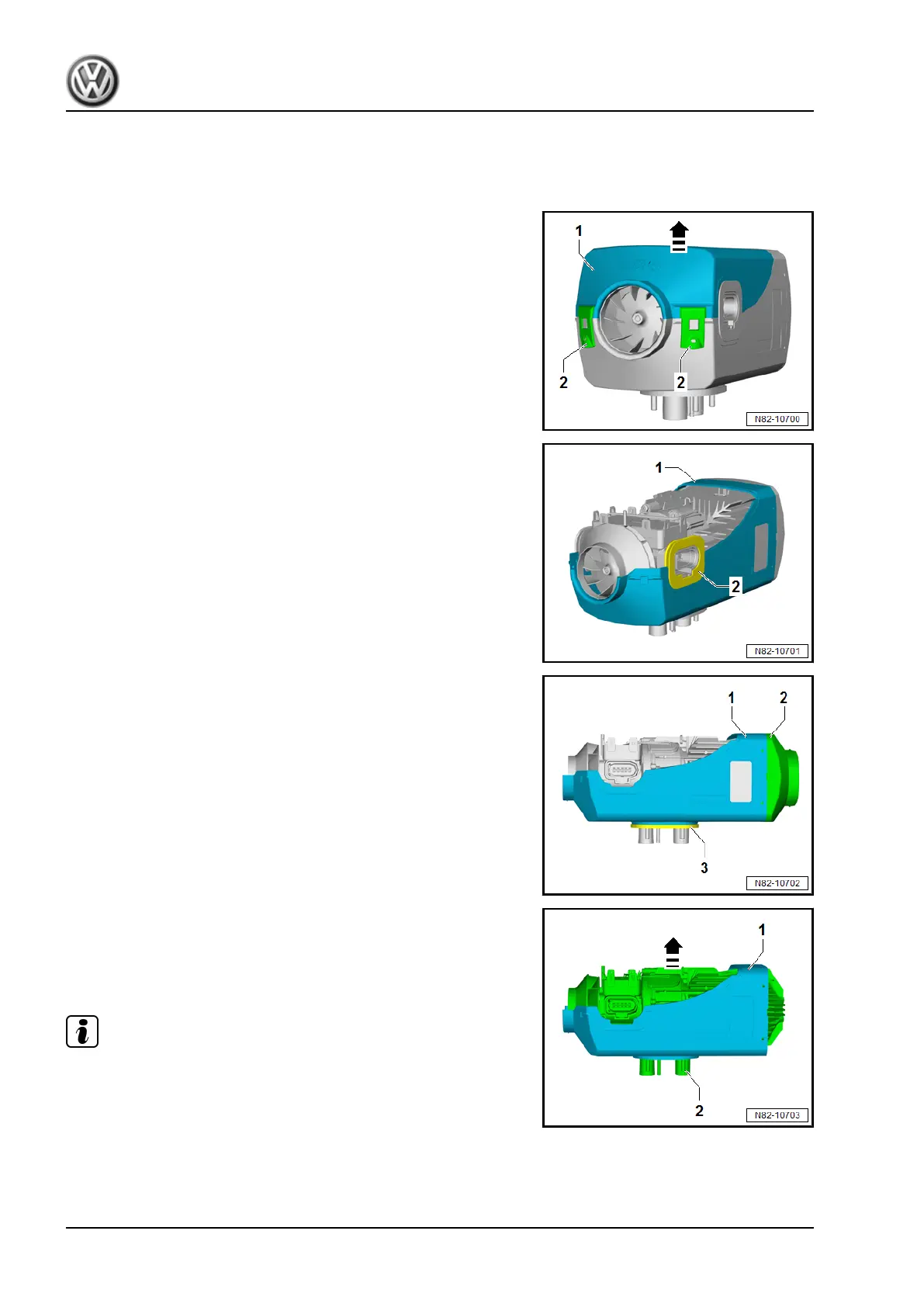

– Release locking tabs -2-.
– Swing cover -1- in direction of -arrow-, and detach it.
– Remove connector grommet -2- from lower casing -1-.
– Pull air outlet cowling -2- off lower casing -1-.
– Pull off flange seal -3-.
– Swing heater unit -2- in direction of -arrow- out of lower casing
-1-, and remove it.
Installing
Install in reverse order of removal, observing the following:
Note
If the lower casing is to be renewed, attach a new type plate, and
transfer the data from the old type plate to the new one.
Installing
Install in reverse order of removal, observing the following:
– Before installing, check flange seal of heater unit for damage.
Renew if necessary.
Transporter 2020 ➤
Auxiliary heater - Edition 04.2020
44 Rep. gr.82 - Supplementary heating
