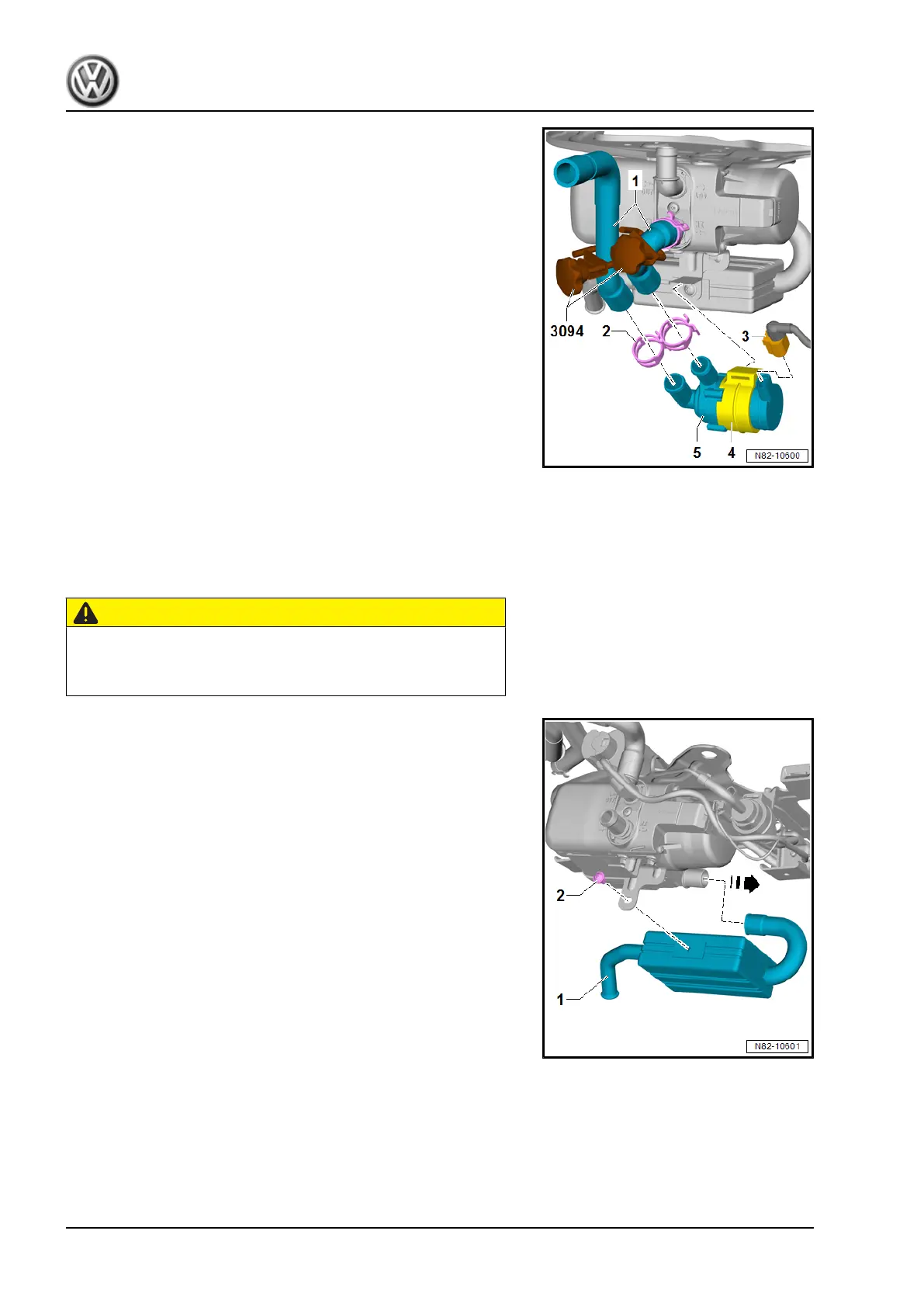

– Clamp off coolant hoses -1- on circulation pump - V55- -5- us‐
ing hose clamps, up to 25 mm - 3094- .
– Disconnect electrical connector -3-.
– Loosen hose clips -2- and pull off coolant hoses.
– Pull coolant hoses -1- off circulation pump - V55- -5-.
– Pull off rubber mounting -4- with circulation pump - V55- -5-
from bracket.
Installing
Install in reverse order of removal, observing the following:
– Bleed cooling system ⇒ Rep. gr. 19 ; Cooling system, coolant;
Draining and filling with coolant .
2.7 Removing and installing exhaust system
Removing
– Remove left underbody cladding ⇒ General body repairs, ex‐
terior; Rep. gr. 66 ; Underbody cladding; Assembly overview
- underbody cladding .
CAUTION
Danger of severe burns from hot exhaust system.
Risk of burns to hands and other parts of body.
– Allow exhaust system to cool down.
– Unscrew bolt -2-.
– Pull off exhaust system -1- from heat exchanger in direction of
-arrow-.
Installing
Install in reverse order of removal, observing the following:
Risk of damage to lines
Lines may become damaged by moving or hot components.
– Route lines in their original positions.
– Ensure there is sufficient clearance to moving or hot compo‐
nents.
Transporter 2020 ➤
Auxiliary heater - Edition 04.2020
18 Rep. gr.82 - Supplementary heating
