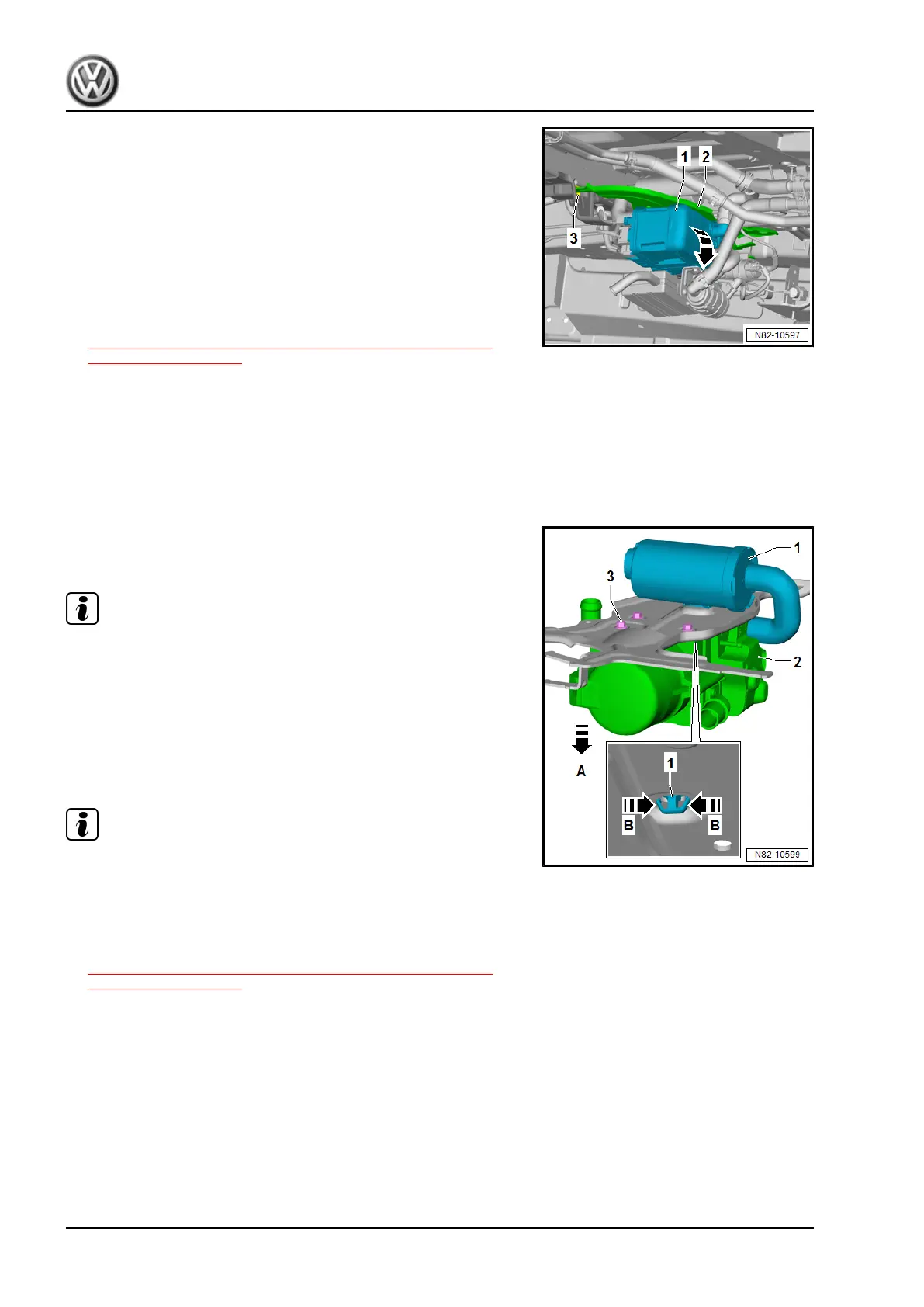

– Lower auxiliary heater -1- with bracket -2- in direction of
-arrow-.
– Pull out auxiliary heater -1- with bracket -2- from rubber mount‐
ings -3-.
Installing
Install in reverse order of removal, observing the following:
– Bleed coolant circuit ⇒ Rep. gr. 19 ; Cooling system, coolant;
Draining and filling coolant .
Torque settings
♦ ⇒ “2.3 Assembly overview - auxiliary/supplementary heater
attachments”, page 13
2.5 Removing and installing air intake si‐
lencer
Removing
– Remove left underbody cladding ⇒ General body repairs, ex‐
terior; Rep. gr. 66 ; Underbody cladding; Assembly overview
- underbody cladding .
– Unscrew bolts -3-.
– Lower auxiliary heater -2- in direction of -arrow A-.
Note
The lines and coolant hoses remain connected.
– Release spreader clip of air intake silencer -1- in direction of
-arrow B-.
– Pull off air intake silencer from auxiliary heater -2-.
Installing
Install in reverse order of removal, observing the following:
Note
♦
The air intake silencer must not touch the auxiliary/supple‐
mentary heater housing.
♦
Do not kink or crush aluminium pipe.
Torque settings
♦ ⇒ “2.3 Assembly overview - auxiliary/supplementary heater
attachments”, page 13
2.6 Removing and installing circulation
pump - V55-
Special tools and workshop equipment required
Transporter 2020 ➤
Auxiliary heater - Edition 04.2020
16 Rep. gr.82 - Supplementary heating
