Alarm handling display
NOTICE! The information in this section is only valid for
type approved installations.
The alarm display shows a summary of current and
historical engine and transmission alerts. Switch
between screens using the button.

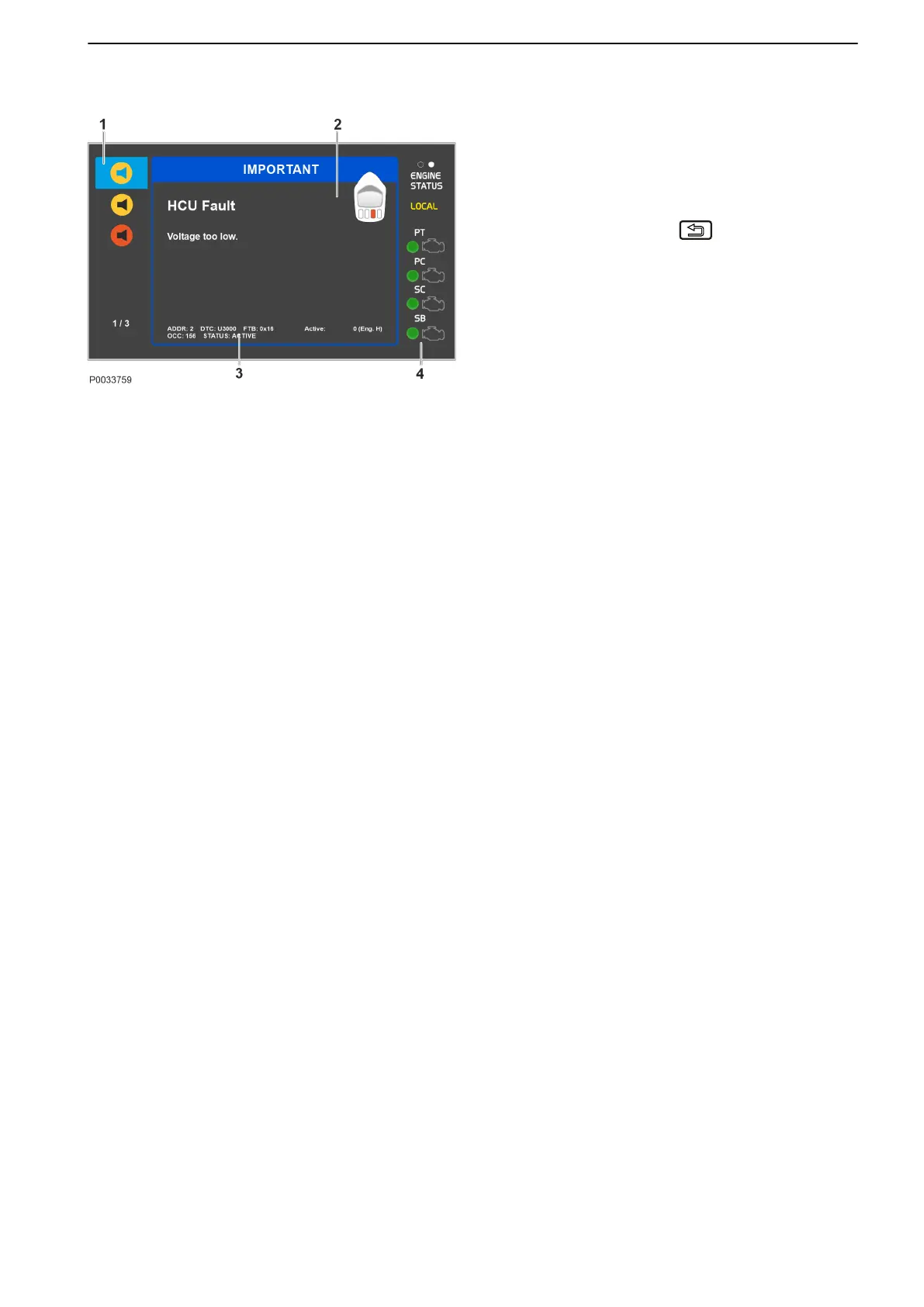

1 Summary of registered engine and transmission
alerts.
Use the knob to browse between alerts.
2 Fault message with description and suggestion for
action.
3 Service information.
4 Engine status; the color of the lamp next to the
engine symbol shows engine status.
Gray lamp; engine stopped.
Green lamp; engine running.
Yellow lamp; minor malfunction.
Red lamp; major malfunction.
If the system detects a fault, the helmsman is alerted
by a message on the display.
In order to show that the screen is functioning correctly
and not has frozen, the two circles in the top right
corner should alternate full/empty-empty/full.
See the chapter entitled Fault handling for more
information about different fault messages and how to
acknowledge them.
Instruments and Controls
47712786 11-2022 © AB VOLVO PENTA 45
