Belts

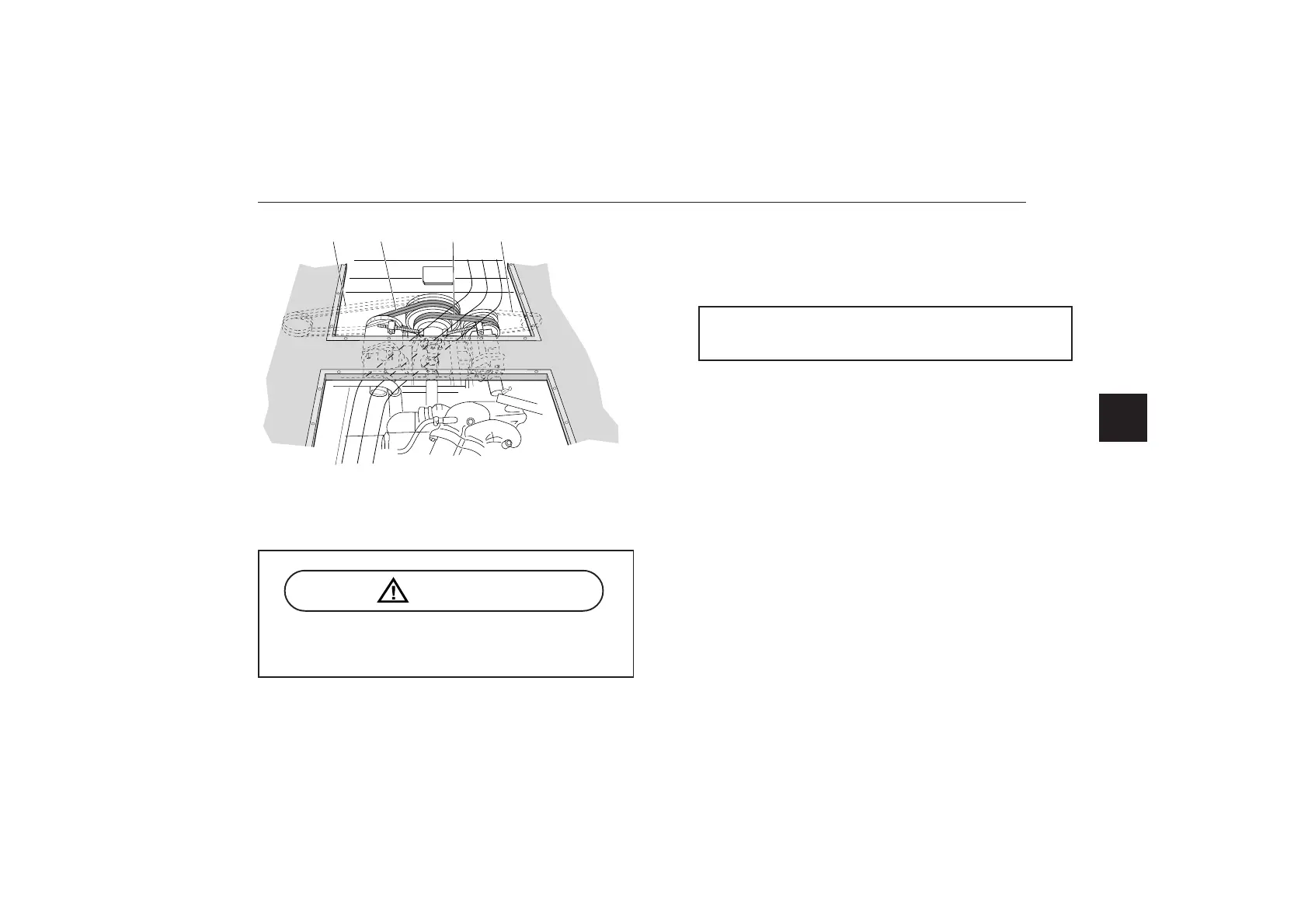

Belts viewed from above/behind through the cover over the engine.
Turn off the battery master switch when working on the
belts to prevent the engine from being started.
Drive belts to auxiliary equipment
Belt-driven auxiliary equipment is always fitted directly in
front of the engine. The belts are accessible for control, ten-
sioning and replacement through the cover over the engine.
To avoid damaging the tensioning device, both fastening
points must be loosened before turning the adjusting nut/
screw!
Always change both belts in a pair at the same time.
Volvo
Belt/s to: Type: part no.
1.alternator 2x55A and 2x80A HC38 x 1200 976490
1.alternator 115A and 180A HC50 x 1150 966846
2.hydraulic pump for fan HC50 x 1150 966846
3.engine compartment fan for
encl. engine compartment HC38 x 1050 978522
4.A/C compressor Not supplied by Volvo
Check belt tension twice after changing. First check after
500–1500 km and second check after 3000–5000 km.
