TP 39129202 C30/S40 (04-)/V50/C70 (06-) 2009 11
F30
F11
F8
F17
F15
F7
F13
F16
F9
F18
F14
F12
F10
F6
F5
F4
F3
F2
F1
F24 F21 F20 F22
F31
F25
F32
F33
F34
F35
F36
F29
F19
F28
F27 F26 F23
G030187
Fuses

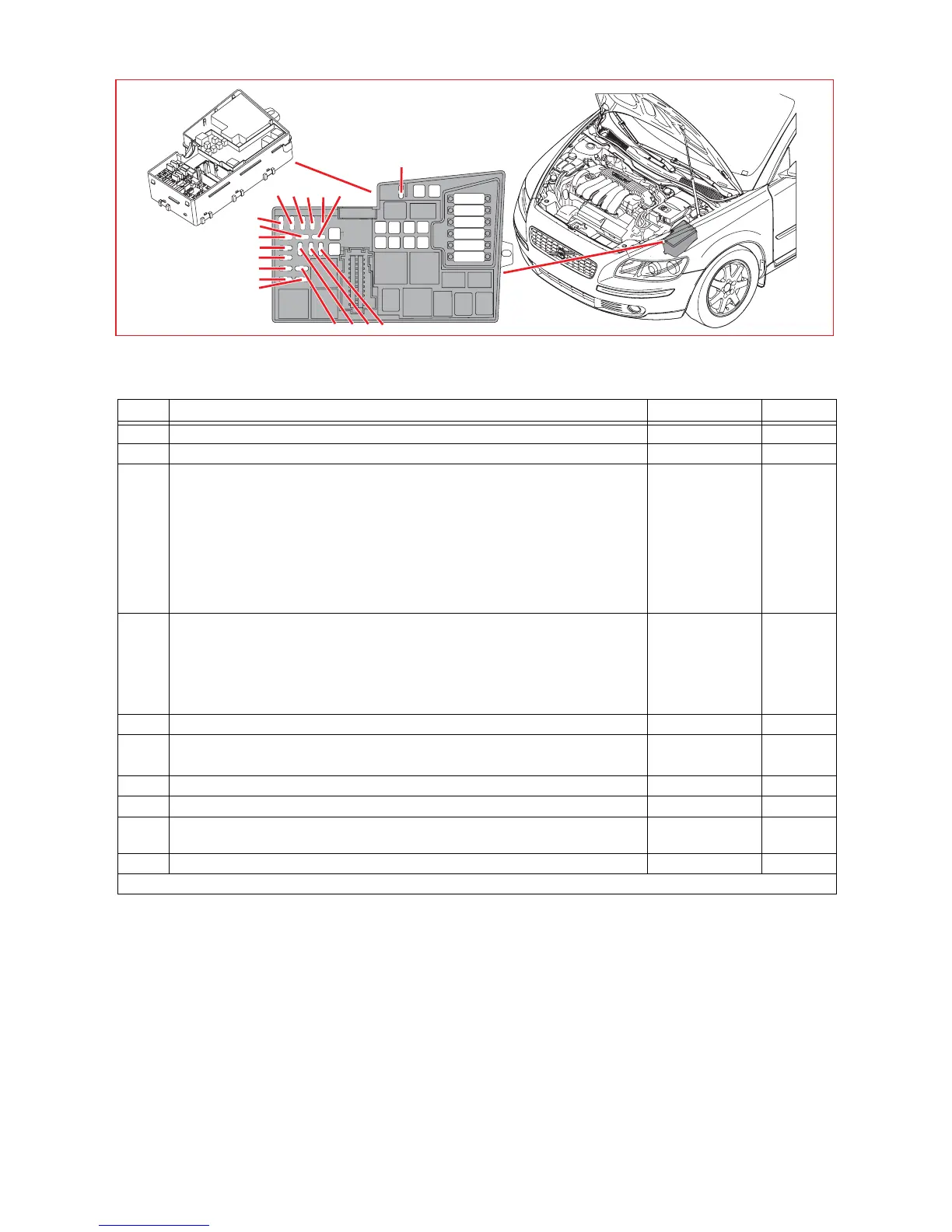

Distribution box in engine compartment F1-F10
15/31 Distribution box in engine compartment
No. Fuse function via A
F1 4/71 Cooling fan control module - 50
F2 6/71 Electrical Power Steering Module (EPS) - 80
F3 2/193 Relay, comfort functions
4/56 Central Electronic Module (CEM)
F45 Fuse in the Central Electronic Module (CEM)
F48-F49 Fuses in the Central Electronic Module (CEM)
F60-F61 Fuses in the Central Electronic Module (CEM)
F62-F63 Fuses in the Central Electronic Module (CEM)
F68-F69 Fuses in the Central Electronic Module (CEM)
F80 Fuse in the Central Electronic Module (CEM)
F84-F85 Fuses in the Central Electronic Module (CEM)
-
2/193
2/193
2/193
2/193
-
2/193
2/193
-
60
F4 2/63 Relay, high beam
4/56 Central Electronic Module (CEM)
F55 Fuses in the Central Electronic Module (CEM)
F58-F59 Fuses in the Central Electronic Module (CEM)
F74 Fuses in the Central Electronic Module (CEM)
F77 Fuses in the Central Electronic Module (CEM)
-
-
-
2/63
-
-
60
F5 9/41 PTC-element - 80
F6 4/109 Glow plug control module (GCU), 5-Cyl. Diesel - 70
20/23-26 Glow plug, 4-Cyl. Diesel 2/14 60
F7 4/16 Brake Control Module (BCM), pump - 30
F8 4/16 Brake Control Module (BCM), valves - 20
F9 2/32 Main relay, engine management system
F32-F36 Fuses in the engine compartment distribution box
-
2/32
30
F10 4/31 Fan control module - 40
continues
