TP 39129202 C30/S40 (04-)/V50/C70 (06-) 2009 19

F86

F64

F65

F43

G030188

Fuses

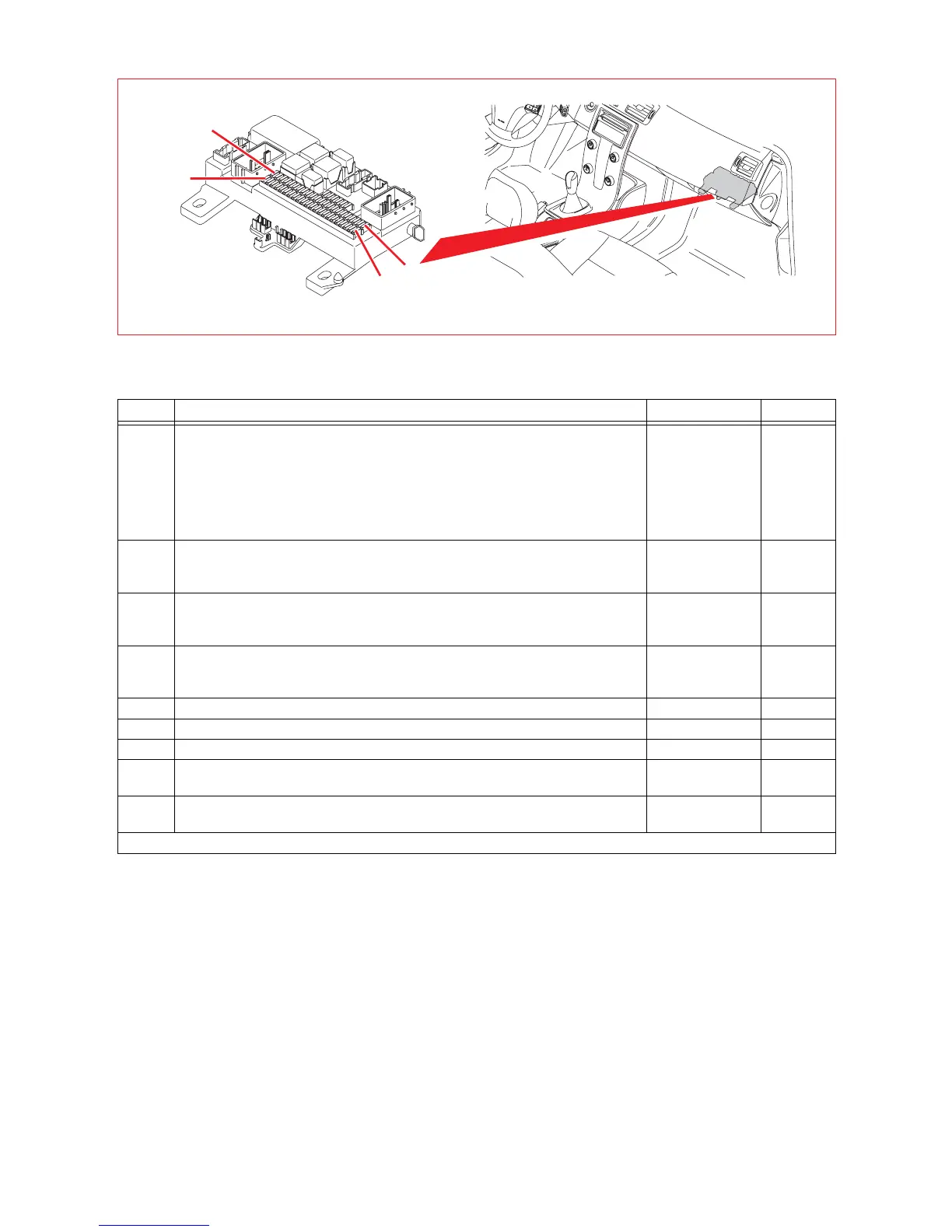

Central Electronic Module (CEM) F73-F85

4/56 Central Electronic Module (CEM)

No. Fuse function via A

F73 3/117 Switch unit, ceiling light

3/217 Belt buckle contact, rear left

3/218 Belt buckle contact, center rear

3/219 Belt buckle contact, rear right

4/33 Sunroof control module

8/48 Auto-dimming rearview mirror

10/22 Ceiling light

F74 4/83 Fuel pump control module, Gasoline

4/111 Additive Dosing Module (ADM)

6/33 Fuel pump

2/23

2/23, 26/5

F77 4/78 Accessory Electronic Module (AEM)

17/19 12V outlet, cargo compartment

17/39 13-pin outlet, tow hitch cable harness

F79 8/48 Auto-dimming rearview mirror

10/48 Right-hand reversing light

10/55 Left-hand reversing light

2/80

F81 3/128 Rear left Door Module (LDM) - 20

F82 3/127 Passenger Door Module (PDM) - 25

F83 3/126 Driver Door Module (DDM) - 25

F84 3/27 Switch unit, power passenger seat

4/54 Power Seat Module (PSM)

F85 3/26 Switch unit, power driver’s seat

4/52 Power Seat Module (PSM)

-25

continues
