Volvo V50 Wiring Diagram

TP 39129202 C30/S40 (04-)/V50/C70 (06-) 2009 14
F30
F11
F8
F17
F15
F7
F13
F16
F9
F18
F14
F12
F10
F6
F5
F4
F3
F2
F1
F24 F21 F20 F22
F31
F25
F32
F33
F34
F35
F36
F29
F19
F28
F27 F26 F23
G030187

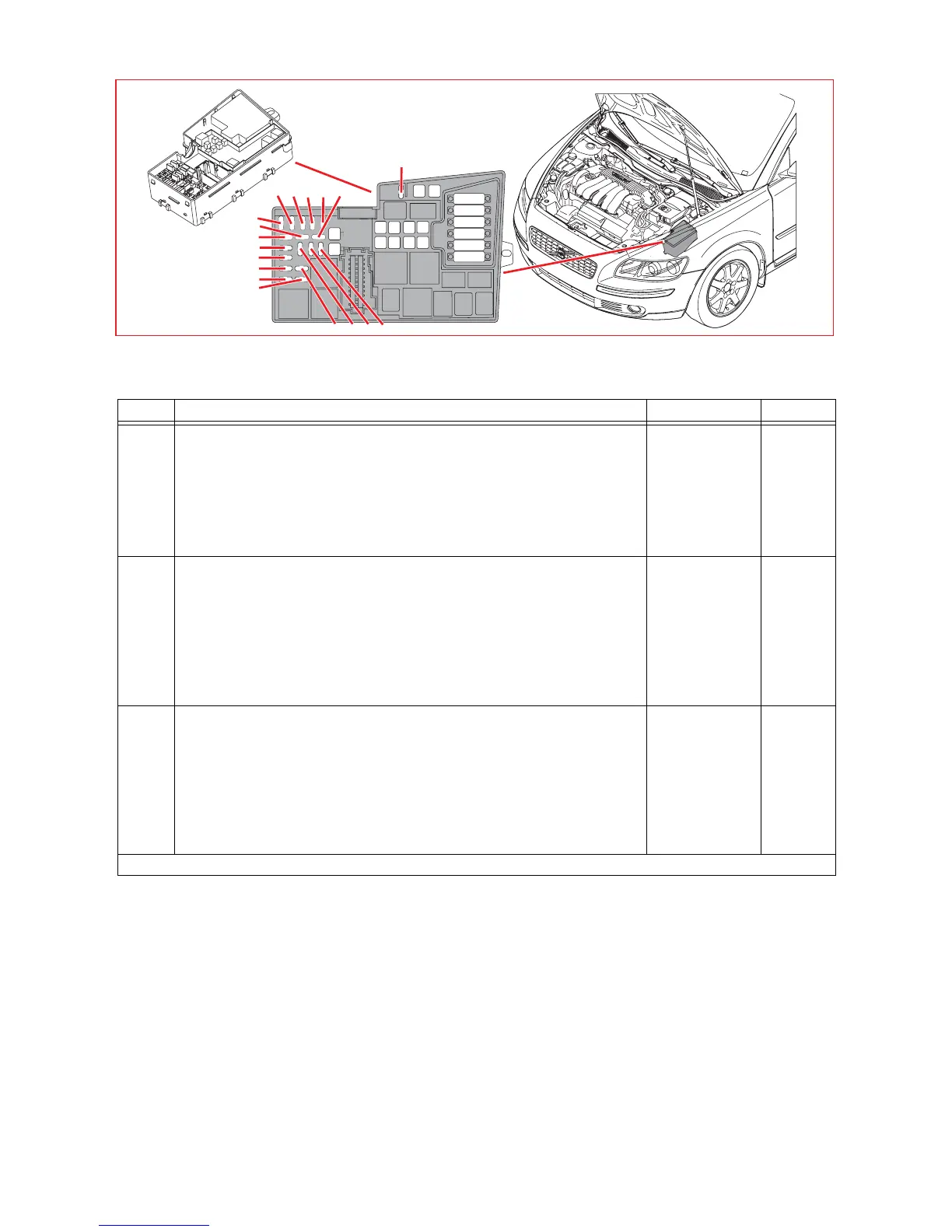

Fuses
Distribution box in engine compartment F32-F34
15/31 Distribution box in engine compartment
No. Fuse function via A
F32 2/14 Relay, glow plug system
6/143 Regulator motor, Turbo
7/15 Front heated oxygen sensor, 4-Cyl.
7/17 Mass air flow sensor (MAF), 5-Cyl. Diesel
7/82 Rear heated oxygen sensor, 4-Cyl.
8/6-8/10 Injection valves, 5-Cyl.
8/121 Coolant valve, 2.0l Diesel
8/122 Bypass valve, intercooler, 1.6l Diesel
-
-
-
-
-
-
-
-
10
F33 4/46 Engine control module (ECM), 5-Cyl. Diesel
6/114 Vacuum pump, 5-Cyl.
7/15 Front heated oxygen sensor, 5-Cyl.
7/82 Rear heated oxygen sensor, 5-Cyl. Turbo
7/186 Heated oxygen sensor, rear, 5-Cyl. without Turbo
7/187 Heated oxygen sensor, center, 5-Cyl. without Turbo
8/84 Switch, vacuum pump
9/32 PTC-resistor, crankcase ventilation, 2.0l. Diesel
9/38 Heated fuel filter, 4-Cyl. Diesel
-
8/84
-
-
-
-
-
-
-
20
F34 4/109 Glow plug control module (GCU), 5-Cyl. Diesel
8/6-8/9 Injection valves, 1.6l.
8/77 Fuel volume control valve, 2.0l Diesel
8/111 Fuel flow control valve, 1.6l Diesel
8/119 Pressure monitor, climate control system, 5-Cyl.
8/120 EGR valve, 5-Cyl. Diesel
8/133 Control valve fuel pressure
20/3 -20/7 Spark plug and ignition coil
20/17 Transformer, ignition coils, 1.6l
-
-
-
-
-
-
-
-
-
10
continues
