TP 39129202 C30/S40 (04-)/V50/C70 (06-) 2009 16
Fuses

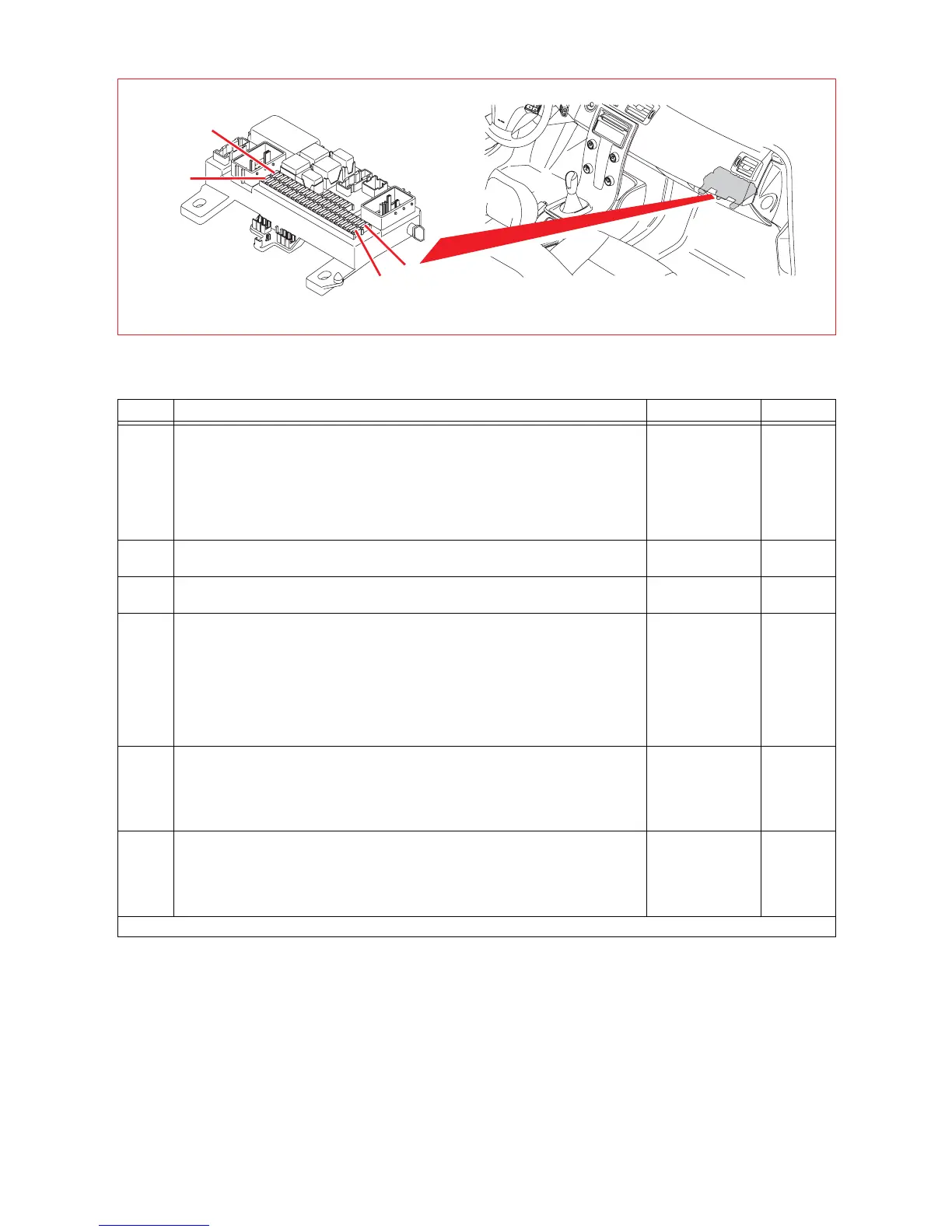

Central Electronic Module (CEM) F43-F48
F86
F64
F65
F43
G030188
4/56 Central Electronic Module (CEM)
No. Fuse function via A
F43 4/124 Accessory USB unit (AUU)
16/1 Integrated Audio Module (IAM)
16/46 RTI Display
16/60 Phone Module (PHM)
16/108 Multimedia Module (MMM)
16/147 Bluetooth Phone Module (BPM)
17/42 USB-port
-
-
-
-
-
-
15
F44 4/46 Engine Control Module (ECM), 5-Cyl.
4/9 Supplemental Restraint System Module (SRS)
-
-
10
F45 9/1 Front 12V outlet
9/25 Rear 12V outlet
-
-
15
F46 3/111 Switch unit, lights
5/1 Driver Information Module (DIM)
10/1 Lamp housing, front left
10/2 Lamp housing, front right
10/29 Glove compartment lighting
10/97 Courtesy lighting, left
10/102 Courtesy lighting, right
Alcolock
-
-
-
-
-
-
-
-
5
F47 4/76 Remote control unit for garage door opener
10/22 Ceiling light
10/150 Rear reading light
10/114 Vanity mirror lighting, left, not C70
10/115 Vanity mirror lighting, right
-
-
-
-
-
5
F48 2/16 Relay, rear window wiper
2/92 Relay, windshield washer motor
2/93 Relay, rear window washer motor
6/2 Washer pump
6/32 Rear window wiper motor
-
-
-
2/92
2/16
15
continues
