TP 39129202 C30/S40 (04-)/V50/C70 (06-) 2009 24

R10

R3 R1

R4R5

R11

R13

R12

R14

G030194

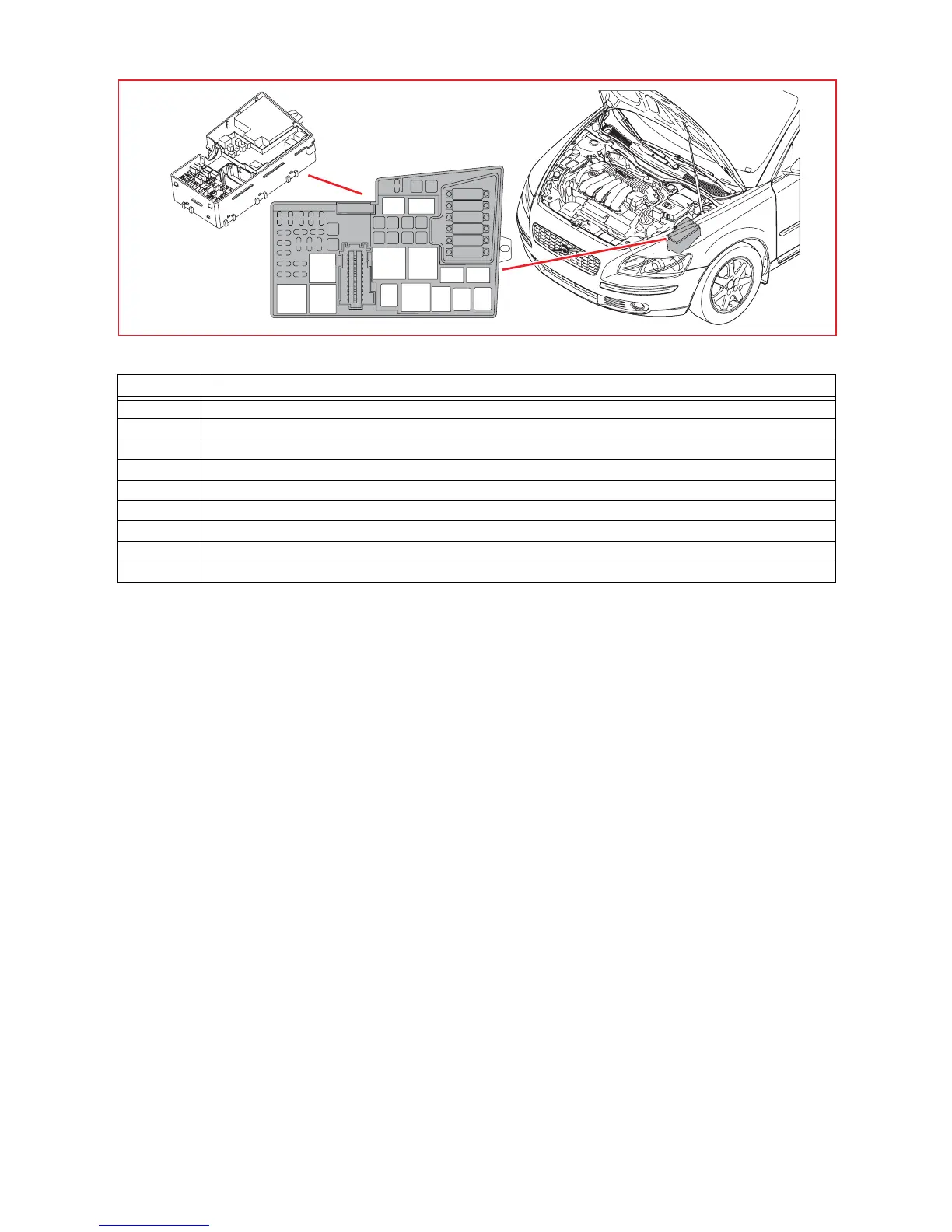

Relays

Distribution box in engine compartment R2-R14

15/31 Distribution box in engine compartment

Pos Relay function

R2 2/17 Relay, horn

R4 2/34 Relay, front fog lights

R5 2/142 Fuel filter preheater relay

R9 2/182 Relay, headlight washer motor

R10 2/82 Relay, heated rear window

R11 2/22 Relay, climate control system

R12 2/14 Relay, glow plug system

R13 2/35 Relay, starter motor

R14 2/32 Main relay, engine management system
