Volvo V50 Wiring Diagram

TP 39129202 C30/S40 (04-)/V50/C70 (06-) 2009 48
Control modules

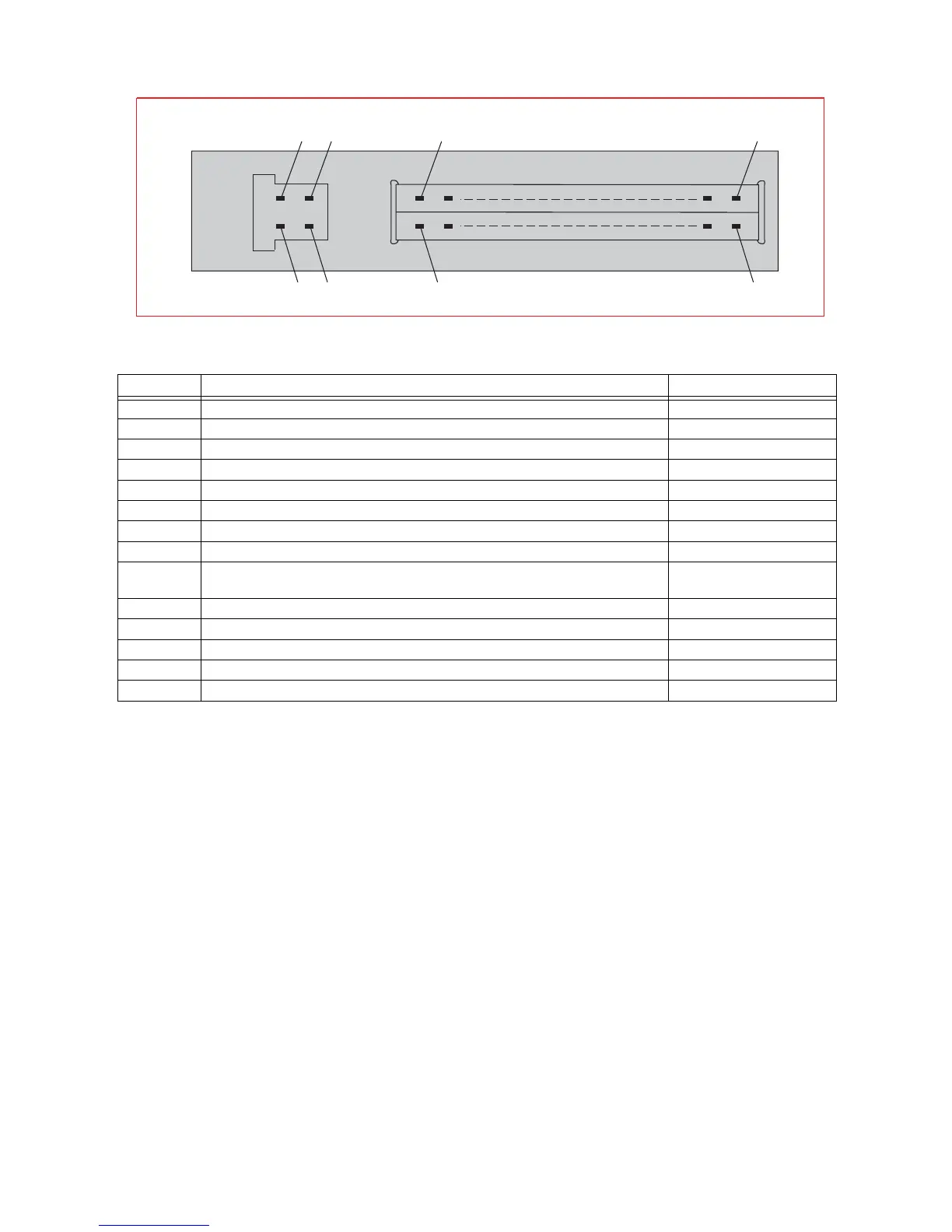

Accessory Electronic Module (AEM)
Pos Function Type
A:1 Electrical distribution Ground
A:2 Electrical distribution Feed
A:3 CAN communication Input/output signals
A:4 CAN communication Input/output signals
B:1 Remote start Feed
B:2 Remote start Ground
B:3 Remote start Input signal
B:4 Electric engine heater Ground
B:5 Electric engine heater Steering, alternating cur-
rent feed
B:11 Handsfree, mute of audio Input signal
B:15 Alarm signal Output signal
B:16 Alarm signal Output signal
B:33 Alarm signal Output signal
B:34 Alarm signal Output signal
B:26
B:1
A:1
A:2
A:3
A:4
B:50
B:25
G029740
