Volvo V50 Wiring Diagram

TP 39129202 C30/S40 (04-)/V50/C70 (06-) 2009 20
F86
F64
F65
F43
G030188
Fuses

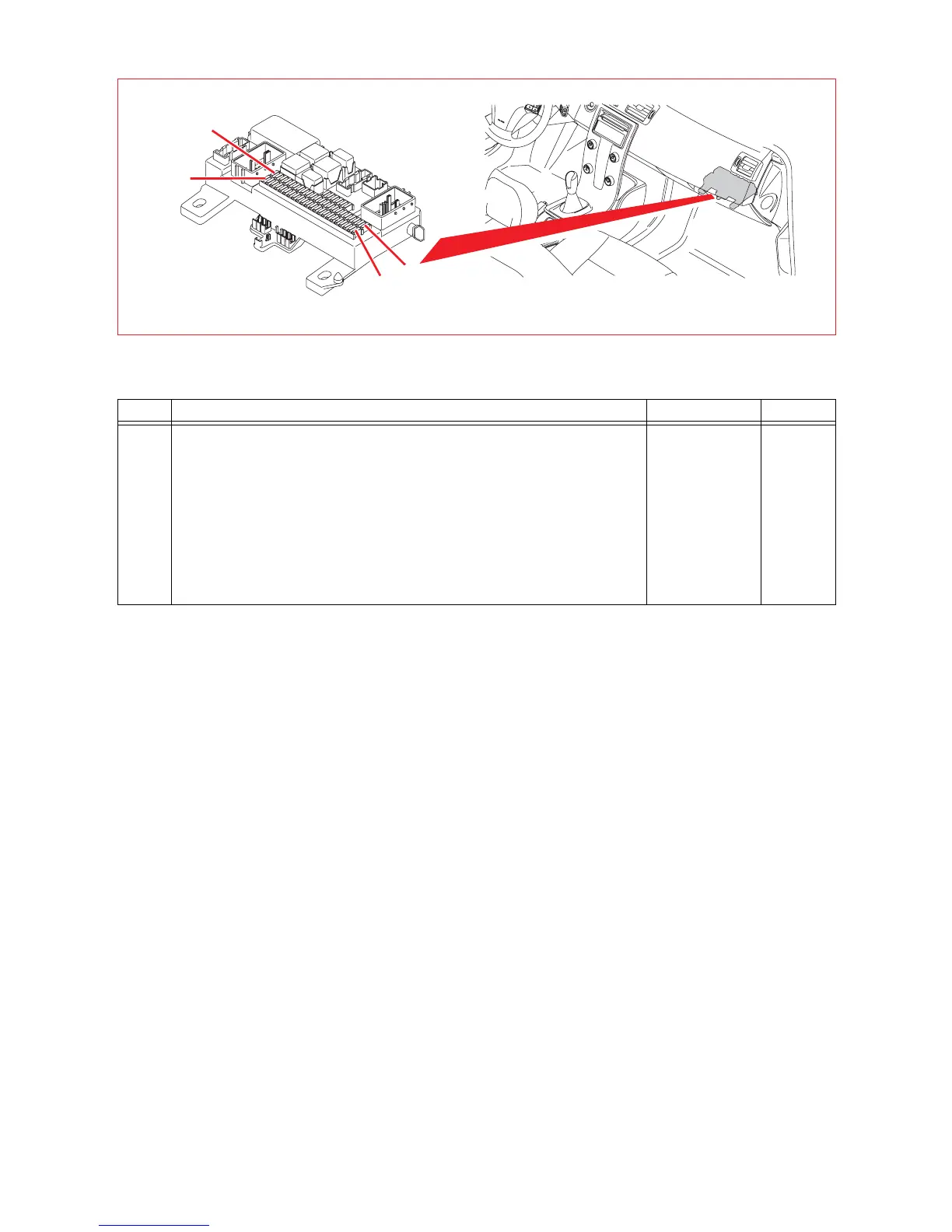

Fuses in the Central electronic module (CEM) F86
4/56 Central Electronic Module (CEM)
No. Fuse function via A
F86 3/26 Switch unit, power driver’s seat
3/27 Switch unit, power passenger seat
3/268 Load assistance switch
4/52 Power Seat Module (PSM)
4/54 Power Seat Module (PSM)
10/24 Cargo compartment lighting
10/25 Ceiling light, cargo compartment
10/26 Reading light, rear left
10/27 Reading light, rear right
10/114 Vanity mirror lighting, left, C70
26/5 DC/AC converter, fuel tank
-
-
-
-
-
-
-
-
-
-
2/23
5
