TP 39129202 C30/S40 (04-)/V50/C70 (06-) 2009 21

PF1

PF2

G030189

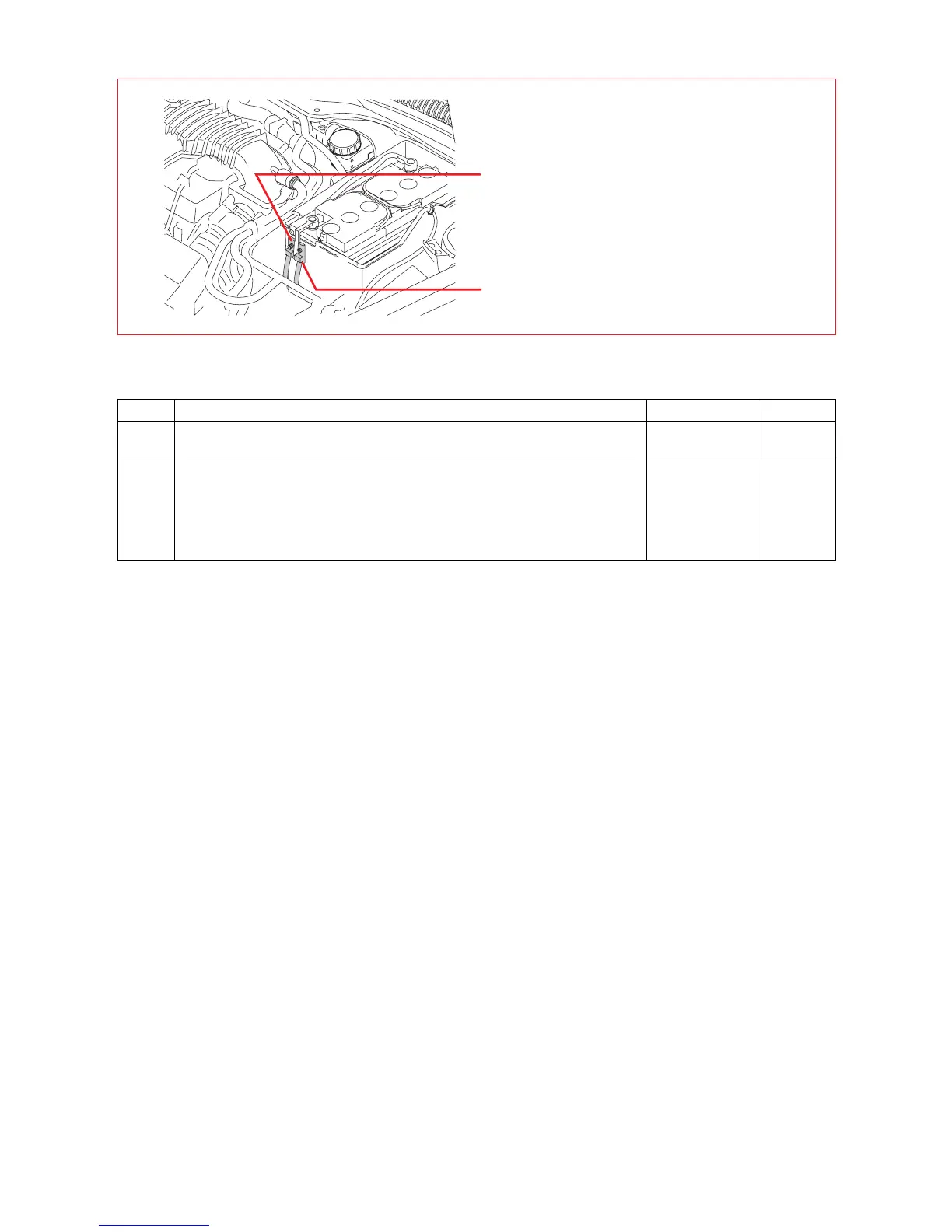

Fuses

Battery PF1-PF2

1/1 Battery

No. Fuse function via A

PF1 6/25 Starter motor

6/26 Alternator

150

PF2 F1-F14 Fuses in the engine compartment distribution box

F16-F18 Fuses in the engine compartment distribution box

F20-F21 Fuses in the engine compartment distribution box

F23-F24 Fuses in the engine compartment distribution box

F26-F27 Fuses in the engine compartment distribution box

F29-F31 Fuses in the engine compartment distribution box

150

Default Chapter1
- Wiring Diagram1
- Vehicles with SRS (Airbag)/Sips Bag/IC2
- (Inflatable Curtain)2
- Table of Contents3
- Abbreviations6
- How to Use the Wiring Diagrams 1:27
- How to Use Wiring Diagrams 2:28
- Electrical Distribution 1:29
Fuses11
- Distribution Box in Engine Compartment F1-F1011
- Distribution Box in Engine Compartment F11-F1812
- Distribution Box in Engine Compartment F20-F3113
- Distribution Box in Engine Compartment F32-F3414
- Distribution Box in Engine Compartment F35-FH115
- Central Electronic Module (CEM) F43-F4816
- Central Electronic Module (CEM) F49-F6117
- Central Electronic Module (CEM) F62-F6918
- Central Electronic Module (CEM) F73-F8519
- Fuses in the Central Electronic Module (CEM) F8620
- Battery PF1-PF221
- Fuses in Holder22
Relays23
- Ignition Switch and Relays23
- Distribution Box in Engine Compartment R2-R1424
- Central Electronic Module (CEM) R15-R1825
- Central Electronic Module (CEM) R1-R11B26
- Other Relays27
Ground Connections Overview28
- 31/3 - 31/10 Cont29
- 31/12 - 31/66 Cont31
- Ground Connections in Chassis36
Control Modules Overview of Locations37
- Overview of Designations38
- Central Electronic Module (CEM) 1:239
- Data Communication, Low Speed CAN 1:241
- Data Communication, High Speed CAN43
- Data Communication most44
- Data Communication LIN 1:245
- Start Control Module (SCU)47
- Accessory Electronic Module (AEM)48
Group 23 Fuel System Engine Management System, 4-Cyl. 1.6L 1:249
- Tp 39129202 C30/S40 (04-)/V50/C70 (06-)49
- Engine Management System, 4-Cyl. 1.8L & 2.0L 1:251
- Engine Management System, 5-Cyl. 1:253
- Engine Management System, 5-Cyl. Turbo 1:255
- Engine Management System, Diesel, 4-Cyl. 1.6L 1:257
- Engine Management System, Diesel, 4-Cyl. 2.0L 1:259
- Engine Management System, Diesel, 4-Cyl. 2.0L MPS6 1:261
- Engine Management System, Diesel, 5-Cyl. 2.4L 1:363
- Emission Control, 4-Cyl. 1.6L66
- Emission Control, 4-Cyl. 1.8L & 2.0L67
- Emission Control, 5-Cyl68
- Emission Control, 5-Cyl. Turbo69
Group 26 Cooling System Cooling Fan70
Group 27 Engine Controls Cruise Control, 4-Cyl71
- Cruise Control, 5-Cyl72
Group 32 Alternator and Voltage Regulator Power Supply, 4-Cyl73
- Power Supply, 5-Cyl74
Group 33 Starting System Starting System, 4-Cyl75
- Starting System, 5-Cyl76
Group 35 Lighting High and Low Beam77
- Active Headlight (Bi-Xenon®) S40/V5078
- High and Low Beam (Bi-Xenon®) C30/C7079
- Running Lights/ Parking Lights, Tail Lights S40/V5080
- Running Light/Parking Light, Tail Lights (Bi-Xenon®) S40/V5081
- S40/V5081
- Running Lights/ Parking Lights, Tail Lights C30/C7082
- Running/Parking Lights, Tail Lights (Bi-Xenon®) C30/C7083
- C30/C7083
- Brake Light S40/V5084
- Brake Lights C30/C7085
- Reversing Lights S40/V5086
- Reversing Lights C30/C7087
- Fog Lights S40/V5088
- Fog Lights C30/C7089
- Fog Lights LHD Japan S40/V5090
- Fog Lights LHD Japan C30/C7091
- Follow-Me-Home Lighting92
- Interior Lighting C30/S40/V50 1:293
- Interior Lighting C70 1:295
- Instrument and Control Illumination97
- Auxiliary Lights98
Group 36 Additional Electrical Equipment99
- Direction Indicators and Hazard Warning Flashers S40/V5099
- S40/V5099
- Direction Indicator and Hazard Warning Flashers (Bi-Xenon®) S40/V50100
- Direction Indicators and Hazard Warning Flashers C30/C70101
- C30/C70101
- Direction Indicator and Hazard Warning Flashers102
- (Bi-Xenon®) C30/C70102
- Windshield Wiper/Washer103
- Headlight Washer104
- Rear Window Wiper/Washer C30/V50105
- Rain Sensor106
- Keyless Vehicle C30/S40/V50 1:2107
- Keyless Vehicle C70 1:2109
- Parking Assistance111
- Electronic Immobilizer/ Steering Column Lock Module (SCL)112
- Horn113
- Anti-Theft Alarm C30114
- Anti-Theft Alarm S40/V50115
- Anti-Theft Alarm C70116
- Alcolock117
- Accessory Electronic Module (AEM)118
Group 37 Wiring and Fuses119
- Outlet C30/S40/V50119
- Outlet C70120
- Diagnostics System121
- Tow Hitch Cable Harness, 4-Pin S40/V50122
- Tow Hitch Cable Harness, 4-Pin C30/C70123
- Tow Hitch Cable Harness, 7-Pin S40/V50124
- Tow Hitch Cable Harness, 7-Pin C30/C70125
- Tow Hitch Cable Harness, 13-Pin S40/V50/C70126
- Tow Hitch Cable Harness, 13-Pin C30127
- USB Control Module (AUU)128
Group 38 Instruments Driver Information Module129
- Seat Belt Reminder C30/S40/V50130
- Seat Belt Reminder C70131
Group 39 Other132
- Audio C30/S40/V50132
- Audio C70133
- Audio High Performance/Premium Sound C30/S40/V50 1:2134
- Audio High Performance/Premium Sound C70 1:2136
- Cellular Phone 1:2138
- Tp 39129202 C30/S40 (04-)/V50/C70 (06-)138
- Multimedia & Traffic Information140
- Satellite Radio141
- Subwoofer142
- Navigation System, Portable143
- Bluetooth144
- Bluetooth Handsfree, Internal Amplifier145
- Bluetooth Handsfree, External Amplifier146
- Bluetooth Handsfree & AUU, Internal Amplifier147
- Bluetooth Handsfree & AUU, External Amplifier148
- Bluetooth Handsfree with AEM, Internal Amplifier, LHD149
- Bluetooth Handsfree with AEM, Internal Amplifier, RHD150
- Bluetooth Handsfree with AEM, External Amplifier, LHD151
- Bluetooth Handsfree with AEM, External Amplifier, RHD152
Group 43 Transmission Automatic Transmission AW55-51153
- Transmission M66154
- Automatic Transmission MPS6155
- Differential Electronic Module (DEM), S40/V50156
Group 59 Brake System Brake Control System & STC157
- Brake Control System & DSTC158
Group 64 Steering Electronic Power Steering159
Group 83 Doors and Openings160
- Central Locking, Front Doors C30/S40/V50160
- Central Locking, Rear Doors S40/V50161
- Central Locking C70162
- Central Locking, Trunk Lid/Tailgatec30163
- Central Locking, Trunk Lid/Tailgates40/V50164
- Central Locking, Trunk Lid/Tailgatec70165
- Central Locking, Storage Compartment C70166
- Child Safety Lock S40/V50167
- Central Locking, Fuel Filler Flap168
- Signal Receiver, Central Locking C30/S40/V50169
- Signal Receiver, Central Locking C70170
- Power Windows, Front Doors C30/S40/V50171
- Power Windows C70172
- Power Windows, Rear Doors S40/V50173
- Power Sunroof C30/S40/V50174
- Power Roof C70175
Group 84 Exterior Decorative Elements, Etc176
- Power Door Mirrors C30/S40/V50176
- Power Door Mirrors C70177
- Heated Door Mirrors178
- Heated Rear Window179
- Blind Spot Information System180
Group 85 Interior Equipment181
- Power Driver's Seat with Memory Function181
- Lhd S40/V50181
- Power Driver's Seat with Memory Function182
- Rhd S40/V50182
- Power Driver's Seat with Memory Function LHD C30/C70183
- Power Driver's Seat with Memory Function RHD C30/C70184
- Power Passenger Seat with Memory Function LHD C30/C70185
- Power Passenger Seat with Memory Function RHD C30/C70186
- Power Driver's Seat LHD S40/V50187
- Power Driver's Seat RHD S40/V50188
- Power Passenger Seat LHD S40/V50189
- Power Passenger Seat RHD S40/V50190
- Heated Seats191
Group 87 Climate Control System Climate Control System, 4-Cyl. Gasoline 1:2192
- Climate Control System, Diesel 1.6L & 2.0L 1:2194
- Climate Control System, 5-Cyl. 1:2196
- Climate Control System PTC Element198
- Parking Heater, Auxiliary Heater199
- Relay, Electric Engine Heater200
- Electric Engine Heater Flexifuel201
Group 88 Internal Equipment Supplemental Restraint System (SRS) C30/S40/V50 1:2202
- Supplemental Restraint System (SRS) C70 1:2204
- Remote Garage Opening206
- Auto-Dimming Rearview Mirror207
Connectors208
Branching Points250
- Tp 39129202 C30/S40 (04-)/V50/C70 (06-)250
Routing of Harnesses in the Car Engine Harness, Gasoline 4-Cyl. 1.6262
- Engine Harness, Gasoline 4-Cyl. 1.8262
- Engine Harness, Gasoline 5-Cyl263
- Engine Harness, Gasoline 5-Cyl. Turbo263
- Engine Harness, Diesel 1.6L264
- Engine Harness, Diesel 2.0L264
- Engine Harness, Diesel 2.4L265
- Engine Compartment Harness, 4-Cyl266
- Engine Compartment Harness, 5-Cyl266
- Dashboard Harness, LHD267
- Dashboard Harness, RHD267
- Floor Harness, C30 LHD268
- Floor Harness, C30 RHD269
- Floor Harness, S40 LHD270
- Floor Harness, S40 RHD271
- Floor Harness, V50 LHD272
- Floor Harness, V50 RHD273
- Floor Harness, C70 LHD274
- Floor Harness, C70 RHD275
- Roof Harness, C30276
- Roof Harness, S40276
- Roof Harness, V50277
- Roof Harness, C70277
- Tunnel Harness, C30/S40/V50278
- Tunnel Harness, C70278
- Driver's Door Harness, C30279
- Passenger Door Harness, C30279
- Driver's Door Harness, S40/V50280
- Passenger Door Harness, S40/V50280
- Driver's Door Harness, C70281
- Driver's Door Harness Supplement, C70281
- Passenger Door Harness, C70282
- Passenger Door Harness Supplement, C70282
- Rear Door Harness, Right S40/V50283
- Left, Rear Door Harness S40/V50283
- Rear Side Panel Harness, Left C70284
- Right, Rear Side Panel Harness C70284
- Trunk Lid/Tailgate Harness, C30285
- Trunk Lid/Tailgate Harness, S40285
- Trunk Lid/Tailgate Harness, V50286
- Trunk Lid/Tailgate Harness, C70286
Component Illustrations287
Index 1:2343
- Table of Contents344
List of Components 1:7345
